Vulcan 3VK85AF Gas Fryer - (3) 90 lb Vats, Floor Model, Natural Gas

To minimize the risk of flavor transfer, accommodate products' specific frying requirements, and fry multiple products at once, the Vulcan 3VK85AF PowerFry5™ high-efficiency gas fryer is built with three 90-pound-capacity frypots featuring independent analog knob controls. Staff can set each vat's temperatures between 200 and 390 degrees Fahrenheit and choose from various fat-melt modes. To save energy, it uses the FivePass™ heat transfer system, which guides heat throughout oil, and the SoftStart™ ignition system that outputs 135,000 BTUs per hour to quickly heat oil. Once the set temperatures are reached, the idle temperature mode maintains heat by outputting only 18,894 BTUs per hour.

The frypots include twin fryer baskets that keep foods contained as they're lowered in the vats, fried, and lifted. To reduce the risk of heat-transfer-related burns, the fryer baskets' handles are coated with plastic. For additional user comfort, this 63-inch-wide by 30¹³⁄₁₀₀-inch-deep by 47¹⁄₄-inch-tall unit lends a 36¹⁄₄-inch working height. Its stainless steel body and vats resist rust, corrosion, dents, and scratches throughout high-volume use and are simple to wipe clean. To move the unit short distances when cleaning or maintenance is required, it's fitted with four 6-inch casters, two of which can be locked to secure the unit in place.

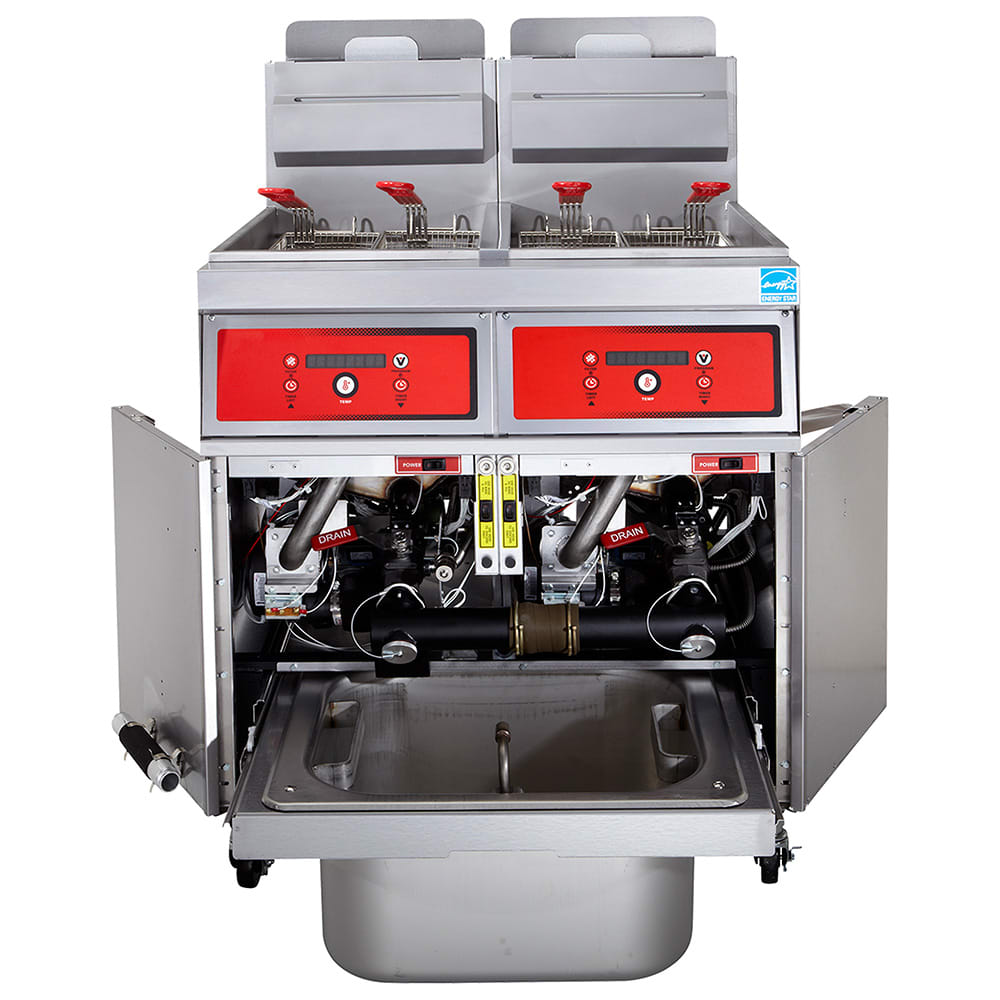

The KleenScreen PLUS® filtration system is positioned on a pull-out drawer in the base of the Vulcan 3VK85AF commercial fryer to enhance accessibility for removing spent oil. This system is comprised of a removable, 110-pound-capacity stainless steel filtration pan, a drain interlock valve that shuts off the gas burners as oil drains, and a ¹⁄₃-horsepower motor and pump that circulate hot oil at 8 gallons per minute. With the push of a button, the unit will filter oil through the stainless steel mesh screen, which provides a filtration area as large as 350 square inches. Once oil is filtered, the oil-return tube can direct it back to the tanks to save time and manual labor.

Product Details

• Part of the PowerFry5 VK85 line
• 3-battery configuration
• 36¹⁄₄-in. working height
• (3) 90-lb. frypots
• Stainless steel frypots, cabinet, and fryer baskets resist rust, corrosion, and wear
• 6 fryer baskets featuring plastic-coated handles (2 per frypot)
• (4) 6-in. adjustable casters (2 can be locked for stability)

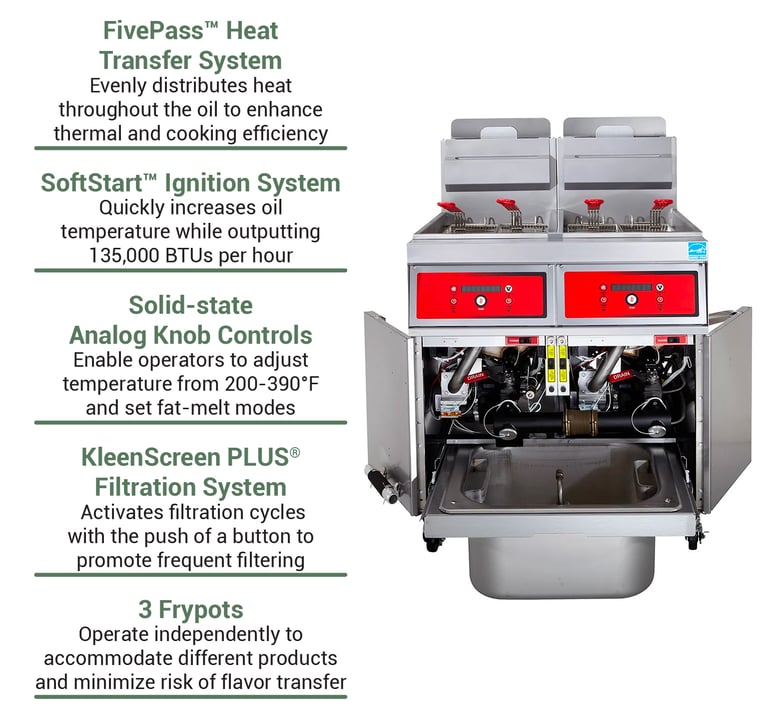

• FivePass heat transfer system effectively distributes heat throughout oil
• SoftStart ignition system quickly warms oil while outputting 135,000 BTUs per hour
• Idle temperature mode outputs just 18,894 BTUs per hour to sustain set temperature
• Flue temperature doesn't exceed 500 degrees F at maximum production rate
• Hi-limit shutoff
• Comes with tank brush and clean-out rod
• 1¹⁄₄-in. full-port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (3) 90,000 BTU

Solid-state Analog Knob Controls

• Matchless electronic ignition
• Operating temperature range: 200-390 degrees F
• Selectable fat-melt modes

Filtration System Details

• Assembled on a pull-out base drawer
• 110-lb.-capacity stainless steel filtration pan
• Stainless steel mesh filter screen can filter areas from 270-350 sq. in.
• Filtration system can be activated with the push of a button
• Pump and motor circulate oil at 8 GPM
• Drain valve interlock switch automatically turns off burners while oil is drained
• Hands-free oil-return tube adds oil back to the tanks when drawer is shut

Dimensions & Utilities

• 63 in. W x 30¹³⁄₁₀₀ in. D (50¹⁄₄ in. D when doors are opened) x 47¹⁄₄ in. H
• 7 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 3VK85AF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 63" W, (3) battery, 85-90 lbs. capacity per vat, solid state analog knob control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 270,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 3VK85AF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	90000
Capacity (lbs)	270
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	NG
NEMA	5-15P
Number of Fry Pots	3
Oil Capacity (lb)	270
Oil Capacity/Fryer (lb)	90
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry5™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	63
Weight	968.00
