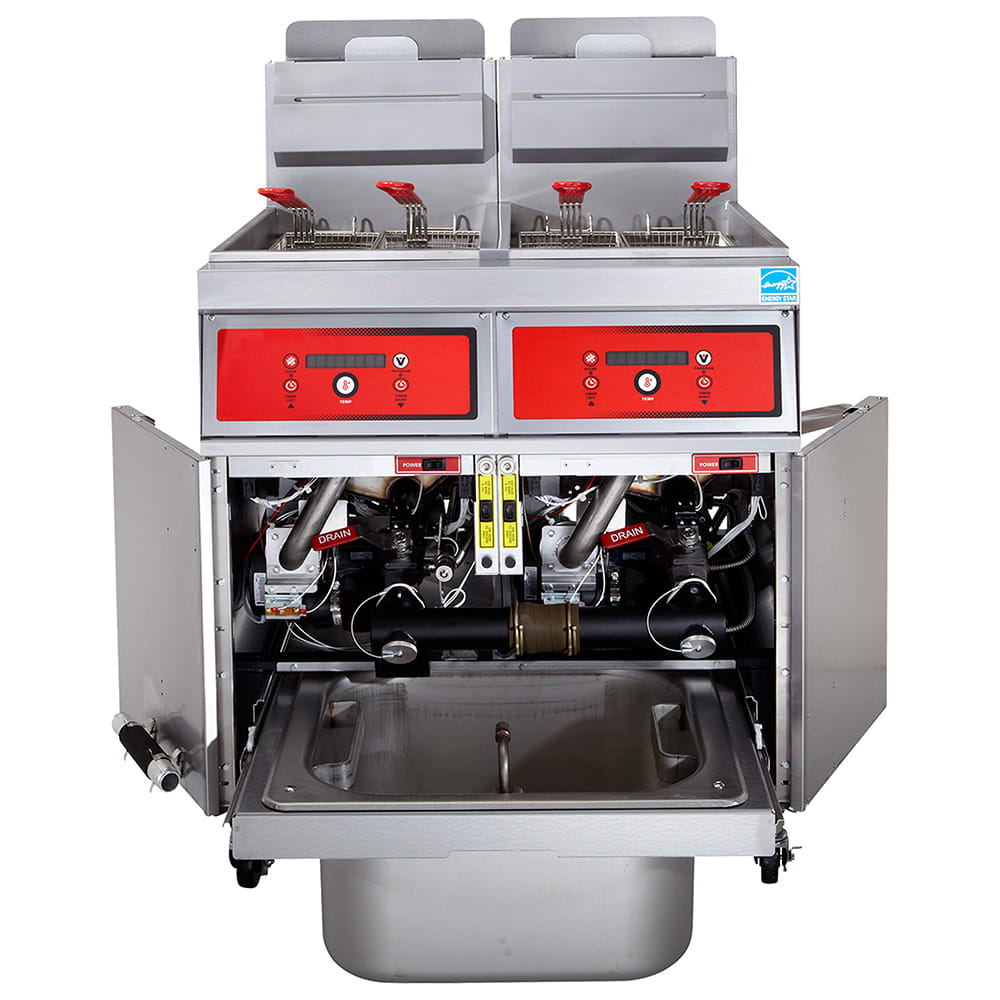

Vulcan 3VK65CF Gas Fryer - (3) 70 lb Vats, Floor Model, Liquid Propane

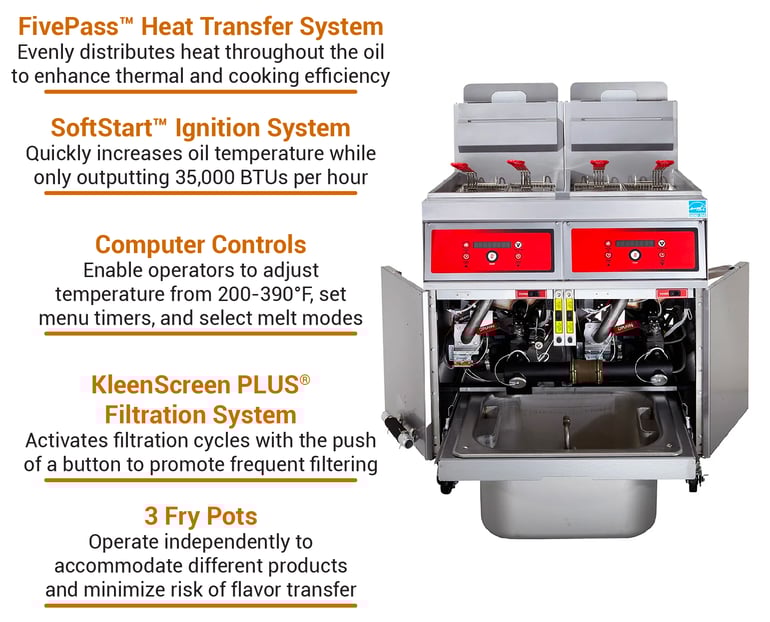

The Vulcan 3VK65CF PowerFry5™ commercial gas fryer's three 70-pound-capacity frypots are equipped with independent computer controls that enable operators to set each frypot's temperature, timer, and melt mode to properly fry different products in each vat. As many as 10 menu items can be programmed directly into the unit or offline to streamline unit setup for commonly cooked items, and the digital display provides a readout of the cook time and item name. To quickly reach set temperatures between 200 and 390 degrees Fahrenheit, the SoftStart™ ignition system outputs 40,000 BTUs per hour; when the frypot reaches the set temperature, the idle temperature setting maintains heat by outputting just 4,802 BTUs per hour to save energy. For enhanced thermal and cooking efficiency, its FivePass™ heat transfer system evenly disperses heat throughout the oil.

This 63-inch-wide by 30¹⁄₈-inch-deep by 47¹⁄₈-inch-tall fryer creates a 36¹⁄₄-inch working height for staff comfort during long work periods. The included fryer baskets simplify lowering and lifting breaded meats or vegetables, while their handles are coated in plastic to reduce heat transfer and protect hands. For long-term durability and rust, dent, and scratch resistance, the frypots, fryer baskets, and cabinets are constructed of stainless steel. When the fryer needs to be repositioned for maintenance or cleaning, it's simple to move short distances because it's fitted with four 6-inch casters—two of which can be locked.

The Vulcan 3VK65CF commercial gas fryer's base includes a KleenScreen PLUS® filtration system on an accessible pull-out drawer. A filtration cycle can be activated with the push of a button, and the motor and pump will circulate shortening at 8 gallons per minute. The stainless steel mesh screen filters from two sides to establish a 350-square-inch filtration area, and as much as 110 pounds of oil can be expelled into the seamless, lightweight stainless steel filtration pan. The oil-return tube can direct filtered oil back to the frypots when the oil is fully filtered and the filter drawer is closed.

Product Details

• Part of the PowerFry5 line
• 3-battery freestanding unit featuring (3) 70-lb. frypots
• Stainless steel cabinet, frypots, and baskets
• 6 fryer baskets with plastic-coated handles per frypot (2 per frypot)
• 36¹⁄₄-in. working height
• (4) 6-in. adjustable casters (2 with locks)
• FivePass heat transfer system yields 68 percent cooking efficiency and 78 percent thermal efficiency
• SoftStart ignition system heats oil quickly while outputting 40,000 BTUs
• Idle temperature mode maintains set temperature at just 4,802 BTUs per hour
• Flue temperature doesn't exceed 500 degrees F at maximum production rate
• Hi-limit shutoff
• 1¹⁄₄-in. port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (3) 80,000 BTU

Computer Controls

• Operating temperature range: 200-390 degrees F
• Fahrenheit or Celsius digital character display
• 10 menu timers display product name and cook time
• Items can be programmed offline using a USB interface (software included)
• Electronic ignition
• Can cook with compensating time or actual time
• 3 melt modes

Filtration System Details

• Pull-out drawer assembly
• 110-lb.-capacity stainless steel filter pan
• Stainless steel mesh filter screen establishes filter area from 270-350 sq. in.
• Filtration cycle activated with push of a button
• Pump and motor circulate oil at 8 GPM
• Drain valve interlock switch automatically turns off burners during oil draining
• Hands-free oil-return tube adds oil back to tanks

Dimensions & Utilities

• 63 in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• 7 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by LP gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 3VK65CF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 63" W, (3) battery, 65-70 lbs. capacity per vat, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 240,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 3VK65CF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
