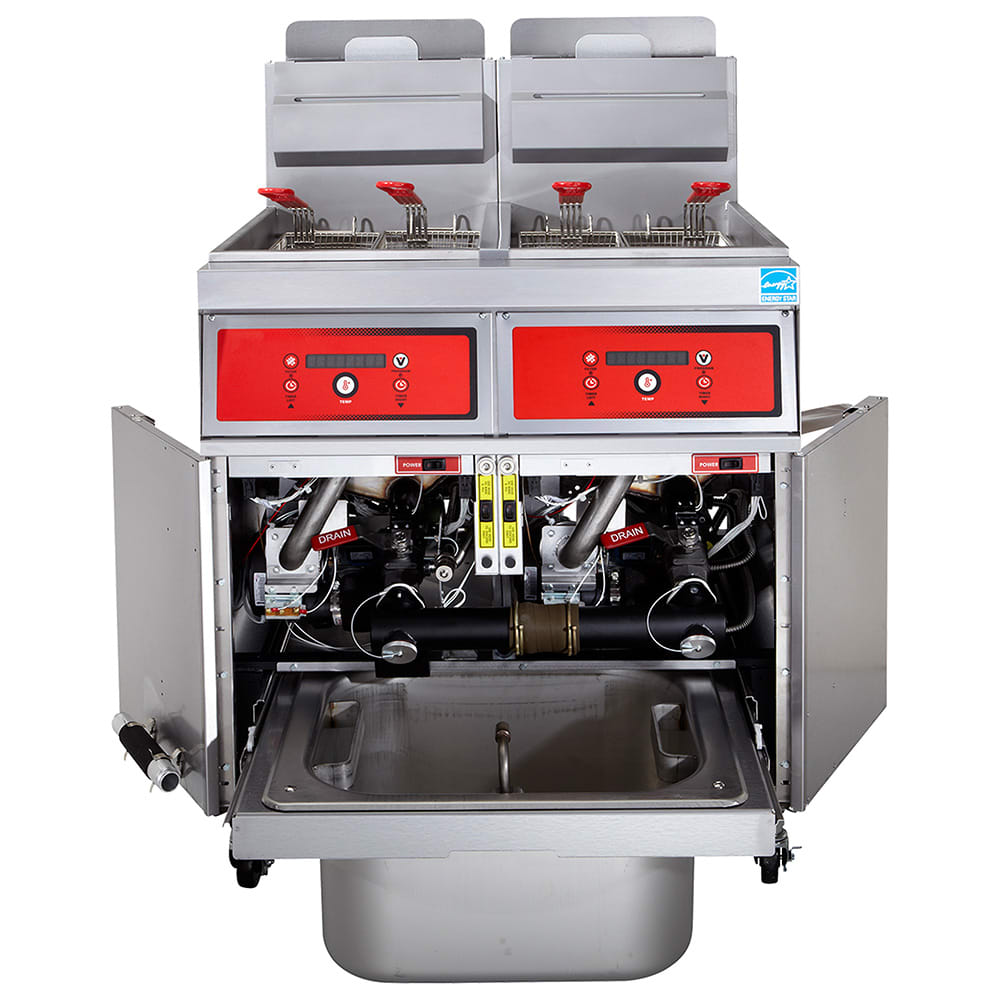

Vulcan 3VK65AF Gas Fryer - (3) 70 lb Vats, Floor Model, Liquid Propane

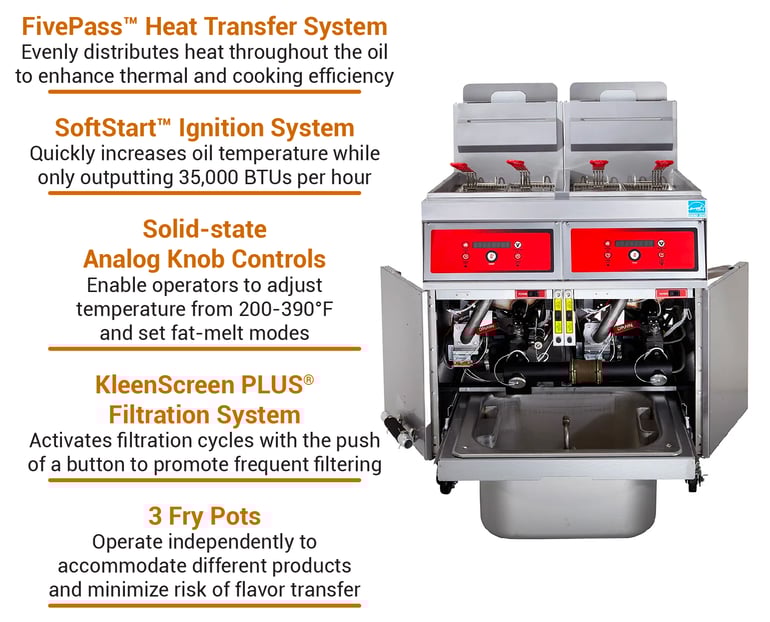

Because the Vulcan 3VK65AF commercial gas fryer is part of the PowerFry5™ collection, it's built with the FivePass™ heat transfer system—a mechanism that evenly distributes heat throughout the oil to yield 68 percent cooking efficiency and 78 percent thermal efficiency. As a result, this component reduces cooking and recovery times. To maximize throughput, this fryer is built with three 70-pound-capacity vats. Each vat comes with twin fryer baskets to keep contents contained during the frying process; the baskets' plastic-coated handles minimize heat transfer for user safety.

Users can set temperatures between 200 and 390 degrees Fahrenheit and select fat-melt modes with the analog knob controls located behind the cabinet doors. Because each vat has a separate control, foods with different requirements can be cooked simultaneously; the multi-vat design also eliminates the risk of flavor transfer. The SoftStart™ ignition system quickly heats oil while only outputting 40,000 BTUs per hour—half the unit's maximum hourly BTU output. Once the set temperature is reached, the idle temperature mode maintains temperatures by outputting 4,802 BTUs per hour for additional energy savings.

The Vulcan 3VK65AF high-efficiency, three-battery gas fryer measures 63 inches wide by 30¹⁄₈ inches deep by 47¹⁄₈ inches tall and is fitted with four 6-inch casters that provide smooth mobility; two casters can be locked to park the unit when necessary. For durability and corrosion resistance, it's made of stainless steel that matches other back-of-house equipment and can simply be wiped clean as needed. The KleenScreen PLUS® filtration system built into the base can be activated with the push of a button. Its stainless steel mesh filter screen filters from two sides as the pump and motor circulate oil at an 8-gallon-per-minute rate. The filtration pan can hold 110 pounds of oil, and the oil-return tube automatically sends filtered oil back to the frypots when the filter drawer is closed.

Product Details

• Part of the PowerFry5 collection
• Freestanding model with (3) 70-lb. fry tanks
• Durable, rust- and corrosion-resistant stainless steel cabinet, frypots, and fryer baskets
• 6 fryer baskets with plastic-coated handles (2 baskets per frypot)
• (4) 6-in. adjustable casters (2 can be locked)
• SoftStart ignition system outputs 40,000 BTUs to heat oil quickly while saving energy
• FivePass heat transfer system yields 68 percent cooking and 78 percent thermal efficiency
• Energy-efficient idle temperature setting only outputs 4,802 BTUs per hour
• Flue temperature remains below 500 degrees F at maximum production rate
• Hi-limit shutoff feature
• Clean-out rod for drain and tank brush included
• 1¹⁄₄-in. port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (3) 80,000 BTU

Solid-state Analog Knob Controls

• Separate solid-state analog knob controls located behind the cabinet doors for each fry tank
• Electronic ignition
• Operating temperature range: 200-390 degrees F
• User-selectable fat-melt modes

Filtration System Details

• 1-touch button activation
• Pump and motor circulate oil at 8 GPM
• Stainless steel mesh filter establishes 270-350-sq.-in. filtration area
• 18-ga. stainless steel filtration pan features 110-lb. oil capacity
• Drain valve interlock switch
• Hands-free oil-return tube

Dimensions & Utilities

• 63 in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• 7 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by LP gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 3VK65AF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 63" W, (3) battery, 65-70 lbs. capacity per vat, solid state analog knob control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 240,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 3VK65AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
