Vulcan 3VK45AF Gas Fryer - (3) 50 lb Vats, Floor Model, Liquid Propane

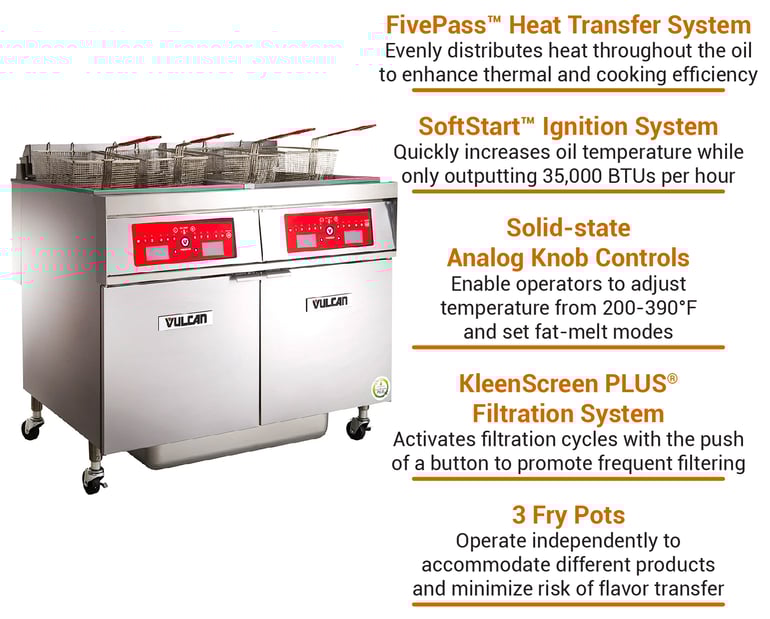

Comprised of three 50-pound-capacity vats, the Vulcan 3VK45AF PowerFry5™ commercial floor fryer can cook large volumes of shrimp, fish, chicken, and potatoes. Each frypot comes with twin fryer baskets that securely contain foods during frying. To reduce heat transfer, the baskets' handles are coated with plastic. Users can set temperatures from 200 to 390 degrees Fahrenheit with the solid-state analog knob controls and initiate one of three melt cycles if using solid shortening. By efficiently distributing heat throughout the oil, the FivePass™ heat transfer system reduces cook time, decreases lag time for recovery, and yields 78 percent thermal efficiency and 66 percent cooking efficiency. To reduce the risk of scorching oil, the SoftStart™ ignition system heats oil by outputting 35,000 BTUs per hour. The idle temperature mode maintains heat by only outputting 4,251 BTUs per hour to save energy, and to maintain a comfortable working environment, the flue will remain below 500 degrees Fahrenheit at maximum production rate.

The KleenScreen PLUS® filtration unit is built into the bottom of the Vulcan 3VK45AF efficient gas fryer; because it operates with the push of a button, it promotes frequent filtering. This system is designed to be used twice per day, and its motor and pump circulate 8 gallons of oil per minute to expedite the process. Its seamless stainless steel oil pan can hold 70 pounds of oil, while its stainless steel mesh filter screen filters from two sides, establishing a 270-to-350-square-inch filtration area. To minimize time-consuming manual tasks, the oil-return tube adds filtered shortening back to the frypots when the drawer is closed. This 46¹⁄₂-inch-wide by 30¹⁄₈-inch-deep by 47¹⁄₈-inch-tall unit is built to endure high-volume back-of-house use because it's made of scratch-, rust-, and dent-resistant stainless steel. It's positioned on four casters—two of which can lock for stability—so operators can transport the unit for maintenance or cleaning and secure it in place as needed.

Product Details

• Part of the PowerFry5 series
• (3) 50-lb. fry tanks
• Stainless steel construction for long-term durability
• 6 fryer baskets with plastic-coated handles (2 per frypot)
• (4) 6-in. adjustable casters (2 locking)
• SoftStart ignition system warms oil by outputting 35,000 BTUs
• FivePass heat transfer system enhances thermal and cooking efficiency
• Idle temperature mode maintains set heat at 4,251 BTUs per hour
• Flue temperature doesn't exceed 500 degrees F at maximum production rate
• Hi-limit shutoff mechanism
• Includes tank brush and clean-out rod
• 1¹⁄₄-in. port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (3) 70,000 BTU

Solid-state Analog Knob Controls

• Separate solid-state analog knob controls for each fry tank
• Located behind the cabinet doors
• Electronic ignition
• Operating temperature range: 200-390 degrees F
• Fat-melt mode can be user selected

Filtration System Details

• Seamless, lightweight 18-ga. stainless steel filtration pan with 70-lb. oil capacity
• Stainless steel mesh filter with 270-350-sq.-in. filtration area
• Pump and motor circulate oil at 8 GPM
• 1-touch button initiates filtration cycle
• Drain valve interlock switch
• Hands-free oil-return tube

Dimensions & Utilities

• 46¹⁄₂ in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• 7 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by LP gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 3VK45AF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 46-1/2" W, (3) battery, 45-50 lbs. capacity per vat, solid state analog knob control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 210,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 3VK45AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
