Vulcan 3TR85DF Gas Fryer - (3) 90 lb Vats, Floor Model, Liquid Propane

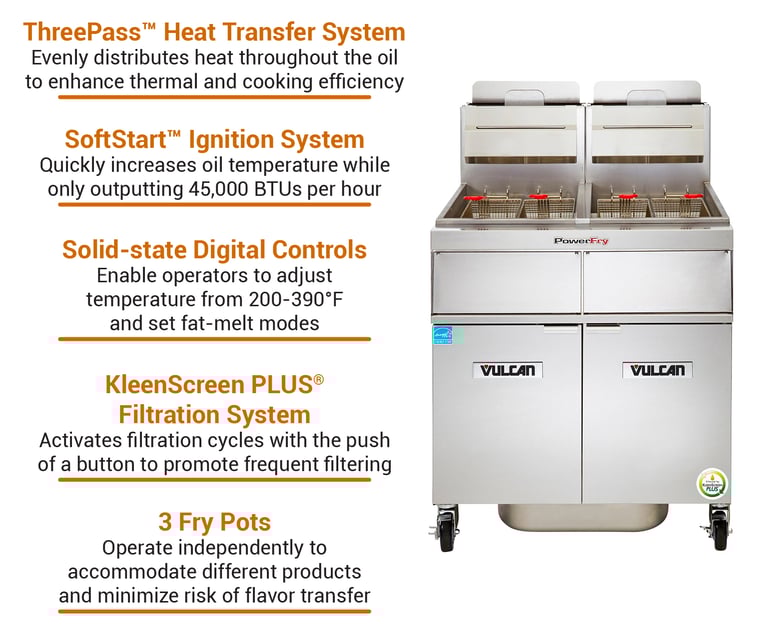

The Vulcan 3TR85DF floor model gas fryer measures 63 inches wide by 34³⁄₈ inches deep by 47¹⁄₈ inches tall, creates a 36¹⁄₄-inch-tall working height, and is divided into three fry tanks. Each frypot can hold 90 pounds of oil and includes twin fryer baskets with plastic-coated handles to reduce scalding risks when employees submerge or remove breaded meats or vegetables. The frypots and cabinet are made of stainless steel—rugged, rust- and corrosion-resistant metal that matches most back-of-house equipment and simplifies cleaning. Its base is mounted on four 6-inch casters, two of which can lock, for smooth mobility and stabilization as needed.

With the solid-state digital controls, operators can set each fryer's temperature between 200 and 390 degrees Fahrenheit, choose from three fat-melt modes, activate two countdown timers, cook with actual or compensating time, and activate an automatic boil-out mode. A digital display provides readouts of temperatures in Fahrenheit and Celsius so users can ensure the fryers are set to the appropriate temperatures. Once temperatures and other controls are set, the SoftStart™ ignition system heats oil at just 45,000 BTUs per hour per vat; the ThreePass™ heat transfer system uniformly distributes the oil to enhance cooking and thermal efficiency while reducing lag times during recovery. To maintain set heat, the idle temperature setting only outputs 5,575 BTUs per hour.

Located in the base of the Vulcan 3TR85DF PowerFry3™ high-efficiency fryer the KleenScreen PLUS® filtration system's pump and motor can circulate 8 gallons of hot oil per minute with the push of a button. Its stainless steel filter screen filters debris and particulate from two sides, establishing a filtration area from 270 to 350 square inches; its filtration pan can hold 110 pounds of oil. Once the oil is filtered, it can be guided back to the fry tanks with the oil-return tube.

Product Details

• Part of the PowerFry3 collection
• (3) 90-lb. frypots
• Stainless steel cabinet and frypots
• 2 fryer baskets with plastic-coated handles per frypot (6 total)
• (4) 6-in. adjustable casters (2 with locks)
• SoftStart ignition system heats oil by outputting 45,000 BTUs per hour per frypot
• ThreePass heat transfer system evenly distributes heat through oil
• Idle temperature mode outputs 5,575 BTUs per hour to maintain set heat
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff mechanism
• Includes tank brush and clean-out rod
• 1¹⁄₄-in. port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (3) 90,000 BTU

Solid-state Digital Controls

• Electronic matchless ignition
• Digital character display in Fahrenheit or Celsius
• Operating temperature range: 200-390 degrees F
• 3 melt modes
• 2 countdown timers
• Automatic boil-out mode
• Cooks with compensating time or actual time

Filtration System Details

• Stainless steel mesh filter featuring 270-350-sq.-in. filtration area
• 8-GPM motor and pump
• 1-touch button activates pump and motor
• Drain valve interlock switch automatically shuts burners down when drain valve is opened
• 18-ga. stainless steel filtration pan with 110-lb. oil capacity
• Hands-free oil-return tube

Dimensions & Utilities

• 63 in. W x 34³⁄₈ in. D x 47¹⁄₈ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by LP gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 3TR85DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 63" W, (3) battery, 85-90 lbs. capacity per vat, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 270,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 3TR85DF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
