Vulcan 3TR85CF Gas Fryer - (3) 90 lb Vats, Floor Model, Natural Gas

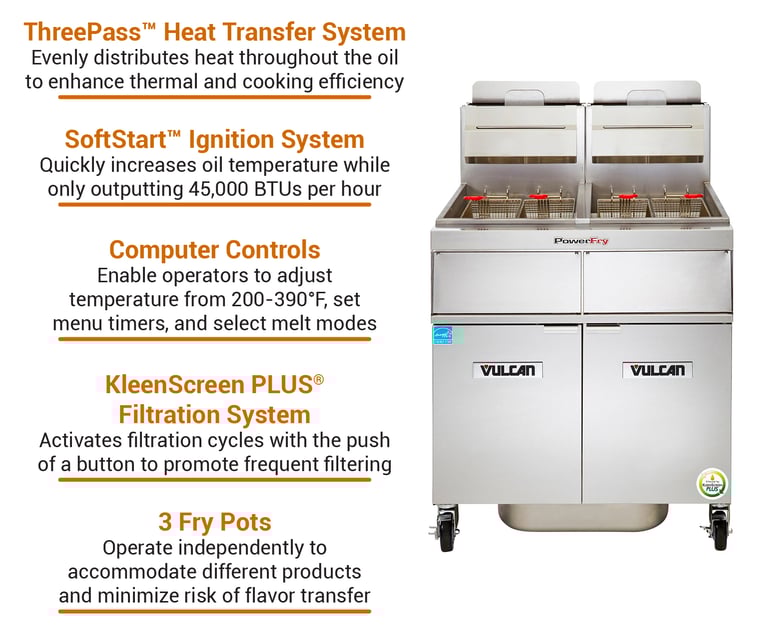

The Vulcan 3TR85CF PowerFry3™ high-efficiency gas fryer is divided into three 90-pound-capacity vats with independent computer controls so different breaded foods can be fried at specific temperatures simultaneously. Staff can electrically ignite each fryer to streamline setup, then set the temperature from 200 to 390 degrees Fahrenheit, initiate one of the three fat-melt modes, and choose to cook with actual or compensating time. Common menu items, and their cook times, can be programmed into the system using a USB interface. The digital display provides temperature readouts in Celsius and Fahrenheit so users can ensure the fryers are set to the correct heat. To enhance efficiency and save energy, this unit's ThreePass™ heat transfer system evenly disperses heat throughout the oil, while the SoftStart™ ignition system rapidly warms oil while only outputting half of the unit's maximum hourly BTU output. Once the unit reaches the set temperature, the idle temperature mode only outputs 5,575 BTUs per hour.

This commercial fryer system's fryer baskets secure chicken, tofu, dumplings, fish, and vegetables in place during frying; to reduce heat transfer and enhance employee safety, their handles are coated with plastic. For user comfort, this 63-inch-wide by 34³⁄₈-inch-deep by 47¹⁄₈-inch-tall piece establishes a 36¹⁄₄-inch working height. Its cabinet and frypots are made of durable, rust- and dent-resistant stainless steel to withstand high-volume back-of-house use, and because it's positioned on four 6-inch casters, it's simple to transport for cleaning or maintenance. Two of the casters feature locks to secure it in place during operation.

The Vulcan 3TR85CF commercial gas fryer is built with a KleenScreen PLUS® filtration system on a pull-out base drawer. For simple, hands-free filtration, its motor and pump can be activated with the push of a button, circulating 8 gallons of oil per minute. Its stainless steel mesh screen filters out particulates from two sides; once the oil is filtered, it can be directed back to the frypots with the oil-return tube when the filtration drawer is pushed in.

Product Details

• Part of the PowerFry3 series
• (3) 90-lb. frypots
• SoftStart ignition system outputs 45,000 BTUs per hour to save energy during initial heating
• Energy-efficient ThreePass mechanism yields 72 percent thermal efficiency and 60 percent cooking efficiency
• Idle temperature setting outputs 5,575 BTUs per hour per vat to maintain heat
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff mechanism
• Durable, bend- and rust-resistant stainless steel
• 6 fryer baskets featuring plastic-coated handles
• Includes tank brush and clean-out rod
• 1¹⁄₄-in. port ball-type drain valve
• (4) 6-in. adjustable casters (2 can be locked)
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (3) 90,000 BTU

Computer Controls

• Electronic ignition
• Operating temperature range: 200-390 degrees F
• Fahrenheit or Celsius digital display
• Can cook with compensating time or actual time
• 3 melt modes
• 10 menu timers display product name and cook time
• Items can be programmed offline using USB interface (software included)

Filtration System Details

• Stainless steel mesh filter with 270-350-sq.-in. filtration area
• 1-touch button activates motor and pump
• Drain valve interlock switch turns off burners when drain valve is opened
• 110-lb.-capacity 18-ga. stainless steel filtration pan
• 8-GPM motor and pump
• Oil-return tube is hands free

Dimensions & Utilities

• 63 in. W x 34³⁄₈ in. D x 47¹⁄₈ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 3TR85CF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 63" W, (3) battery, 85-90 lbs. capacity per vat, programmable computer control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 270,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 3TR85CF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
