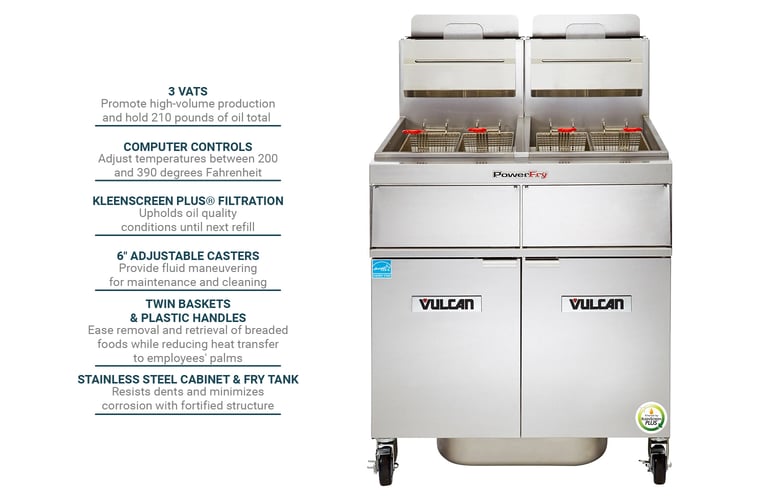

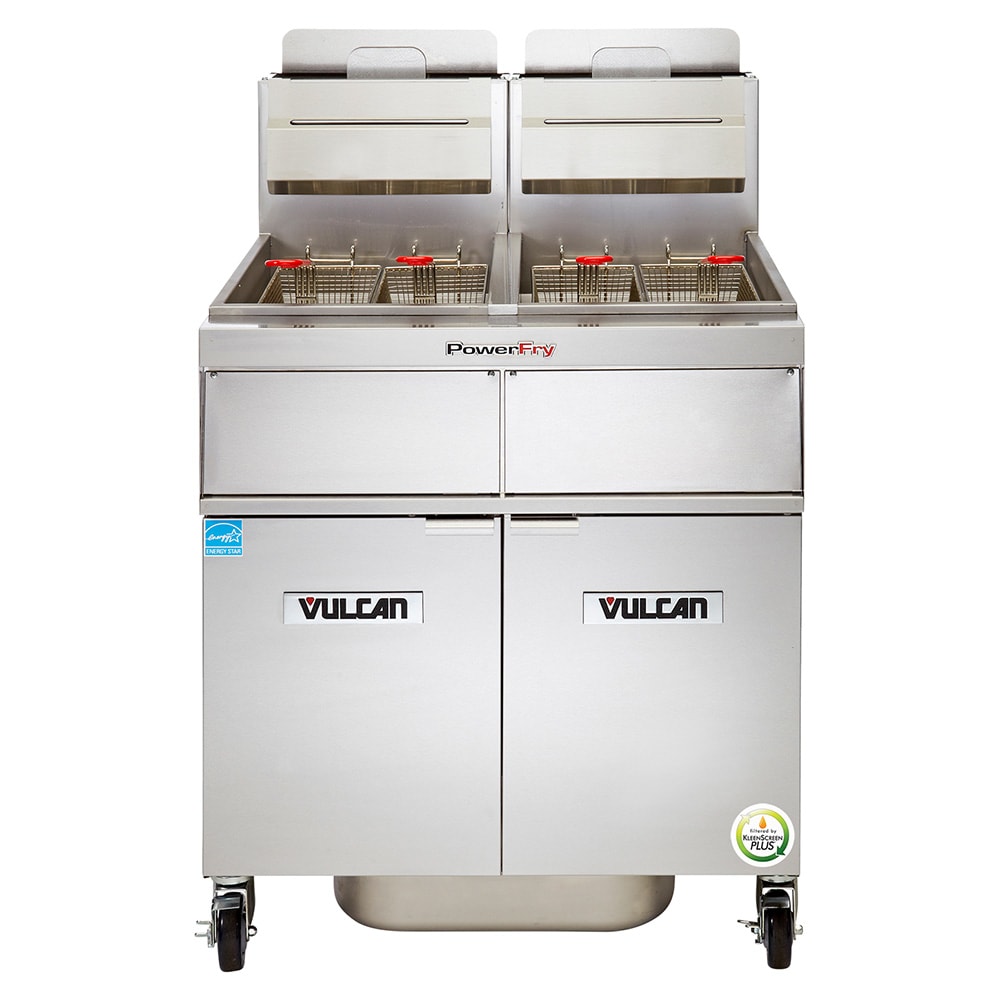

Vulcan 3TR65DF Gas Fryer - (3) 70 lb Vats, Floor Model, Natural Gas

To prevent scorching while conserving energy , the Vulcan 3TR65DF natural gas fryer features a SoftStart™ electronic ignition that lowers energy output to 240,000 BTU per hour during startup—half of the unit's overall BTU output. This three-battery unit can hold 65 to 70 pounds of oil per vat, and its KleenScreen PLUS® filtration system stains oil through a stainless steel mesh screen to remove particulate and sediment. To cook fries, mozzarella sticks, chicken, fish, and other breaded meats, it can create temperatures between 200 and 390 degrees Fahrenheit. Its ThreePass™ heat transfer system evenly distributes heat throughout oil with 72 percent thermal efficiency and 60 percent cooking efficiency. For accuracy, employees can utilize its two countdown timers that can display actual or compensating time to account for temperature fluctuations.

Overall, the Vulcan 3TR65DF gas fryer measures 63 inches wide by 30¹/₈ inches deep by 47¹/₄ inches high. Because its cabinet and fry tank are made of stainless steel, it's durable and corrosion resistant. To hold the included 9¹/₄-inch-wide by 13¹/₄-inch-deep by 6-inch-high twin baskets, its fry tanks measure 19¹/₂ inches wide by 14 inches deep. This unit sits on 6-inch casters, so it can be wheeled out of the way for cleaning the floor underneath. To further simplify cleaning, it includes a tank brush and clean-out rod and features an auto boil-out mode.

Product Details

• Part of the PowerFry3™ series
• 3 fryers
• Per fryer capacity: 65-70 lb. (195-210 lb. total)
• (4) 6-in. adjustable casters
• Stainless steel cabinet and fry tank
• Twin baskets feature plastic-coated handles
• Maintains cooking temperatures with just 5,083 BTU per hour when idle
• Includes tank brush and clean-out rod

Heat System Details

• Temperature range: 200-390 degrees Fahrenheit
• Solid-state digital control with melt cycles
• 2 countdown timers can track compensating or actual time
• ThreePass heat transfer system
• SoftStart electronic ignition system

Built-in Filtration System

• KleenScreen PLUS filtration system
• 18-ga. stainless steel filter pan
• Stainless steel filter mesh screen
• 1¹/₄-in. port ball type drain valve
• Auto boil-out mode
• Interlock switch

Dimensions & Utilities

• Twin baskets: 9¹/₄ in. W x 13¹/₄ in. D x 6 in. H
• Fry tanks: 19¹/₂ in. W x 14 in. D
• Overall: 63 in. W x 30¹/₈ in. D x 47¹/₄ in. H
• 6 A, 1/₃ HP
• 115 V/60 Hz/1 ph
• Natural gas powered
• 240,000 BTU

Product Features

*Free shipping on Vulcan 3TR65DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 63" W, (3) battery, 65-70 lbs. capacity per vat, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 240,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 3TR65DF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	80000
Capacity (lbs)	210
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	NG
NEMA	5-15P
Number of Fry Pots	3
Oil Capacity (lb)	210
Oil Capacity/Fryer (lb)	70
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry3™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	63
Weight	916.00
