Vulcan 3TR65DF Gas Fryer - (3) 70 lb Vats, Floor Model, Liquid Propane

With an integrated KleenScreen PLUS® filtration system, the Vulcan 3TR65DF gas fryer prevents premature oil replacement. When activated with its one-touch push button, this filtration system circulates 8 gallons of hot frying compound per minute through a stainless steel mesh screen to remove particulate that could affect oil taste. This fryer can produce temperatures between 200 and 390 degrees Fahrenheit and is adjusted with solid-state digital controls. Its two countdown timers can monitor actual or compensating time to account for temperature fluctuations, and for even heating, its ThreePass™ heat transfer system yields 60 percent cooking efficiency and 72 percent thermal efficiency. This system outputs 240,000 BTU total, but with its SoftStart™ electronic ignition, it conserves energy by outputting only 120,000 BTU per hour. When idle, each vat requires just 5,083 BTU per hour to maintain cooking temperatures.

Overall, the Vulcan 3TR65DF gas fryer measures 46¹/₂ inches wide by 30¹/₈ inches deep by 47¹/₄ inches high. Its cabinet and fry tank are constructed of stainless steel to fortify its structure, and because each vat measures 19¹/₂ inches wide by 14 inches deep, they can hold the included twin baskets to ease cooking. This unit includes a 1¹/₄-inch ball type drain valve to remove used oil, and for cleaning, it has a tank brush and clean-out rod. Because this heavy-duty fryer sits on 6-inch adjustable casters, it can be maneuvered with little difficulty.

Product Details

• Part of the PowerFry3™ series
• 3 fry pots
• Capacity per frypot: 65-70 lb.
• Total capacity: 195-210 lb.
• Stainless steel cabinet and fry tank
• Twin baskets feature plastic-coated handles
• Uses 5,083 BTU per hour when idle
• (4) 6-in. adjustable casters
• Includes tank brush and clean-out rod

Heat System Details

• Temperature range: 200-390 degrees F
• Solid-state digital control with melt cycles
• 2 countdown timers
• ThreePass heat transfer system
• SoftStart electric ignition system

Built-in Filtration System

• KleenScreen PLUS filtration system
• 18-ga. stainless steel filter pan
• Stainless steel filter mesh screen
• 1¹/₄-in. port ball type drain valve
• Interlock switch
• Auto boil-out mode

Dimensions & Utilities

• Twin baskets: 9¹/₄ in. W x 13¹/₄ in. D x 6 in. H
• Fry tanks: 19¹/₂ in. W x 14 in. D
• Overall: 63 in. W x 30¹/₈ in. D x 47¹/₄ in. H
• 6 A, 1/₃ HP
• 115 V/60 Hz/1 ph
• LP gas powered
• 240,000 BTU

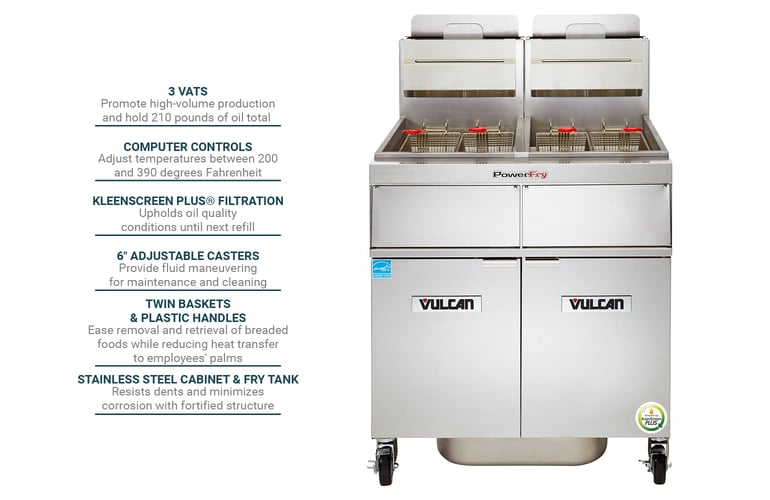

Product Features

*Free shipping on Vulcan 3TR65DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 63" W, (3) battery, 65-70 lbs. capacity per vat, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 240,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 3TR65DF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	80000
Capacity (lbs)	210
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	LP
NEMA	5-15P
Number of Fry Pots	3
Oil Capacity (lb)	210
Oil Capacity/Fryer (lb)	70
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry3™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	63
Weight	916.00
