Vulcan 3TR65AF Gas Fryer - (3) 70 lb Vats, Floor Model, Liquid Propane
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $100,706.65
$41,456.00 /Each
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 3TR65AF Description
Part of the PowerFry3™ series, the Vulcan 3TR65AF gas fryer is a three-battery unit that holds 65 to 70 pounds of oil per vat. While it outputs 210,000 BTU total, it lowers output to 105,000 BTU per hour during startup to conserve energy and prevent scorching. Meanwhile, its ThreePass™ heat transfer system evenly distributes heat throughout the oil, yielding 60.9 percent cooking efficiency and 72 percent thermal efficiency . Each vat includes twin baskets with plastic-coated handles to reduce heat transfer to employees' palms. Its fry tank and cabinet are constructed of stainless steel—which means it's durable and corrosion-resistant—and it measures 461/2 inches wide by 301/8 inches deep by 471/4 inches high overall.
The Vulcan 3TR65AF gas fryer's temperature can be set between 200 and 390 degrees Fahrenheit with its solid-state analog control knobs located behind the doors. This unit has integrated KleenScreen PLUS® filtration with a 1/3-horsepower motor that circulates 8 gallons of oil per minute. This system's stainless steel mesh screen removes small sediment are particulate, and when oil needs emptied, its 11/4-inch ball type drain valve facilitates removal. To further assist operators with cleaning, this fryer includes a tank brush and clean-out rod.
Product Details

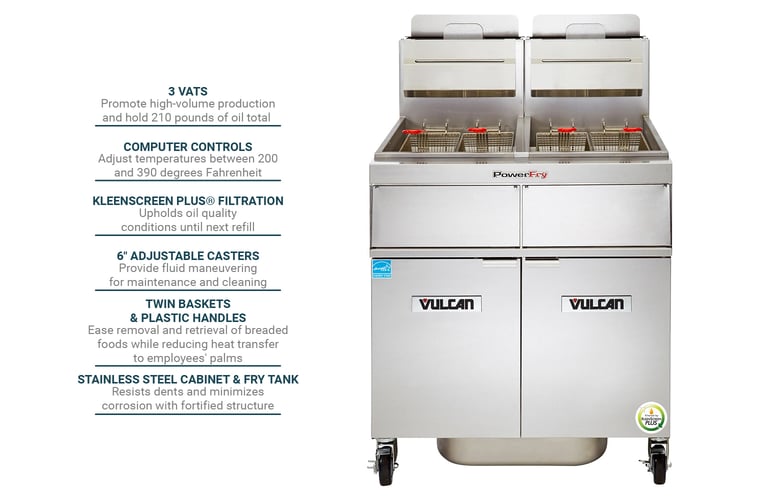

- Part of the PowerFry3 series
- Battery system with 3 fryers
- Capacity per fryer: 65-70 lb. (195-210 lb. total)
- ThreePass heat transfer system
- Twin baskets with plastic-coated handles
- Stainless steel cabinet and fry tank
- Outputs 5,083 BTU/hr. when idle to maintain cooking temperatures
- (4) 6-in. adjustable casters
Built-in Filtration System
- KleenScreen PLUS filtration system
- 18-ga. stainless steel filter pan
- Stainless steel filter mesh screen
- Drain valve interlock switch
- 11/4-in. port ball type drain valve
Solid-state Controls
- Knob controls behind doors
- Temperature control: 200-390 degrees F
- User-selectable fat melt modes
- SoftStart™ ignition system
Dimensions & Utilities
- Twin baskets: 91/4 in. W x 131/4 in. D x 6 in. H
- Fry tanks: 191/2 in. W x 14 in. D
- Overall: 63 in. W x 301/8 in. D x 471/4 in. H
- 6 A, 1/3 HP
- 115 V/60 Hz/1 ph
- LP gas powered
- 240,000 BTU
Product Features
*Free shipping on Vulcan 3TR65AF within the 48 contiguous states.
From The Manufacturer
PowerFry3™ Fryer, LP gas, high efficiency, 63" W, (3) battery, 65-70 lbs. capacity per vat, solid state analog knob control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 240,000 BTU, CSA, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 3TR65AF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 210 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| NEMA | 5-15P |
| Number of Fry Pots | 3 |
| Oil Capacity (lb) | 210 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 63 |
| Weight | 916.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
