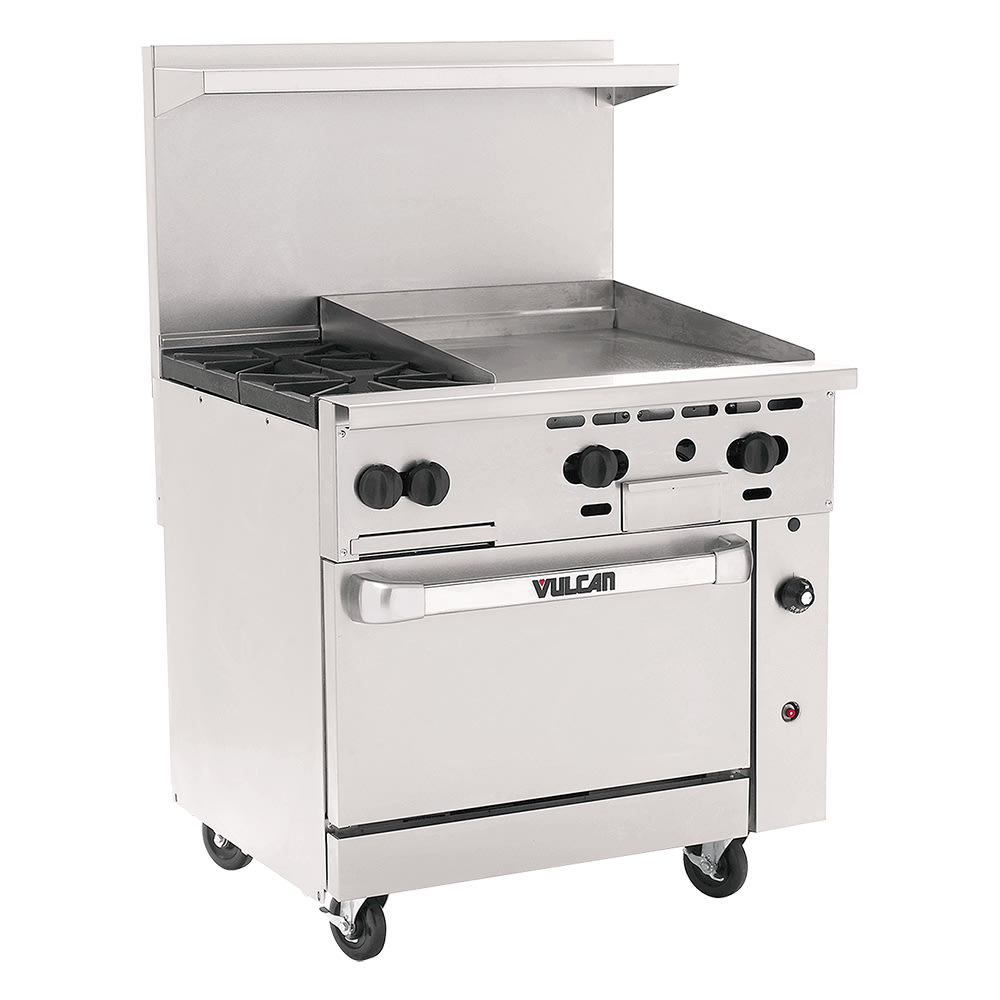

Vulcan 36C-2B24GT 36" 2 Burner Gas Range w/ Griddle & Convection Oven, Liquid Propane

With its sides, front, back riser, and lift-off high shelf constructed of stainless steel, the Vulcan 36C-2B24GT LP gas range is durable enough to withstand high-volume kitchen establishments. Its two burners have lift-off burner heads to accommodate large pots and pans, while its griddle portion is great for grilling, sauteing or searing. It has a pull-out crumb tray and 4-inch-wide front grease trough to streamline cleanup. While its burner knobs are cool to the touch to prevent user injury, its grates have a built-in aeration bowl for efficiency. Its legs are adjustable to 6 inches to create a comfortable height, and overall, this unit measures 36 inches wide by 34 inches deep by 58 inches high.

To bake, broil, or roast, the Vulcan 36C-2B24GT LP gas range has a standard baker’s depth convection oven in its lower portion. It includes three oven racks to accommodate multiple products at once and can hold full-sized pans side to side. It can hold temperatures between 250 to 500 degrees Fahrenheit and has a porcelain bottom and door panel that's simple to wipe clean. It also has four rack placement options to fit various pan heights or place items closer to or farther from the heat. This oven measures 26³/₈ inches wide by 24 inches deep by 13⁷/₈ inches tall.

Product Details

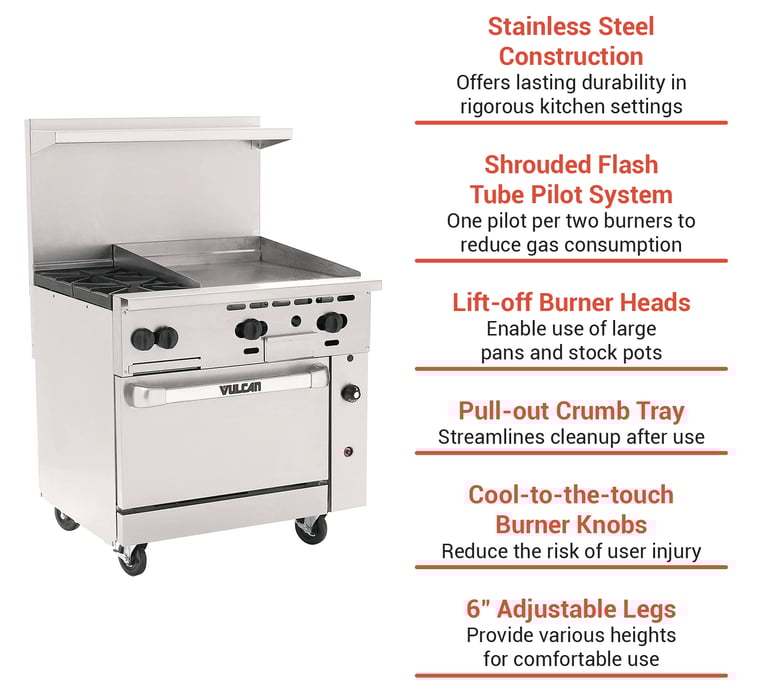

• Part of the Endurance™ series
• Stainless steel front, sides, back riser, and lift-off high shelf
• Fully MIG-welded chassis
• 6-in.-high adjustable legs
• Extra-deep pull-out crumb tray with welded corners
• ³/₄-in.-dia. Rear gas connection and pressure regulator
• Casters not included

Stove/Griddle Details

• Thermostatically controlled griddle (snap action)
• (1) 24-in.-long griddle with a ³/₄-in.-thick plate on right side of unit
• Lift-off burner heads
• 4-in.-wide front grease trough
• Two open-top burners (each burner is 30,000 BTU/hr)
• Energy-saving, shrouded flash tube pilot system (one pilot per two burners)
• Heavy-duty cast grates with easy lift off

Oven Details

• Convection oven
• 35,000 BTU/hr convection oven
• Includes three oven racks
• Grates have a built-in aeration bowl for greater efficiency
• Burner knobs are cool to the touch, high-temperature material
• Standard bakers depth oven with porcelain bottom and door panel
• Temperature range: 250 to 500 degrees F with a low setting
• Includes (2) racks, (2) rack guides, and (4) rack positions
• Door is heavy duty with an integrated door hinge/spring mechanism (no adjustments required)
• Full-sized sheet pans only fit side to side
• Convection oven motor requires field attachment

Dimensions & Utilities

• Front grate: 12 in. L x 12¹/₂ in. W
• Rear grate: 12 in. L x 14¹/₂ in. W
• Oven: 26³/₈ in. W x 24 in. D x 13⁷/₈ in. H
• Overall: 36 in. W x 34 in. D x 58 in. H
• Total input: 135,000 BTU/hr
• 115 V/60 Hz/1 ph, 4 A
• 6-ft.-long cord and plug
• Liquid propane

Product Features

*Free shipping on Vulcan 36C-2B24GT within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, LP gas, 36", (2) 30,000 BTU burners, (1) 24" griddle, 3/4" thick plate, thermostatic controls, lift-off burner heads, 4" W front grease trough, convection oven, stainless steel front, sides, backriser & lift-off high shelf, fully MIG welded chassis, 6" adjustable legs, 135,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 36C-2B24GT Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Catalog
