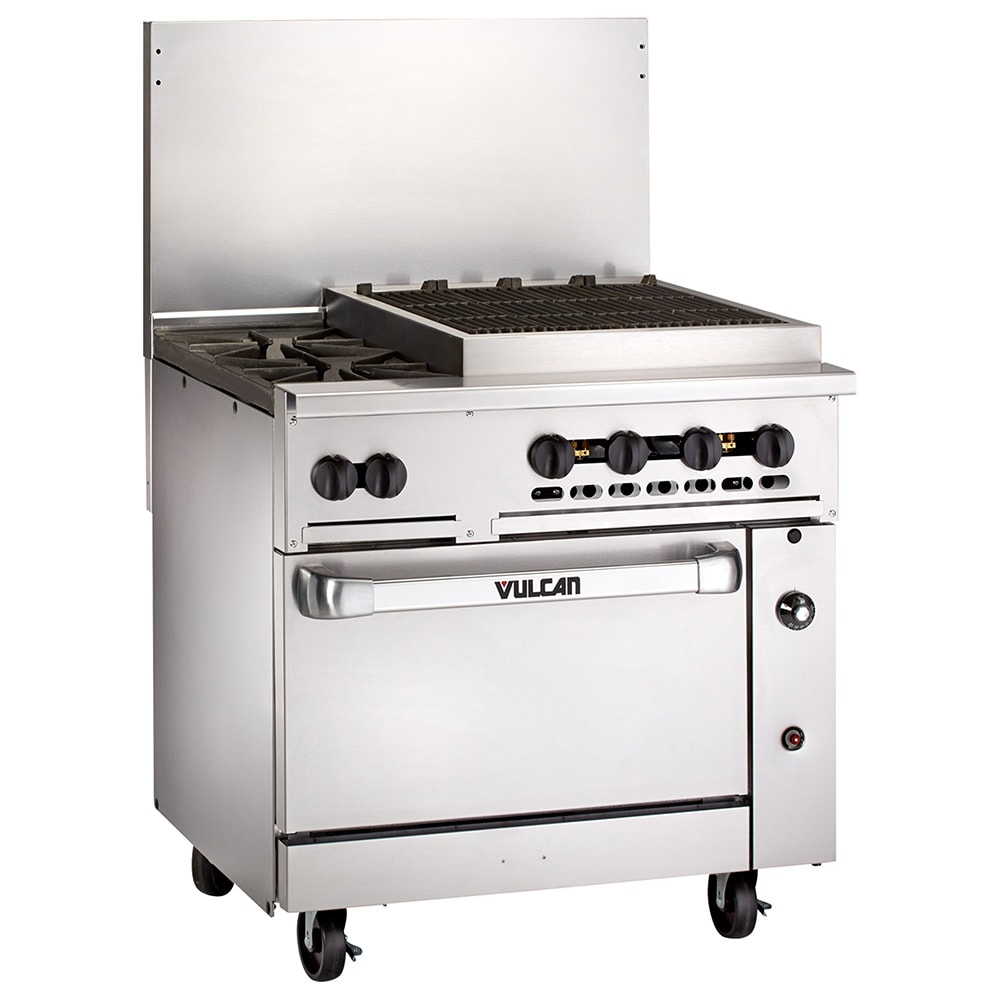

Vulcan 36C-2B24CBP 36" 2 Burner Gas Range w/ Charbroiler & Convection Oven, Liquid Propane

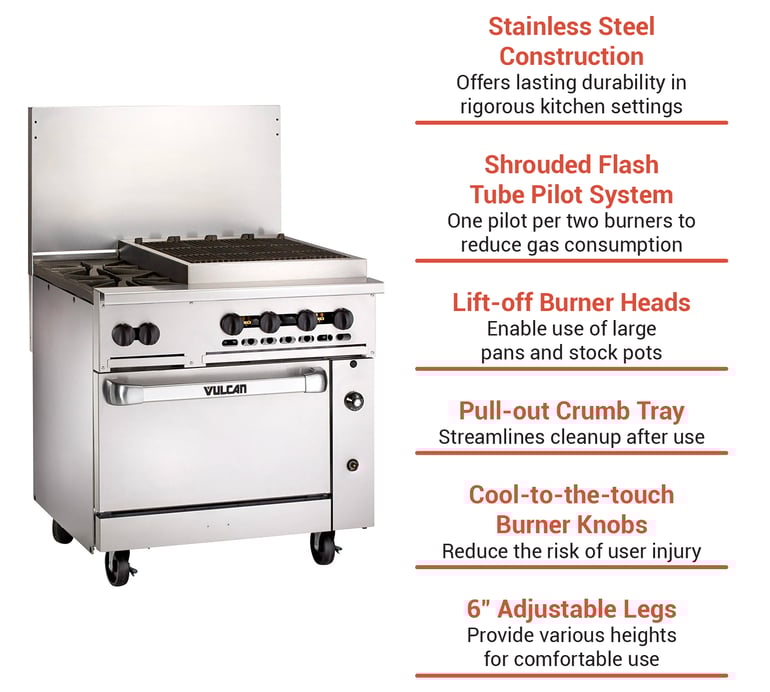

The Vulcan 36C-2B24CBP gas range features a stainless steel front, back riser, and sides for extended durability in rigorous kitchen settings. It includes an extra-deep, pull-out crumb tray that can be easily emptied for simple cleanup and includes lift-off burner grates. It features legs that are adjustable as long as 6 inches to place the unit at a comfortable height.

To saute, sear, or boil, the Vulcan 36C-2B24CBP gas range has two burners and a 24-inch charbroiler. Its grates have a built-in aeration bowl for efficiency, while its shrouded flash tube pilot system provides one pilot per two burners to reduce gas and energy consumption. Because of its extra-deep grates, this unit accommodates large pans or stock pots on its back burners. Overall, it measures 36 inches wide by 34 inches deep by 58 inches high.

This model also includes a standard convection oven for various cooking functions in a single unit. It has a heavy-duty oven door with an integrated door hinge and spring mechanism, eliminating the need for adjustments. Its temperature ranges from 250 to 500 degrees and includes two oven racks with four rack positions to cook proteins, roast vegetables, or broil products. They are mounted in an insulated side compartment to keep controls cool. This unit's oven portion measures 26³/₈ inches wide by 27 inches deep by 14 inches high and has a porcelain oven bottom and door panel that's simple to wipe clean.

Product Details

• Part of the Endurance series
• Stainless steel, extra-deep pull-out crumb trays with welded corners
• Front, sides, and back riser are stainless steel
• Fully MIG-welded aluminized steel frame
• 6-in.-high adjustable legs

Stove & Charbroiler Details

• (2) 30,000 BTU open burners
• Grates have built-in aeration bowl for greater efficiency
• Cool-to-the-touch burner knobs
• Lift-off burner heads
• Energy-saving, shrouded flash tube pilot system (one pilot per two burners)
• Heavy-duty cast grates featuring easy lift-off
• Extra-deep grates accommodate large pans or pots on back burners
• (1) 24-in.-long charbroiler with (4) 16,000 BTU/hr burners include supercharger dividers

Oven Details

• Standard oven
• Heavy-duty oven door with integrated door hinge/spring mechanism requiring no adjustment
• 35,000 BTU/hr. baker's depth standard oven cavity
• Oven thermostat range: 250 to 500 degrees F
• Two oven racks with four rack positions
• Oven controls mounted in insulated side compartment to keep away from the heat zone

Dimensions & Utilities

• Oven: 26³/₈ in. W x 24 in. D x 14 in. H
• Overall: 36 in. W x 34 in. D x 58 in. H
• Natural gas
• 159,000 BTU

Product Features

*Free shipping on Vulcan 36C-2B24CBP within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, LP gas, 36", (2) 30,000 BTU open burners, (1) 24" charbroiler, lift-off burner heads, convection oven, stainless steel front, sides & backriser, fully MIG welded chassis, 6" adjustable legs, 159,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 36C-2B24CBP Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
