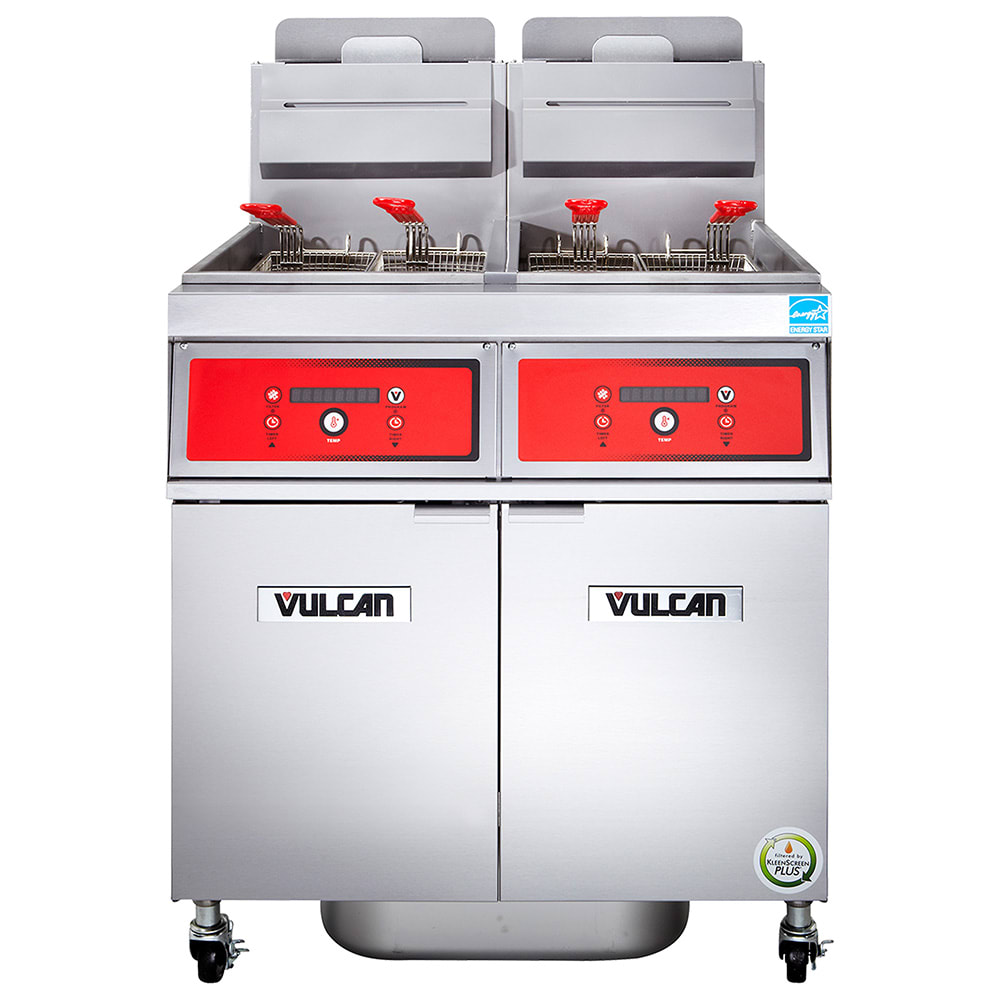

Vulcan 2VK45DF Gas Fryer - (2) 50 lb Vats, Floor Model, Natural Gas

For even heat distribution and quick temperature recovery, the Vulcan 2VK45DF gas fryer features a FivePass™ heat transfer system. With its two fry baskets, operators can prepare large quantities of fried chicken, potatoes, or mozzarella sticks in its two stainless steel vats, which can hold 50 pounds of oil each. For user safety, the fry baskets sport plastic-coated handles. To turn on the fryer, operators can use its electronic matchless ignition, activating the SoftStart™ system, which operates at 70,000 BTUs at start-up and gradually increases to 140,000 BTUs to extend oil life. When not in use, it maintains its temperature at an idle rate of 8,502 BTUs for energy efficiency. It sits on four 6-inch casters for mobility; two of these casters can be locked in place.

Built with a digital display, temperatures can be set and maintained between 200 to 390 degrees Fahrenheit. Solid shortening can be melted to a thin oil consistency with its three melt modes, and this unit has two countdown timers—one for each vat—that alert employees when food is fully cooked. The cold zone is V-shaped, easing cleaning and using less oil. For simplified and thorough cleaning, the automatic boil-out mode cleans the fryer with boiling water and a cleaning solution after the oil has been emptied. The included clean-out rod removes sediment from the fryer's drain, while the tank brush scrubs underneath the burner tubes. Because it features a hi-limit shut off, the fryer stops gas flow if the oil gets too hot, reducing the risk of burnt oil and fires.

The Vulcan PowerFry5™ fryer's Kleenscreen Plus® filtration system offers a one-touch push button switch to engage its pump and motor, and the 1¹/₄-inch full-port, ball-type drain valve has an interlock switch that turns gas burners off when the oil is draining. Its seamless filter pan is constructed of 18-gauge stainless steel and has a stainless steel mesh filter screen that filters from two sides. This filtration system pumps 8 gallons per minute within its 270-square-inch filter area. For simple lifting, the filter pan weighs 12¹/₂ pounds. Overall, this unit measures 31 inches wide by 30¹/₈ inches deep by 47¹/₄ inches high and sits at a 36¹/₄-inch working height for comfortable use.

Product Details

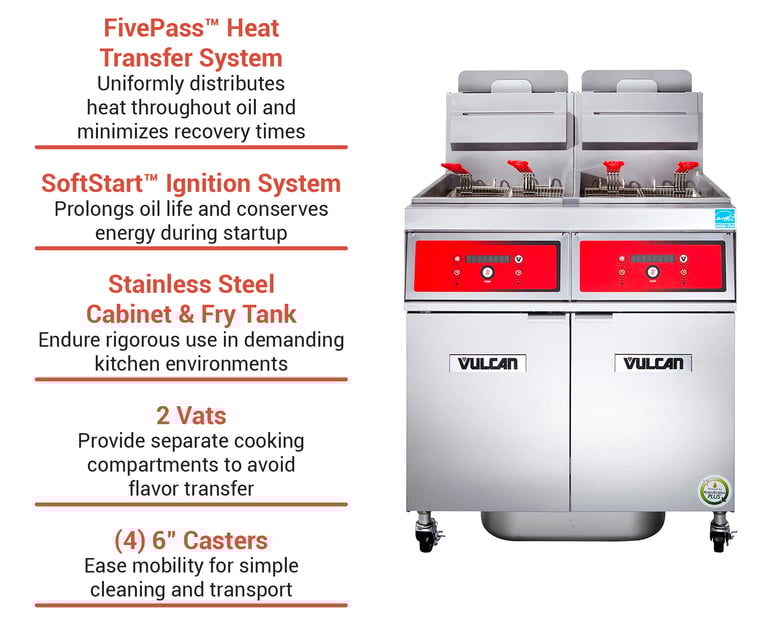

• Part of the PowerFry5 VK45 series
• 45- to 50-lb. capacity per vat
• Freestanding
• Stainless steel tank and cabinet
• FivePass heat transfer system yields 66 percent cooking and 78 percent thermal efficiency
• SoftStart ignition system uses 70,000 BTU/hr. at startup to prolong oil life
• 8,502 BTU/hr. idle rate
• 36¹/₄-in. working height
• 1¹/₄-in. full-port ball-type drain valve
• Twin fry baskets with plastic-coated handles
• (4) 6-in. adjustable casters (2 locking)
• Electronic matchless ignition
• Includes tank brush and clean-out rod
• 140,000 BTU/hr.
• Hi-limit shut off
• Requires 6-in. clearance at both sides and rear to combustible construction
• Requires 16-in. clearance to open-top burners

Solid-state Digital Controls

• Operates between 200 to 390 degrees F
• Digital display with 3 melt modes
• 2 countdown timers can be switched between actual and compensating time
• Celsius or Fahrenheit readouts
• Auto boil-out mode

Kleenscreen Plus Filtration System

• Drain valve interlock switch automatically turns off gas burners when draining oil
• Seamless 18-ga. stainless steel filter pan
70-lb. frying compound capacity
• Stainless steel mesh filter screen filters from two sides
• 270-sq.-in. filter area
• Pumps at 8 gal./min.
• One-touch push-button switch engages pump and motor
• 6-in. high-temperature discard hose
• Filter pan weighs 12¹/₅ lb.

Dimensions & Utilities

• Overall: 31 in. W x 30¹/₈ in. D x 47¹/₄ in. H
• Natural gas
• 7 A, ¹/₃ HP
• 115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
• 1¹/₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 2VK45DF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 31" W, (2) battery, 45-50 lbs. capacity per vat, solid state digital control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 140,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 2VK45DF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	70000
Capacity (lbs)	100
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	NG
NEMA	5-15P
Number of Fry Pots	2
Oil Capacity (lb)	100
Oil Capacity/Fryer (lb)	50
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry5™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	31
Weight	530.00
