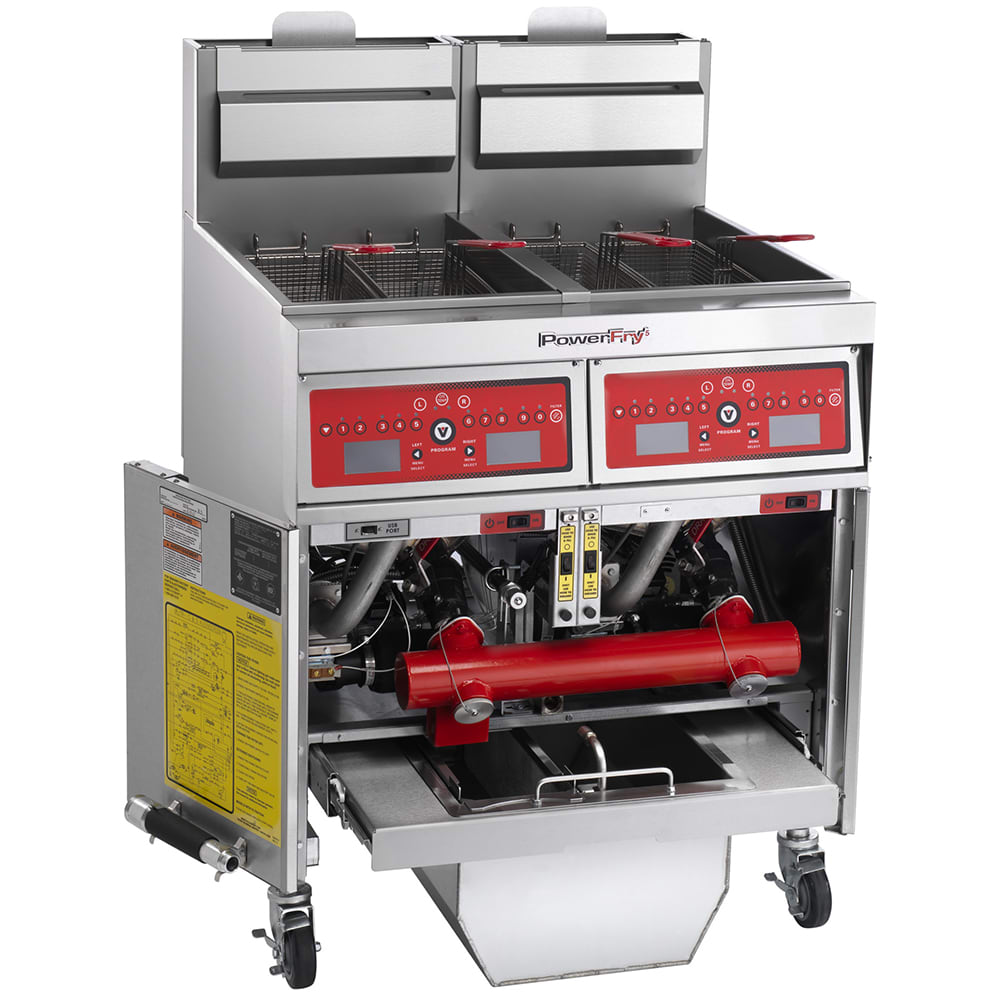

Vulcan 2VK45CF Gas Fryer - (2) 50 lb Vats, Floor Model, Liquid Propane

The Vulcan 2VK45CF PowerFry5™ commercial gas fryer's two 50-pound-capacity frypots have corresponding computer controls that enable users to set each frypot's temperature, timer, and melt mode to properly cook products with different requirements. To streamline operation, operators can program as many as 10 menu items, while the digital display provides a readout of the menu item name and cook time; items can be programmed offline with a USB system. Once temperatures are set between 200 and 390 degrees Fahrenheit, the SoftStart™ ignition system quickly warms the oil to the desired temperature to save energy and reduce the chance of scorched oil. When it reaches the set temperature, the idle temperature setting maintains heat by outputting just 4,251 BTUs per hour to save energy. To yield 78 percent thermal efficiency and 66 percent cooking efficiency, its FivePass™ heat transfer system evenly disperses heat throughout the oil.

Employees can work comfortably at this 31-inch-wide by 30¹³⁄₁₀₀-inch-deep by 47¹⁄₄-inch-tall fryer because it creates a 36¹⁄₄-inch working height. Users can lower breaded contents into the vats with the included fryer baskets, which feature plastic-coated handles to minimize heat transfer to promote safety. To protect users' hands from heat transfer the baskets' handles are coated with plastic. For lasting rust- and corrosion-resistant durability, the frypots and the cabinet are constructed of stainless steel. Because it's fitted with four 6-inch casters—two of which include locks—this fryer is simple to reposition and stabilize in place.

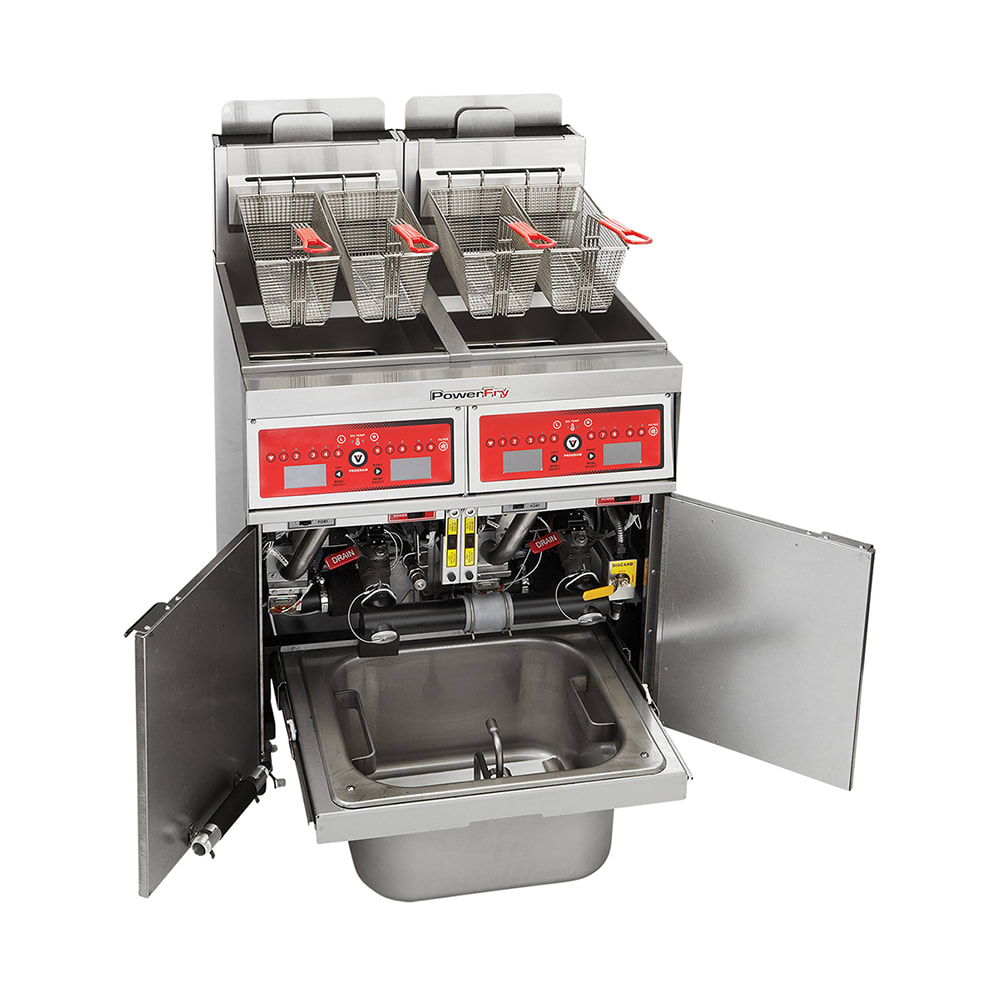

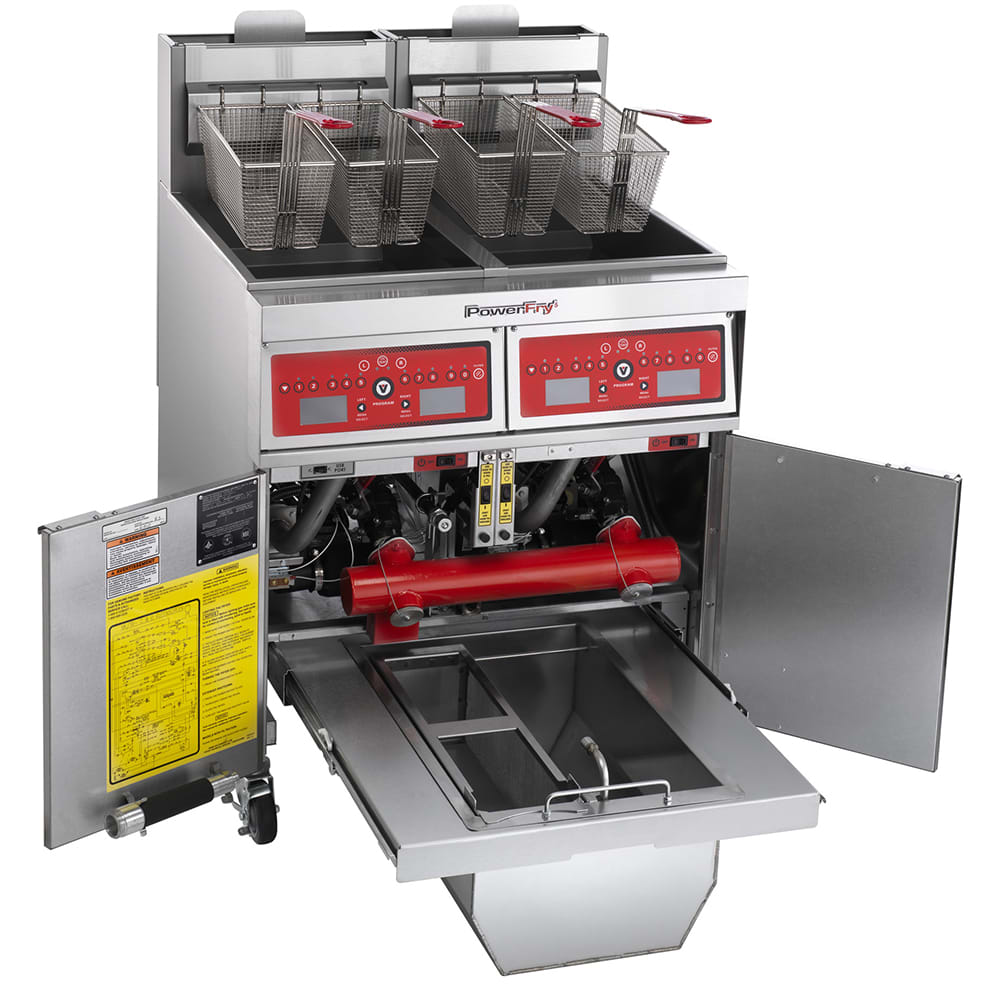

The KleenScreen PLUS® filtration system built into the base of the Vulcan 2VK45CF commercial gas fryer is positioned on an accessible pull-out drawer. To streamline operation, operators can initiate a filtration cycle with the push of a button, causing the motor and pump to circulate oil at 8 gallons per minute. As much as 70 pounds of oil can be emptied into the stainless steel filtration pan, and once oil is fully filtered, the oil-return tube adds it back into the frypots after the filter drawer is closed.

Product Details

• Part of the PowerFry5 VK45 line
• 2-battery, freestanding unit
• (2) 50-lb. frypots
• Stainless steel cabinet and frypots
• 2 fryer baskets with plastic-coated handles per frypot (4 total)
• 36¹⁄₄-in. working height
• (4) 6-in. adjustable casters (2 with locks)
• FivePass heat transfer system yields 66 percent cooking efficiency and 78 percent thermal efficiency
• SoftStart ignition system quickly warms oil
• Idle temperature mode maintains set temperature at just 4,251 BTUs per hour
• Flue temperature doesn't exceed 500 degrees F at maximum production rate
• Hi-limit shutoff
• 1¹⁄₄-in. port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (2) 70,000 BTU

Computer Controls

• Operating temperature range: 200-390 degrees F
• Fahrenheit or Celsius digital character display
• 10 menu timers display product name and cook time
• Items can be programmed offline using a USB interface (software included)
• Electronic ignition
• Can cook with compensating time or actual time
• 3 melt modes

Filtration System Details

• Pull-out drawer assembly
• 70-lb.-capacity stainless steel filter pan
• Stainless steel mesh filter screen establishes filter area from 270-350 sq. in.
• Activate filtration cycle with the push of a button
• Pump and motor circulate oil at 8 GPM
• Drain valve interlock switch automatically turns off burners during oil draining
• Hands-free oil-return tube adds oil back to tanks
• Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities

• 31 in. W x 30¹³⁄₁₀₀ in. D (50¹⁄₄ in. D when doors are opened) x 47¹⁄₄ in. H
• 7 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by LP gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 2VK45CF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 31" W, (2) battery, 45-50 lbs. capacity per vat, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 140,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 2VK45CF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
