Vulcan 2TR85AF Gas Fryer - (2) 90 lb Vats, Floor Model, Natural Gas

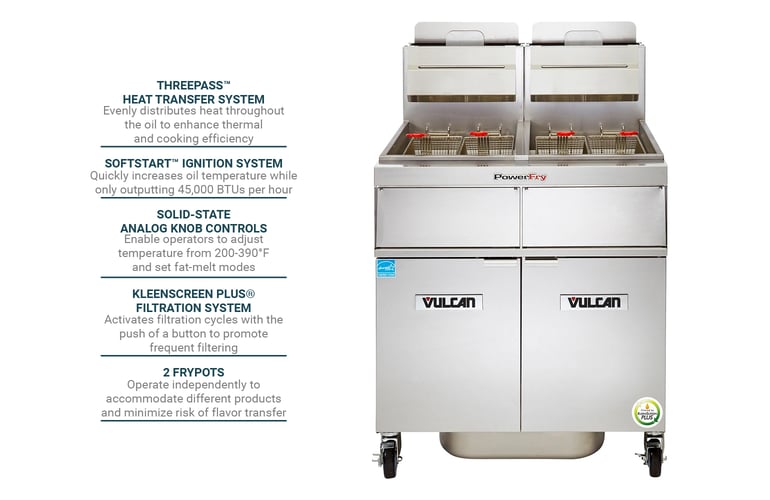

To conserve space while promoting efficiency, the Vulcan 2TR85AF freestanding gas fryer's 42-inch-wide by 34¹⁹⁄₅₀-inch-deep by 42¹⁄₄-inch-tall body features two 90-pound-capacity frypots. Both frypots have individual solid-state analog knob controls to accommodate foods with different cooking requirements with minimal flavor transfer. The analog knobs located behind the cabinet doors enable employees to set the oil temperature between 200 and 390 degrees Fahrenheit and choose from one of the fat-melt modes when using solid shortening. Once the temperature is set, the SoftStart™ ignition system quickly warms the oil by outputting 45,000 BTUs per hour. The ThreePass™ heat transfer system uniformly disperses heat throughout the oil to yield high cooking and thermal efficiency, and to maintain desired temperatures, the idle temperature mode only outputs 5,575 BTUs per hour for energy conservation.

To extend oil life, the KleenScreen PLUS® filtration system is housed in a pull-out drawer in the unit's base. Users can initiate a filtration cycle with the push of a button, causing the pump and motor to circulate oil at an 8-gallon-per-minute rate. To streamline the process, the drain interlock switch automatically turns off the gas burners as oil is draining, while the stainless steel mesh filter screen filters from two sides. Its seamless stainless steel filter pan can hold 110 pounds of oil, and once the filter drawer is closed, the hands-free oil-return tube adds filtered oil back to the unit.

Both frypots in the Vulcan 2TR85AF high-efficiency gas fryer include twin baskets that accommodate an array of breaded products—from french fries to fish filets. The baskets' structures ensure contents are secure as they're lowered into the vats and removed from the oil, and for enhanced safety, the handles are coated with plastic. To provide durability through high-volume use, the cabinet and fry tanks are made of rugged, corrosion- and rust-resistant stainless steel. Operators can wheel this unit out of the way to clean the floor or perform routine maintenance because it's fitted with four 6-inch casters. Two of these casters include locks to secure the fryer in place.

Product Details

• Featured in the PowerFry3™ TR85 collection
• 2-battery, freestanding floor model
• (2) 90-lb. fry tanks
• ThreePass heat transfer system yields 72 percent thermal efficiency and 60 percent cooking efficiency
• SoftStart ignition mechanism quickly warms oil
• Idle temperature mode outputs 5,575 BTUs per hour to maintain temperature
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff
• Stainless steel cabinet and frypots
• 4 fryer baskets featuring plastic-coated handles (2 per frypot)
• Establishes 36¹⁄₄-in. working height
• (4) 6-in. adjustable casters (2 with locks)
• 1¹⁄₄-in. port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (2) 90,000 BTU

Solid-state Analog Knob Controls

• Separate solid-state analog knob controls for each fry tank
• Operating temperature range: 200-390 degrees F
• User can select fat-melt modes
• Electronic ignition
• Located behind cabinet door

Filtration System Details

• Housed in a pull-out drawer in unit's base
• Button activates motor and pump
• Motor and pump circulate oil at 8 GPM
• 2-sided stainless steel mesh filter establishes 270-sq.-in. filter area
• Drain valve interlock switch turns off burners while oil drains
• Seamless 18-ga. stainless steel filter pan can hold 110 lb. of oil
• Hands-free oil-return tube
• Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities

• 42 in. W x 34¹⁹⁄₅₀ in. D (54¹⁄₂ in. D when doors are opened) x 47¹⁄₄ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 2TR85AF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 42" W, (2) battery, 85-90 lbs. capacity per vat, solid state analog knob control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 180,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 2TR85AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
