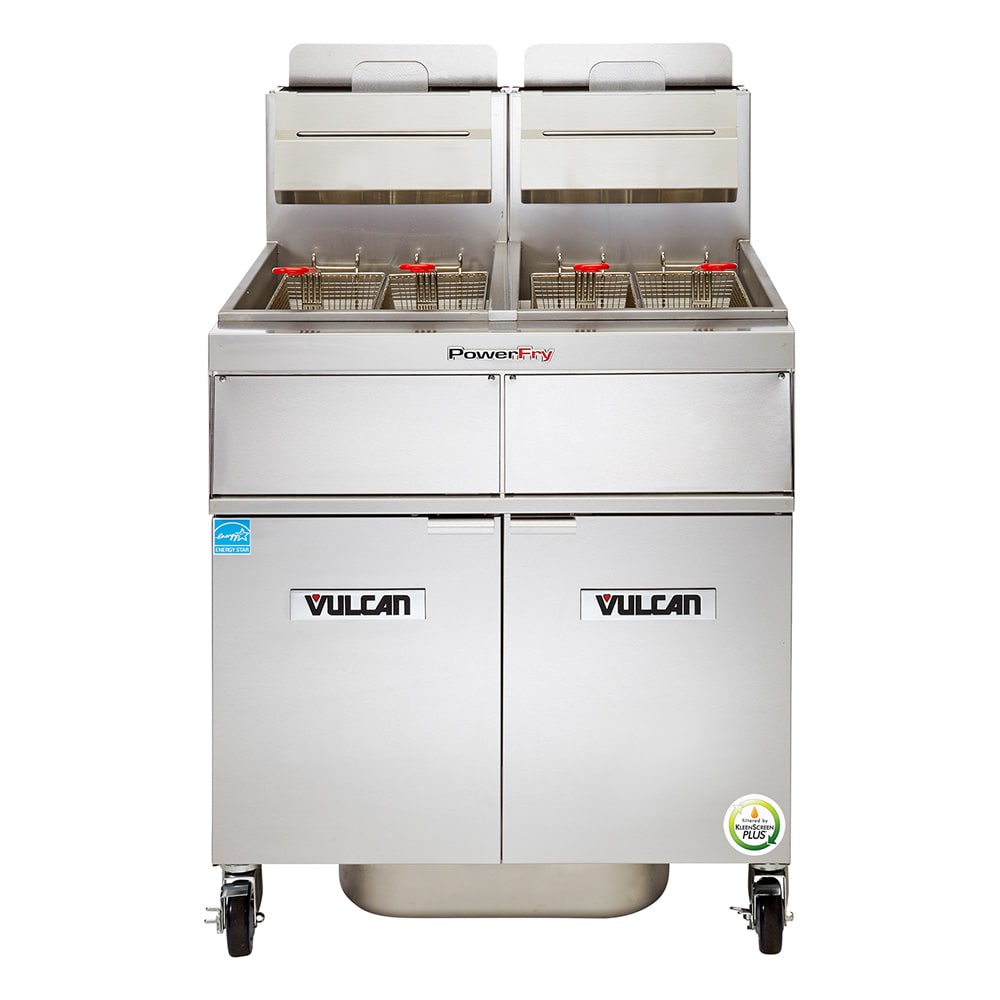

Vulcan 2TR65DF Gas Fryer - (2) 70 lb Vats, Floor Model, Natural Gas

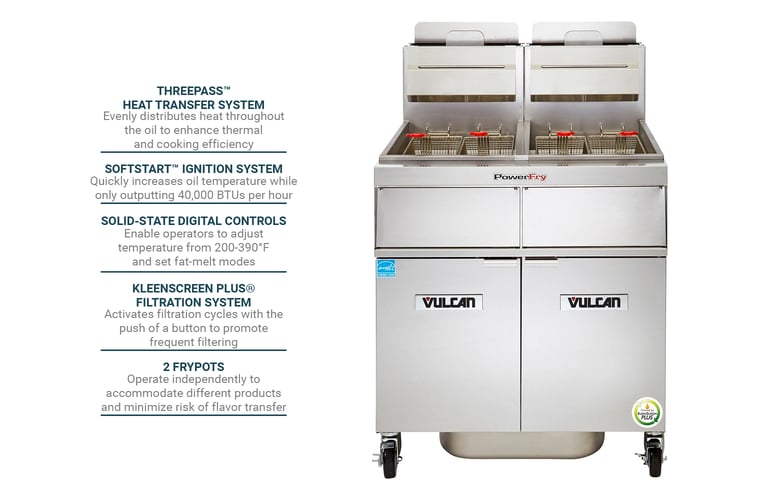

So operators can fry foods with different cooking requirements simultaneously, the Vulcan 2TR65DF commercial gas fryer is built with two 70-pound-capacity vats featuring independent solid-state digital cooking controls. Each frypot's temperature can be set from 200 to 390 degrees Fahrenheit; a digital display provides a readout of temperatures in Fahrenheit or Celsius. To properly cook solid shortening, it provides three melt modes, and two countdown timers can be set to ensure precise cooking. Each frypot can output 80,000 BTUs per hour, and to enhance energy efficiency, it features a SoftStart™ ignition system that quickly heats oil at 40,000 BTUs per hour. While the ThreePass™ heat transfer system evenly distributes heat throughout the oil, the idle temperature setting outputs just 5,083 BTUs per hour to conserve energy while maintaining set temperatures.

The built-in KleenScreen PLUS® filtration system encourages frequent filtration because its motor and pump can be activated with the push of a button. Its drain interlock switch automatically turns off the gas burners when oil is drained, and the stainless steel mesh filter screen filters from two sides to establish a 270-square-inch filtration area. To expedite filtration, the motor and pump circulate oil at an 8-gallon-per-minute rate. As much as 110 pounds of oil can be expelled into the filter pan, which can be removed and emptied for simple cleaning. A hands-free oil-return line connection guides filtered oil back to the unit, eliminating manual tasks.

To conserve space in compact kitchens, the Vulcan 2TR65DF efficient freestanding fryer measures 42 inches wide by 30¹³⁄₁₀₀ inches deep by 47¹⁄₄ inches tall and provides a 36¹⁄₄-inch working height. Both frypots include twin fryer baskets to streamline submerging breaded foods into the tanks and lifting them from the oil, and because these baskets are built with plastic-coated handles, they minimize heat transfer for user safety. To endure high-volume back-of-house use, the cabinet and frypots are made of durable, rust- and corrosion-resistant stainless steel. It's fitted with four 6-inch casters that provide smooth mobility, and two of the casters can be locked to keep the unit in place during operation.

Product Details

• Featured in the PowerFry3 TR65 collection
• (2) 70-lb. fry tanks
• 2-battery, freestanding floor model
• Establishes 36¹⁄₄-in. working height
• Commercial-grade stainless steel cabinet and frypots
• 4 fryer baskets with plastic-coated handles (2 per frypot)
• (4) 6-in. adjustable casters (2 locking)
• ThreePass heat transfer system establishes 60 percent cooking efficiency and 72 percent thermal efficiency
• SoftStart ignition mechanism protects against burning oil upon startup
• Energy-saving idle temperature setting outputs 5,083 BTUs per hour
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff mechanism
• 1¹⁄₄-in. port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (2) 80,000 BTU

Solid-state Digital Controls

• Electronic matchless ignition
• Digital character display in Fahrenheit or Celsius
• Operating temperature range: 200-390 degrees F
• 3 melt modes
• 2 countdown timers
• Automatic boil-out mode
• Can cook with compensating time or actual time

Filtration System Details

• Push button activates motor and pump
• Stainless steel mesh filter can filter from 2 sides to create a 270-sq.-in. filter area
• Drain valve interlock switch
• Seamless 18-ga. stainless steel filter pan can hold 110 lb. of oil
• 8-GPM motor and pump
• Hands-free oil-return tube
• Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities

• 42 in. W x 30¹³⁄₁₀₀ in. D (50¹⁄₄ in. D when doors are opened) x 47¹⁄₄ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 2TR65DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 42" W, (2) battery, 65-70 lbs. capacity per vat, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 160,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 2TR65DF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
