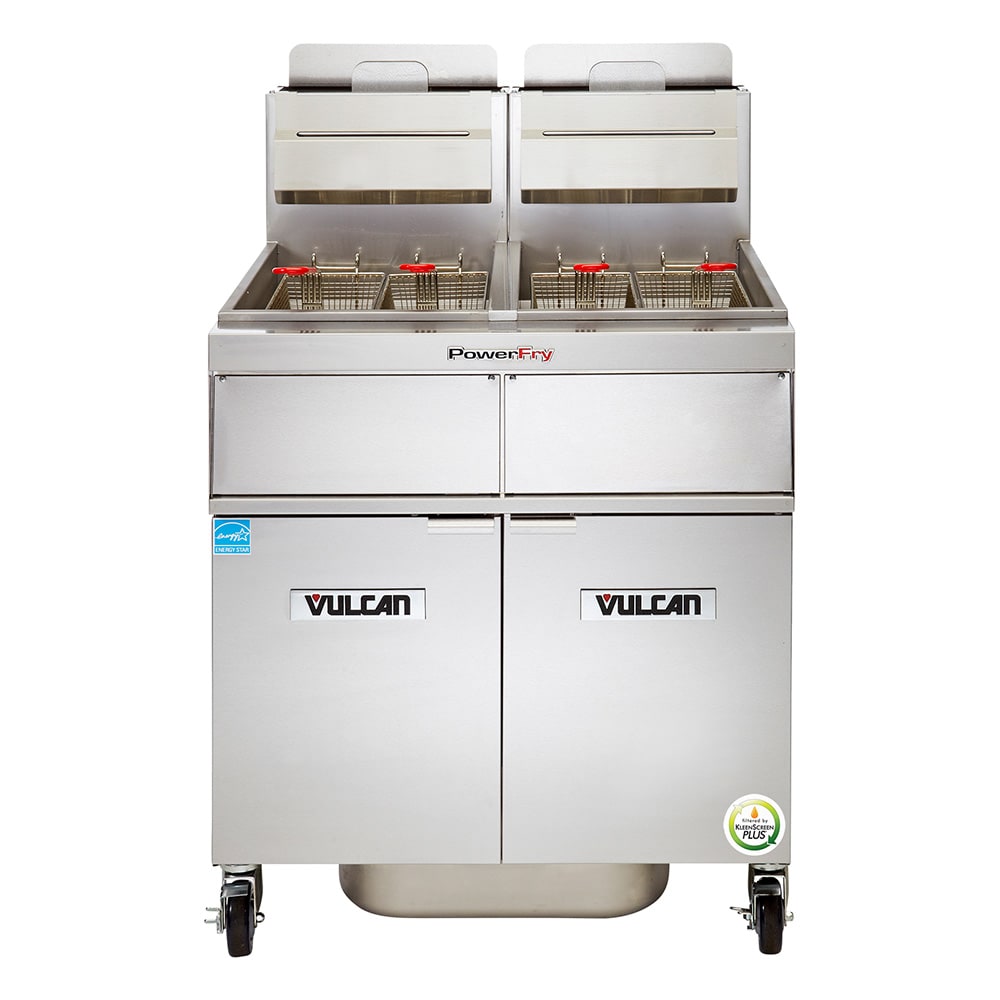

Vulcan 2TR65CF Gas Fryer - (2) 70 lb Vats, Floor Model, Natural Gas

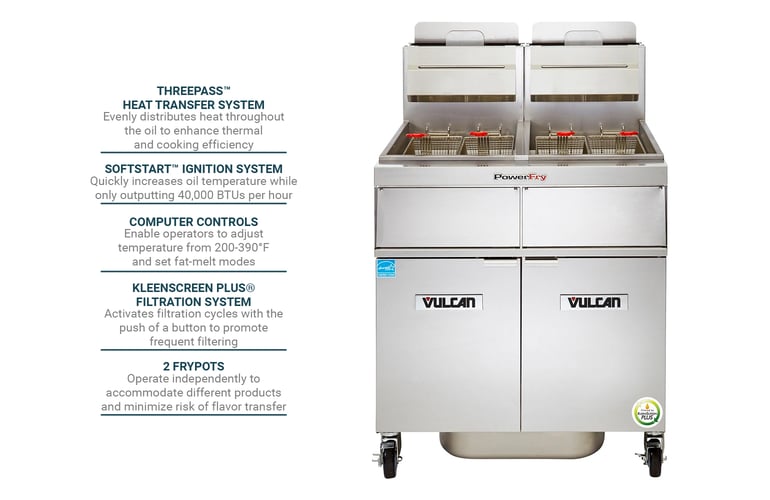

Designed to enhance energy efficiency, the Vulcan 2TR65CF commercial gas fryer is part of the PowerFry3™ series, meaning it comes with a ThreePass™ heat transfer system to evenly distribute heat throughout the two frypots' oil, resulting in high cooking and thermal efficiency. To save energy while expediting the oil-warming process, the SoftStart™ ignition system outputs 40,000 BTUs per hour. Once the set oil temperature is reached, the idle temperature setting maintains the established heat by only outputting 5,083 BTUs per hour. Operators can set the unit's temperature from 200 to 390 degrees Fahrenheit, select from three fat-melt modes, and set 10 menu timers using the computer controls. Each of the 70-pound-capacity frypots have corresponding controls so different products can be simultaneously cooked at different temperatures.

To promote frequent filtering, this floor model is built with the KleenScreen PLUS® filtration system. Its pump and motor can be engaged with the push of a button, and when oil drains, the drain valve interlock switch turns off the burners. By circulating oil at an 8-galllon-per-minute rate, the pump and motor hasten the filtration process. The stainless steel mesh filter screen filters from two sides, creating a 270-square-inch filter area. As much as 110 pounds of oil can be drained into the seamless 18-gauge stainless steel filter pan, which is simple to remove when it needs to be emptied and cleaned. To further ease cleaning, this system includes a hands-free oil-return tube, a clean-out rod, and a tank brush.

The Vulcan 2TR65AF high-efficiency gas fryer measures 42 inches wide by 30¹³⁄₁₀₀ inches deep by 47¹⁄₄ inches tall and is made of rust- and corrosion-resistant stainless steel for long-term durability through back-of-house use. Because it's mounted on four 6-inch casters, transport or maintenance is smooth; two of these casters have brakes to stabilize the unit during frying. Staff can use the four included fryer baskets, which feature plastic handles for user safety, to submerge chicken fingers, mozzarella sticks, dumplings, and other breaded foods into the vats.

Product Details

• Part of Vulcan's PowerFry3 TR65 collection
• (2) 70-lb. frypots
• 2-battery freestanding floor model
• 36¹⁄₄-in. working height
• Stainless steel cabinet and frypots resist rust and corrosion
• 4 fryer baskets with plastic-coated handles (2 per frypot)
• (4) 6-in. adjustable casters (2 locking)
• ThreePass mechanism evenly distributes heat to yield 72 percent thermal efficiency and 60 percent cooking efficiency
• SoftStart ignition mechanism warms oil while only outputs 40,000 BTUs per hour
• Idle temperature setting only outputs 5,083 BTUs per hour to save energy
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff
• 1¹⁄₄-in. port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (2) 80,000 BTU

Computer Controls

• Separate controls for each frypot
• Electronic ignition
• Digital display in Fahrenheit or Celsius
• Operating temperature range: 200-390 degrees F
• 10 menu timers display product name and cook time
• Items can be programmed offline with USB interface (software included)
• Can cook with compensating time or actual time
• 3 melt modes

Filtration System Details

• Motor and pump are push-button activated
• Stainless steel mesh filter removes debris from 2 sides and creates 270-sq.-in. filter area
• Drain valve interlock switch shuts off burners when drain valve is opened
• Seamless 18-ga. stainless steel filter pan accommodates 110 lb. of oil
• 8-GPM motor and pump
• Hands-free oil-return tube
• Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities

• 42 in. W x 30¹³⁄₁₀₀ in. D (50¹⁄₄ in. D when doors are opened) x 47¹⁄₄ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 2TR65CF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 42" W, (2) battery, 65-70 lbs. capacity per vat, programmable computer control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 160,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 2TR65CF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
