Vulcan 2TR65AF Gas Fryer - (2) 70 lb Vats, Floor Model, Liquid Propane
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $74,570.16
$30,697.00 /Each
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 2TR65AF Description

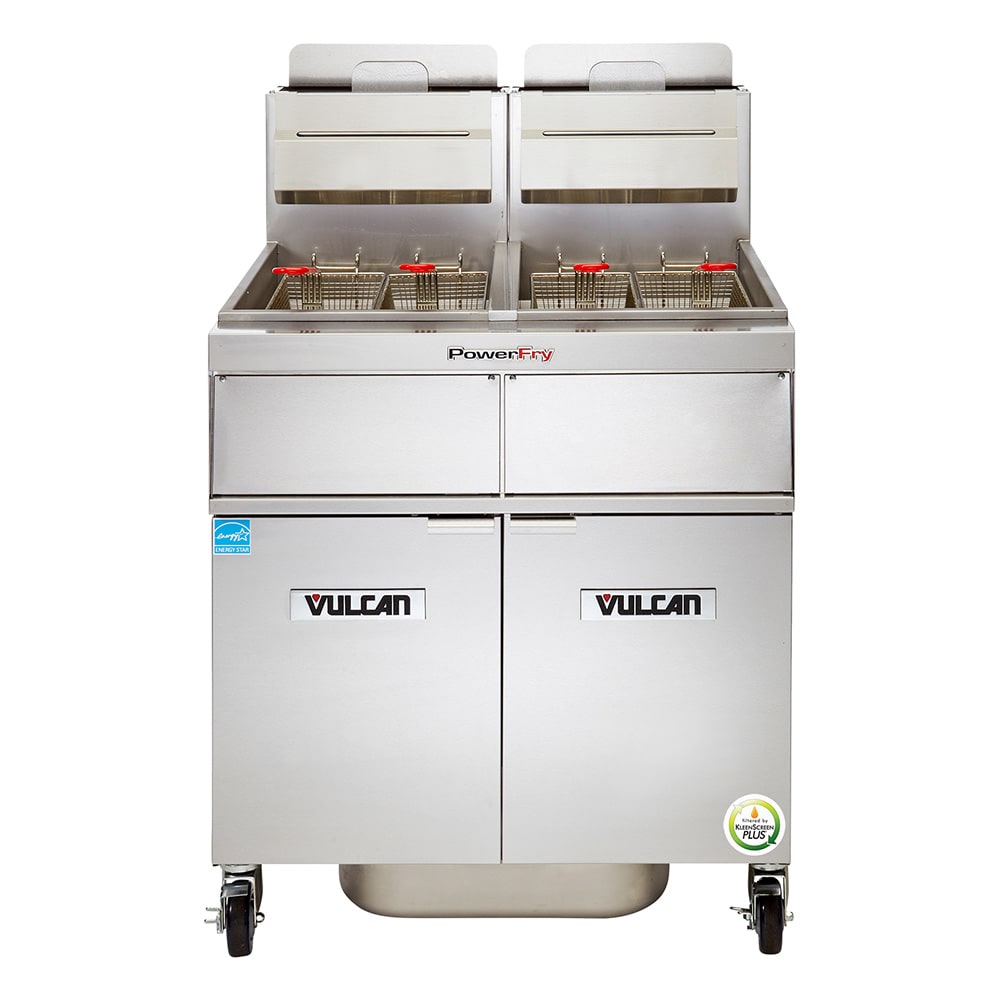

The Vulcan 2TR65AF freestanding fryer measures 42 inches wide by 301⁄4 inches deep by 471⁄4 inches high and features two fry tanks, two vats, and a stainless steel base cabinet. These tanks can hold as much as 65 to 70 pounds of frying compound and are constructed of durable stainless steel. It comes with two sets of twin fry baskets, which have plastic-coated handles to protect users' hands from burns. To ease cleaning, the fryer has a 11⁄4-inch full-port, ball-type drain valve, a tank brush, and a clean-out rod; its drain-valve interlock switch should be turned off during draining. Because it's mounted on four 6-inch casters, users can wheel it out of the way as needed, and two casters can be locked to hold it in place. This unit runs on LP gas, which can be turned off using the combination gas and pilot shut-off valve.
To extend the oil's life, this PowerFry3™-series fryer is equipped with a KleenScreen PLUS® filtration system. A stainless steel mesh screen effectively filters out fine particulates from two sides, while a motor and pump circulate oil at 8 gallons per minute. This motor and pump can be engaged using the one-touch push button. Debris and particulates are collected in the stainless steel filter pan, which holds 110 pounds of waste.
Because the Vulcan 2TR65AF fryer has a ThreePass™ heat transfer system, heat is circulated thoroughly and evenly, yielding 60.9 percent thermal and 72 percent cooking efficiency. At startup, the oil is heated through a SoftStart™ ignition system, which warms the compound gradually to reduce concentrated hot spots. Users can adjust the temperature between 200 and 390 degrees Fahrenheit using the analog control knob. So oil temperatures don't exceed the maximum threshold, this unit is equipped with a high-limit shut off. During break periods, the unit goes into stasis with the idle temperature setting, which saves energy, and to accommodate solid compounds and shortening, this unit offers multiple melt modes.
Product Details

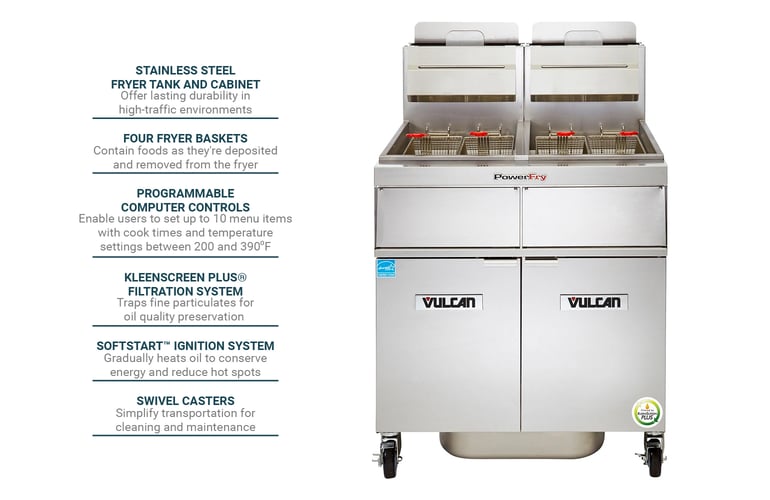

- Featured in the PowerFry3 series
- 65-70-lb. individual fry tank capacity
- 2 vats
- 2 stainless steel fry tanks and base cabinet
- 2 sets of twin baskets with plastic-coated basket handles
- Analog temperature control knob
- Temperature range: 200-390 degrees F
- Melt modes for solid compounds
- Idle temperature setting
- High-limit shut-off system
- Combination gas and pilot shut-off valve
- SoftStart ignition system
- ThreePass heat transfer system yields 60.9% thermal and 72% cooking efficiency
- 11⁄4-in. full-port, ball-type drain valve
- (4) 6-in. casters (2 with locks)
- Tank brush and clean-out rod simplify cleaning
- 160,000 BTU per hour
Filtration System
- 110-lb. filter pan capacity
- Stainless steel filter pan
- Drain valve interlock switch enhances safety
- Stainless steel mesh filter screen filters from 2 sides
- 1⁄3-HP motor and pump circulates oil at 8 GPM
- Pump and motor engaged by one-touch push button
Dimensions and Utilities
- Overall: 42 in. W x 301⁄4 in. D x 471⁄4 in. H
- Powered by LP gas
- 6.0 A
- 115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
- 11⁄4-in. rear gas connection
Product Features
*Free shipping on Vulcan 2TR65AF within the 48 contiguous states.
From The Manufacturer
PowerFry3™ Fryer, LP gas, high efficiency, 42" W, (2) battery, 65-70 lbs. capacity per vat, solid state analog knob control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 160,000 BTU, CSA, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 2TR65AF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 140 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| NEMA | 5-15P |
| Number of Fry Pots | 2 |
| Oil Capacity (lb) | 140 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 42 |
| Weight | 696.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
