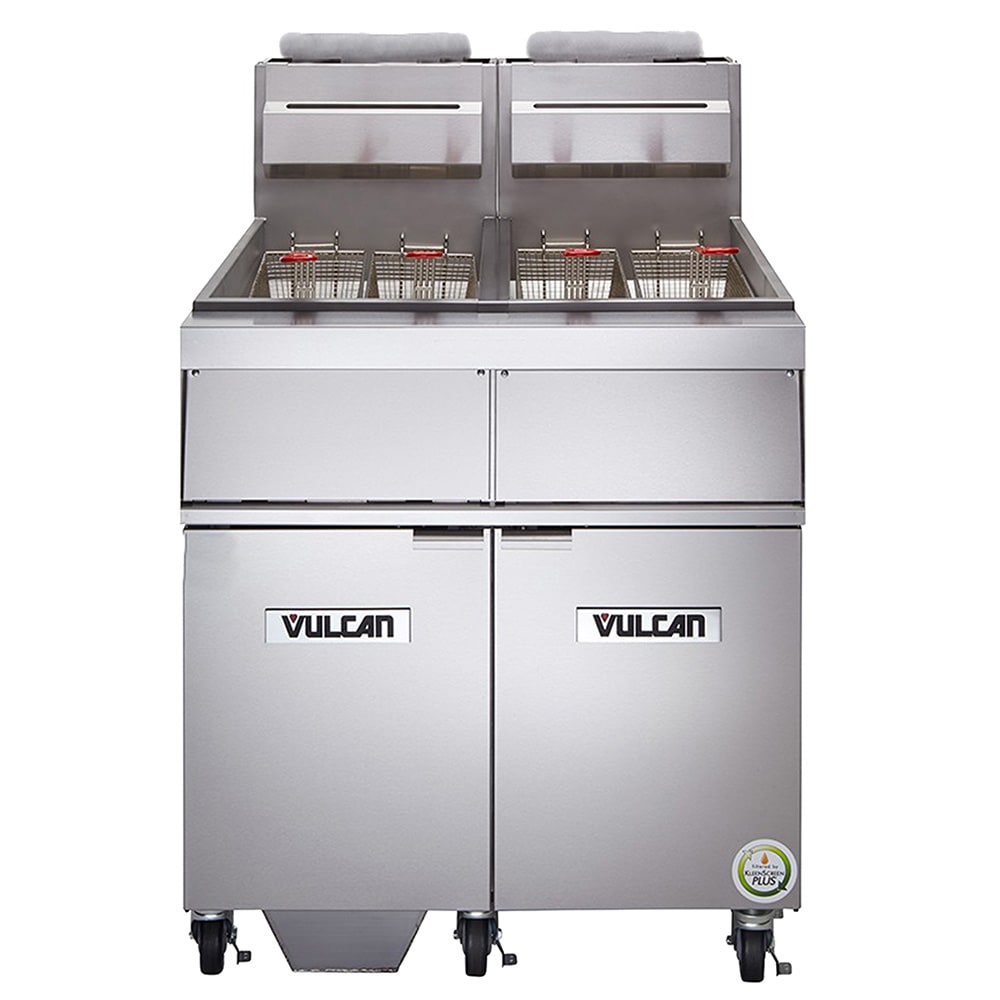

Vulcan 2GR85MF Gas Fryer - (2) 90 lb Vats, Floor Model, Liquid Propane

For lasting durability in high-volume settings, the Vulcan 2GR85MF fryer is constructed of sturdy stainless steel. It features two vats—each can hold 85 to 90 pounds of frying compound—two fry tanks, and a single base cabinet. To keep breaded shrimp, chicken, peppers, and okra contained during frying, it comes with two sets of twin fry baskets with plastic-coated handles that protect users hands from burns. So staff can move the unit out of the way for cleaning and maintenance, it's mounted on four adjustable casters, two of which have locks that keep the unit stable during operation. Overall, this unit measures 42 inches wide by 34³/₈ inches deep by 46¹⁄₄ inches high and requires installation with a ventilation system.

This Vulcan 2GR85MF LP gas fryer effectively distributes heat using four heat exchanger tubes. Users can adjust the temperature settings using the millivolt thermostat controls, which offer a 200- to 400-degree-Fahrenheit temperature range. To protect the oil from overheating, this unit has a high-limit shut-off system. For oil quality preservation, its KleenScreen PLUS® filtration system filters out fine particulates while upholding oil color and taste. It features a stainless steel mesh screen that provides filtration from two sides in addition to a one-touch push-button-activated pump and motor, which circulate oil at 8 gallons per minute. Contents are then collected in a stainless steel filter pan that can contain as much as 110 pounds of waste. To ease cleaning, this fryer has a 1¹⁄₄-inch full-port, ball-type drain valve, a tank brush, and clean-out rod. For safety, users should activate the combination gas and pilot shut-off valve before draining the oil; removing boil-out solution is simplified with the Boil Out ByPass™ system.

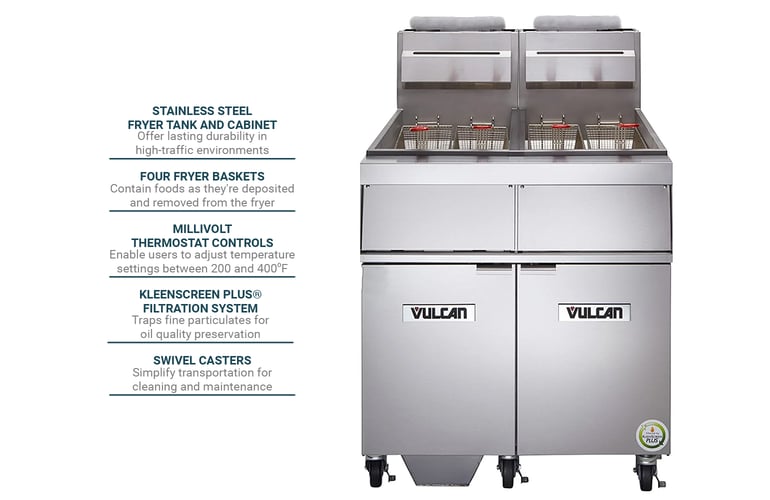

Product Details

• 2 vats with individual 85-90-lb. capacities
• 2 stainless steel fry tanks and stainless steel base cabinet
• 2 sets of twin fry baskets feature plastic-coated handles
• 4 heat exchanger tubes
• Adjustable millivolt thermostat controls
• Temperature range: 200 to 400 degrees F
• Boil Out ByPass™ eases boil-out solution removal
• High-limit shut-off system
• Combination gas and pilot shut-off valve
• 1¹⁄₄-in. full-port, ball-type drain valve
• Adjustable casters (2 with locks)
• Included tank brush and clean-out rod simplify cleaning
• Requires ventilation system
• 300,000 BTU

Filtration System

• 110-lb. filter pan capacity
• Stainless steel filter pan
• Traps fine particulates for quality preservation
• Stainless steel mesh screen filters from 2 sides
• ¹⁄₃-HP motor and pump circulates oil at 8 GPM
• One-touch push button engages the pump and motor

Dimensions and Utilities

• Overall: 42 in. W x 34³⁄₈ in. D x 46¹⁄₄ in. H
• Powered by LP gas
• 6.0 A
• 115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 2GR85MF within the 48 contiguous states.

From The Manufacturer

Fryer, gas, 42" W, (2) battery, 85-90 lb. capacity per vat, millivolt thermostat controls, KleenScreen Plus® filtration system, twin baskets, stainless steel cabinet and fry tank, adjustable casters (2 swivel locking & 2 non-locking), 300,000 BTU, CSA Star, CSA Flame, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 2GR85MF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
