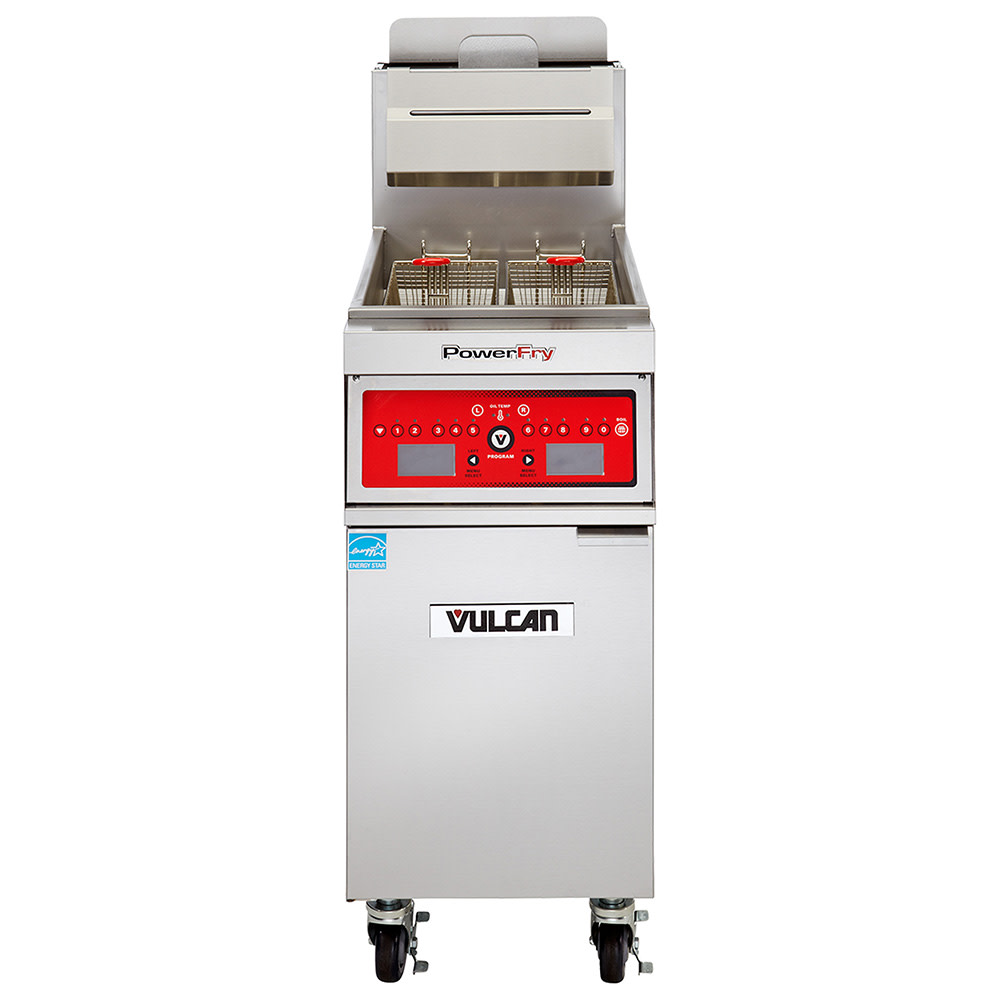

Vulcan 1VK85A Gas Fryer - (1) 90 lb Vat, Floor Model, Natural Gas

Powered by natural gas, the Vulcan 1VK85A PowerFry5™ commercial gas fryer can output 90,000 BTUs per hour. To enhance energy efficiency, it features a FivePass™ heat transfer system that evenly warms oil to eliminate cold spots, reduce cooking time, and expedite recovery time. For simple startup, this unit can be electronically ignited, and operators can adjust temperatures from 200 to 390 degrees Fahrenheit using the solid-state analog knob controls located behind the cabinet door. If using solid shortening, staff can select one of the fat-melt modes to streamline melting. The SoftStart™ ignition system slowly heats oil initially to conserve energy; when it reaches the set temperature, the idle temperature setting causes the unit to output 6,298 BTUs per hour to maintain the required heat.

The Vulcan 1VK85A freestanding, energy-efficient fryer's 19¹⁄₂-inch-wide by 18¹⁄₄-inch-deep frypot accommodates 90 pounds of cooking oil. The two included baskets can be used simultaneously in the frypot to contain foods as they're fried, and for user safety, their handles are coated in plastic to minimize heat transfer. This 21-inch-wide by 34³⁄₈-inch-deep by 47¹⁄₈-inch-tall unit's cabinet and frypot are made of resilient, rust- and corrosion-resistant stainless steel that can survive high-volume back-of-house use. For employee comfort, it provides a 36¹⁄₄-inch working height. Its four 6-inch casters provide smooth mobility to ease repositioning; during use, two of the casters can be locked in place.

Product Details

• Part of the PowerFry5 line
• Oil capacity: 90 lbs.
• SoftStart ignition system minimizes scorching by slowly heating oil
• FivePass heat transfer system evenly distributes heat throughout the oil
• Idle temperature setting maintains temperatures by outputting just 6,298 BTUs per hour
• Flue temperature doesn't exceed 500 degrees F at maximum production rate
• Hi-limit shutoff mechanism
• Freestanding
• 36¹⁄₄-in. working height
• Stainless steel cabinet and frypot resists rust and corrosion
• V-shaped cold zone
• Twin fryer baskets sport plastic-coated handles
• Includes tank brush and clean-out rod for cleaning frypot and drain
• 1¹⁄₄-in. full-port ball-type drain valve
• (4) 6-in. adjustable casters (2 with brakes)
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 90,000 BTU

Solid-state Analog Controls

• Operating temperature range: 200-390 degrees F
• Electronic ignition
• User-selected fat-melt modes
• Knob located behind cabinet door

Dimensions & Utilities

• Tank: 19¹⁄₂ in. W x 18¹⁄₄ in. D
• Overall: 21 in. W x 34³⁄₈ in. D x 47¹⁄₈ in. H
• Powered by natural gas
• Includes 120-volt cord with NEMA 5-15P plug
• ¹⁄₂-in. ID and ³⁄₄-in. OD rear gas connection

Product Features

*Free shipping on Vulcan 1VK85A within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 21" W, free-standing, 85-90 lbs. capacity, solid state analog knob control with melt cycles, FivePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 90,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1VK85A Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
