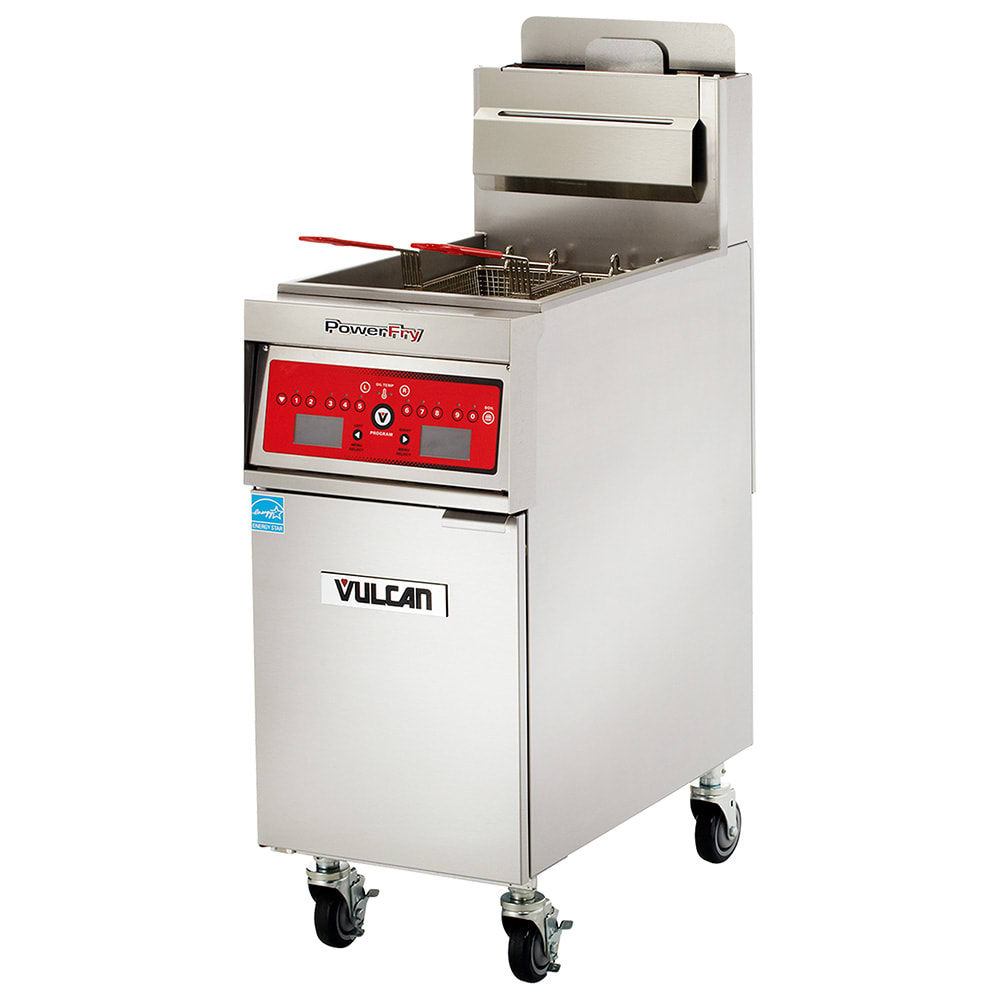

Vulcan 1VK65DF Gas Fryer - (1) 70 lb Vat, Floor Model, Natural Gas

The Vulcan 1VK65DF gas fryer promotes high-volume production while minimizing operational costs. While it outputs 80,000 BTUs overall, it also sports an electronic SoftStart™ ignition that slowly warms oil upon startup to prevent burning and scorching, extending oil life. Its FivePass™ heat transfer system produces 78 percent thermal efficiency and 68 percent cooking efficiency. It maintains set temperatures between 200 and 390 degrees Fahrenheit and comes with an integrated solid-state digital control system. This system features three possible melt cycles in addition to two countdown timers and an automatic boil-out mode.

The Vulcan 1VK65DF gas fryer vat measures 21 inches wide by 30¹/₈ inches deep by 47¹/₈ inches high. Its 19¹/₂-inch wide by 14-inch-deep fry tank accommodates 70 pounds of oil, and with KleenScreen PLUS® filtration, the oil maintains optimal conditions for longer periods to reduce refill costs. This unit's cabinet and tank are made of stainless steel for the durability needed to withstand intense use, rust, and corrosion over time. To ease cleaning processes, it has a 1¹/₄-inch full-port ball drain valve, tank brush, and clean-out rod.

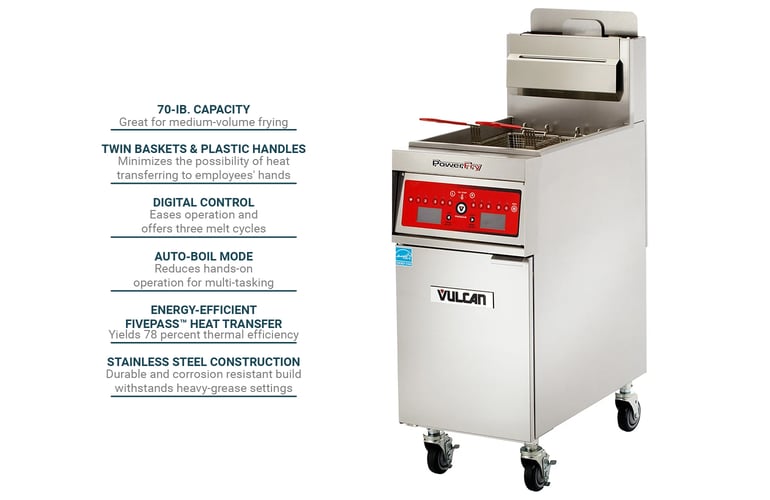

Product Details

• Part of the PowerFry5™ series
• 70-lb. oil capacity
• Includes twin baskets that utilize plastic-coated handles
• SoftStart ignition gradually warms oil
• Heat transfer system uses energy-conserving FivePass technology
• Stainless steel frame, cabinet, and frypot
• 1¹/₄-in. full port ball type drain valve
• 2 of (4) 6-in. adjustable casters lock
• Hi-limit shutoff
• Uses 4,802 BTUs per hour to maintain set temperatures in idle mode
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 80,000 BTU

Solid-state Digital Controls

• Electronic ignition
• Temperature control range: 200-390 degrees F
• 3 melt cycles
• 2 countdown timers
• Automatic boil out mode
• Displays temperature in Fahrenheit and Celsius
• Cooks with compensating time or actual time

Filtration System

• 110-lb.-capacity stainless steel filter pan
• Stainless steel mesh filter creates filter area of 270 sq. in.
• Motor and pump are push-button activated
• 8-GPM pump and motor
• Shuts off burners during oil draining with drain valve interlock switch
• Hands-free oil-return tube
• Tank brush and clean-out rod

Dimensions & Utilities

• Fry tank: 19¹/₂ in. W x 14 in. D
• Fry Basket:(2) 9¹/₄ in. W x 13¹/₄ in. D x 6 in. H
• Overall:21 in. W x 30 ¹/₈ in. D x 47¹/₈ in. H
• 7 A, ¹/₃ HP
• 115 V/60 Hz/ 1 ph, cord with NEMA 5-15P plug
• Natural gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 1VK65DF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 21" W, free-standing, 65-70 lbs. capacity, solid state digital control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 80,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1VK65DF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
