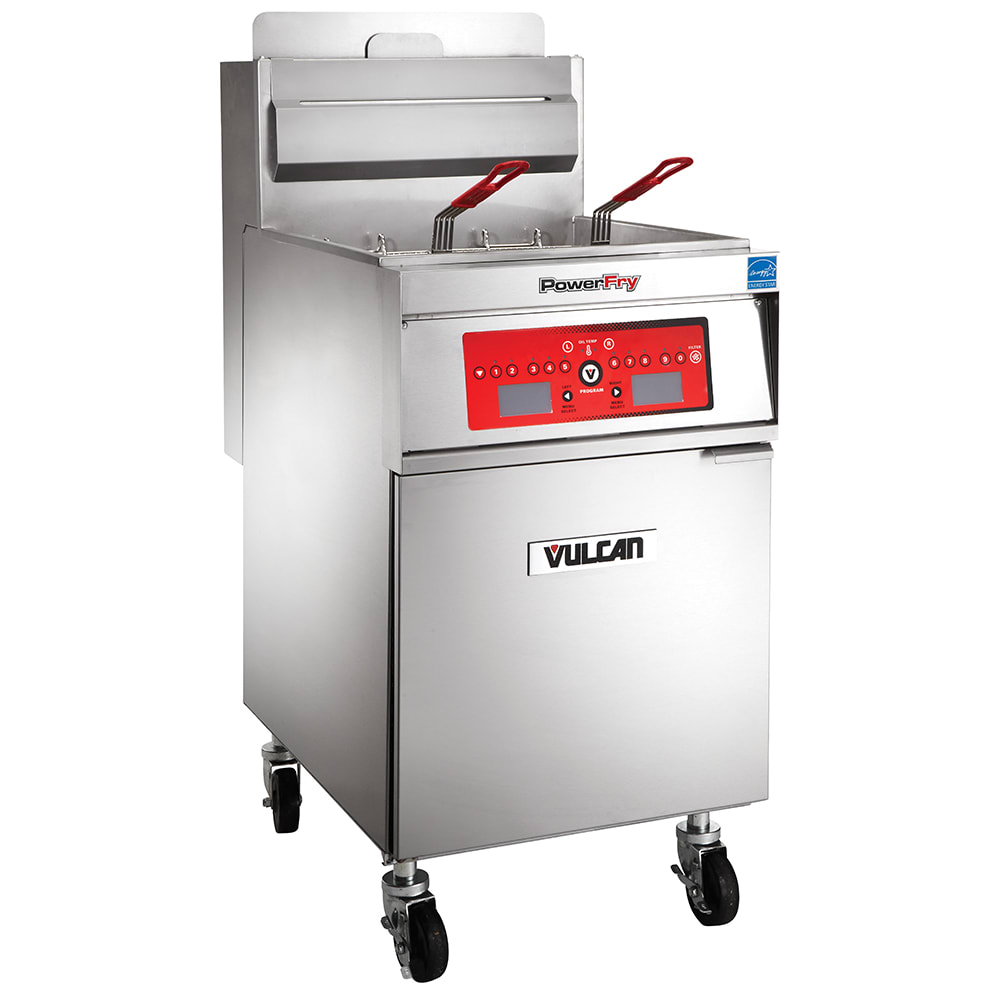

Vulcan 1VK65C Gas Fryer - (1) 70 lb Vat, Floor Model, Liquid Propane

For high-intensity back-of-house operations, the Vulcan 1VK65C gas fryer is made of stainless steel and features a 19¹/₂-inch-wide by 14-inch-deep fry tank that can hold 70 pounds of oil. To ease the process of preparing fried fish, chicken, and dumplings, its included 9¹/₄-inch-wide by 13¹/₄-inch-deep by 6-inch-high twin fry baskets feature plastic handles to minimize heat transfer to hands. This unit is powered by liquid propane and uses computer controls to maintain set temperatures between 200 to 390 degrees Fahrenheit; these controls also feature ten menu timers that display product names and cook times. It outputs 80,000 BTUs overall, though it utilizes a SoftStart™ ignition the slowly warms oil and FivePass™ heat transfer system that evenly disperses heat to conserve energy.

Overall, the Vulcan 1VK65C gas fryer measures 21 inches wide by 30¹/₈ inches deep by 47¹/₈ inches high and is mounted on four 6-inch casters that facilitate maneuvering. Two of the casters come with locking mechanisms, keeping the unit stable during operation. After business hours, employees can utilize its 1¹/₄-inch full-port drain valve, tank brush, and clean-out rod to streamline cleaning.

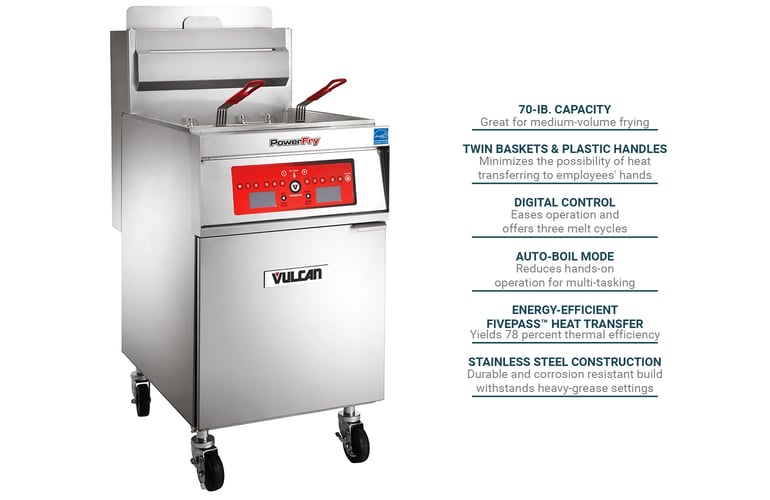

Product Details

• Part of the PowerFry5™ series
• 70-lb oil capacity
• Twin baskets featuring plastic-coated handles
• Stainless steel frame, cabinet, and fry tank
• Energy-efficient FivePass system transfers heat
• SoftStart electronic ignition system slowly warms oil to prevent scorching
• 1¹/₄-in. full port ball type drain valve
• 2 of (4) 6-in. adjustable casters feature locks
• Idle mode maintains set temperatures using just 4,802 BTUs per hour
• Hi-limit shutoff mechanism
• Tank brush and clean-out rod included
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 80,000 BTU

Computer Controls

• Electronic ignition
• Temperature control range: 200-390 degrees F
• Features 10 menu timers that display product name and cook time
• Offline programming of menu items through USB control interface
• 3 melt modes
• Can cook with compensating time or actual time

Dimensions & Utilities

• Fry tank: 19¹/₂ in. W x 14 in. D
• Fry basket: (2) 9¹/₄ in. W x 13¹/₄ in. D x 6 in. H
• Overall: 21 in. W x 30¹/₈ in. D x 47¹/₈ in. H
• Powered by liquid propane
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 1VK65C within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 21" W, free-standing, 65-70 lbs. capacity, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 80,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1VK65C Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
