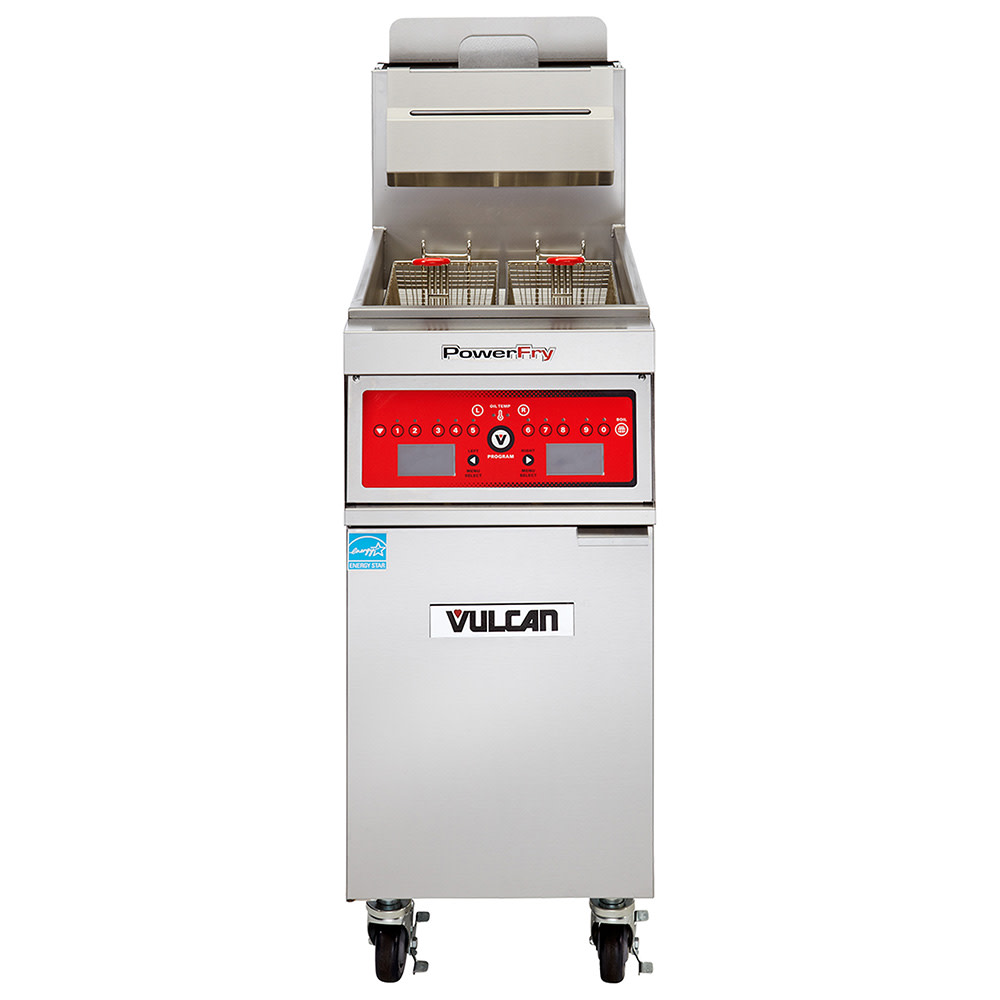

Vulcan 1VK65A Gas Fryer - (1) 70 lb Vat, Floor Model, Liquid Propane

Great for conserving energy during operation, the Vulcan 1VK65A gas fryer outputs 80,000 BTUs while utilizing its FivePass™ heat transfer system that yields 78 percent thermal efficiency and 68 percent cooking efficiency. Additionally, this fryer features SoftStart™ ignition that extends oil life by slowly warming oil during initial startup, preventing burning or scorching. Once the set temperature is reached, the idle setting maintains it using just 4,802 BTUs per hour. This unit can be set between 200 and 390 degrees Fahrenheit and is controlled with solid-state analog knob controls, which also feature user-selectable fat-melt modes. Because it runs on liquid propane, it heats quicker than natural gas alternatives.

Overall, the Vulcan 1VK65A gas fryer measures 21 inches wide by 30¹/₈ inches high by 47¹/₈ inches deep with an integrated 19¹/₂-inch-wide by 14-inch-deep fry tank capable of holding 70 pounds of oil. Users can utilize the twin fry baskets that sport plastic-coated handles, easing removal from or insertion to oil by minimizing heat transfer to palms. Made of stainless steel, it's durable and corrosion resistant; it also includes a 1¹/₄-inch full port drain valve, tank brush, and clean-out rod to ease maintenance. For maneuverability, it sits on a set of four 6-inch casters, two of which can be locked in place when needed.

Product Details

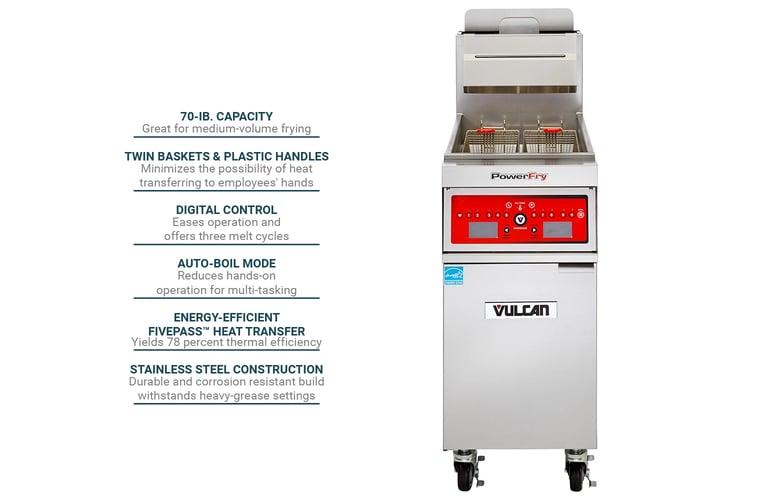

• Part of the PowerFry5™ series
• 70-lb. oil capacity
• Twin baskets feature plastic handles to minimize heat transfer
• SoftStart ignition gradually warms oil to prevent scorching
• Idle mode maintains set temperatures at just 4,802 BTUs per hour
• FivePass heat transference system evenly disperses heat
• Stainless steel cabinet and frypot
• Tank brush and clean out rod
• 1¹/₄-in. full port ball type drain valve
• (4) 6-in. adjustable casters (2 lock)
• Hi-limit shutoff mechanism
• Working height of 36¹/₄ in.
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 80,000 BTU

Solid-state Analog Controls

• Electronic ignition
• Temperature can be set between 200 and 390 degrees F
• User-selectable fat-melt mode
• Behind cabinet door

Dimensions & Utilities

• Fry tank: 19¹/₂ in. W x 14 in. D
• Fry basket: (2) 9¹/₄ in. W x 13¹/₄ in. D x 6 in. H
• Overall: 21 in. W x 30 ¹/₈ in. D x 47¹/₈ in. H
• Powered by LP gas

Product Features

*Free shipping on Vulcan 1VK65A within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 21" W, free-standing, 65-70 lbs. capacity, solid state analog knob control with melt cycles, FivePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 80,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1VK65A Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
