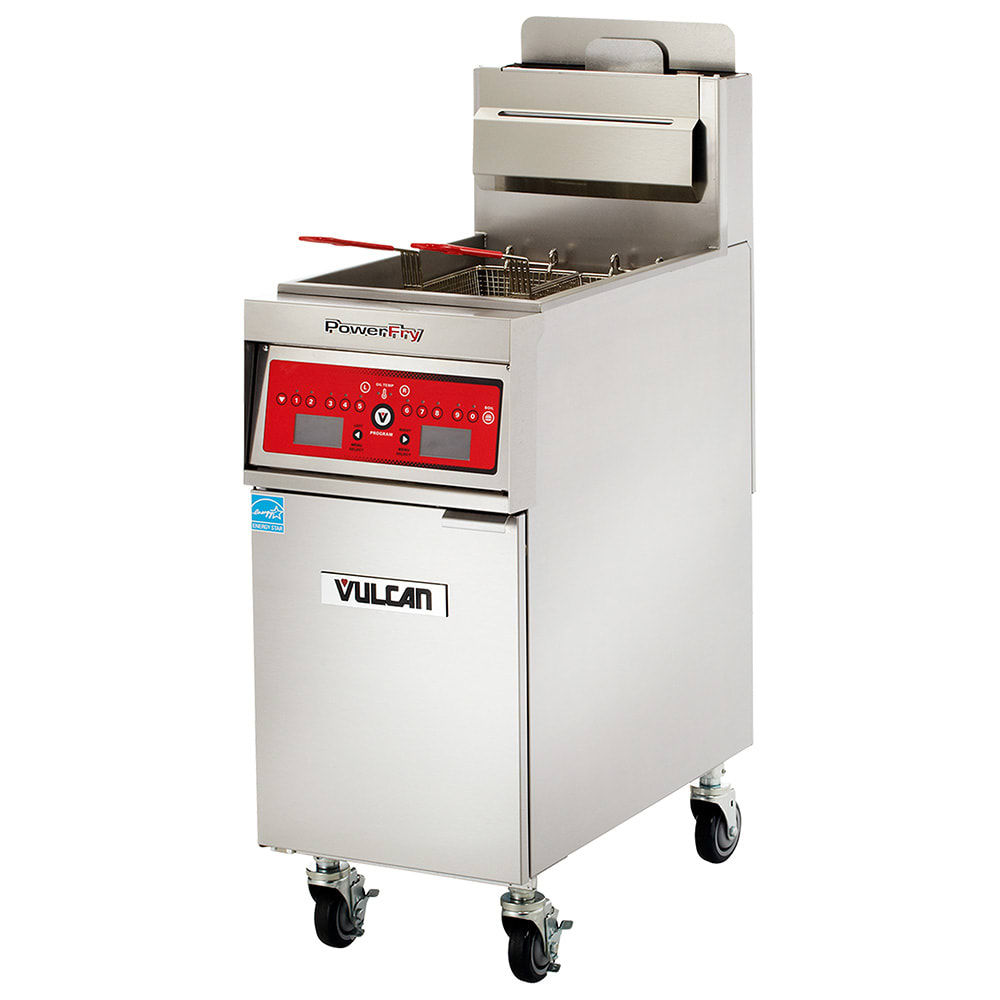

Vulcan 1VK65AF Gas Fryer - (1) 70 lb Vat, Floor Model, Liquid Propane

The Vulcan 1VK65AF gas fryer can hold up to 70 pounds of oil and features a KleenScreen® filtration system to extend the oil life over time. This system is push-button activated, and its motor and pump circulate oil at 8 gallons per minute. To establish a filter area of 270 square inches, it features a stainless steel mesh screen that filters from two sides. This unit can be set to a specific temperature between 200 and 390 degrees Fahrenheit using the solid-state analog controls. For use with solid shortening, these controls include user-selectable fat-melt modes. It boasts a SoftStart™ ignition system that slowly warms oil to prevent scorching, while the FivePass™ heat system evenly distributes heat to oil to yield 78 percent thermal efficiency and 68 percent cooking efficiency.

Overall, the Vulcan 1VK65AF gas fryer measures 21 inches wide by 30¹/₈ inches deep by 47¹/₈ inches high. This heavy-duty unit is made of stainless steel and boasts a 19¹/₂-inch-wide by 14-inch-deep fry tank that resists corrosion and residue left from grease and oil. To streamline cleaning after operation, its 1¹/₄-inch full port ball type drain valve helps hasten oil removal, while the included tank brush and clean-out rod enable precise cleaning. For efficient transportation and mobility on any floor surfaces, it sits on a set of four 6-inch adjustable casters. Once it reaches an ideal location, two of its wheels can be locked to ensure stability during operation.

Product Details

• Part of the Power Fry™ series
• 70-Ib. oil capacity
• Twin baskets feature plastic-coated handles
• Energy saving SoftStart ignition system
• FivePass™ system evenly transfers heat
• Stainless steel frypot and cabinet
• (4) 6-in. adjustable casters
• 1¹/₄-in. full port ball type drain valve
• Hi-limit shutoff mechanism
• Idle setting maintains set temperature using 4,802 BTUs per hour
• Working height of 36¹/₄ in.
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 80,000 BTU

Solid-state Analog Controls

• Electronic ignition
• Can be set to temperatures between 200 and 390 degrees F
• Fat-melt mode is user selected
• Behind cabinet door

Filtration System

• Stainless steel mesh filter works from 2 sides to establish a 270-sq.-in. filter area
• Tank brush and clean out rod
• Drain valve interlock shuts off burners during oil draining
• Motor and pump circulate oil at 8 GPM
• Hands-free oil-return tube
• Motor and pump are button activated
• Stainless steel oil pan sports 110-lb capacity

Dimensions & Utilities

• Fry tank: 19¹/₂ in. W x 14 in. D
• Fry basket:(2) 9¹/₄ in. W x 13¹/₄ in. D x 6 in. H
• Overall: 21 in. W x 30 ¹/₈ in. D x 47¹/₈ in. H
• 7 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by liquid propane
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 1VK65AF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, LP gas, high efficiency, 21" W, free-standing, 65-70 lbs. capacity, solid state analog knob control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 80,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1VK65AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
