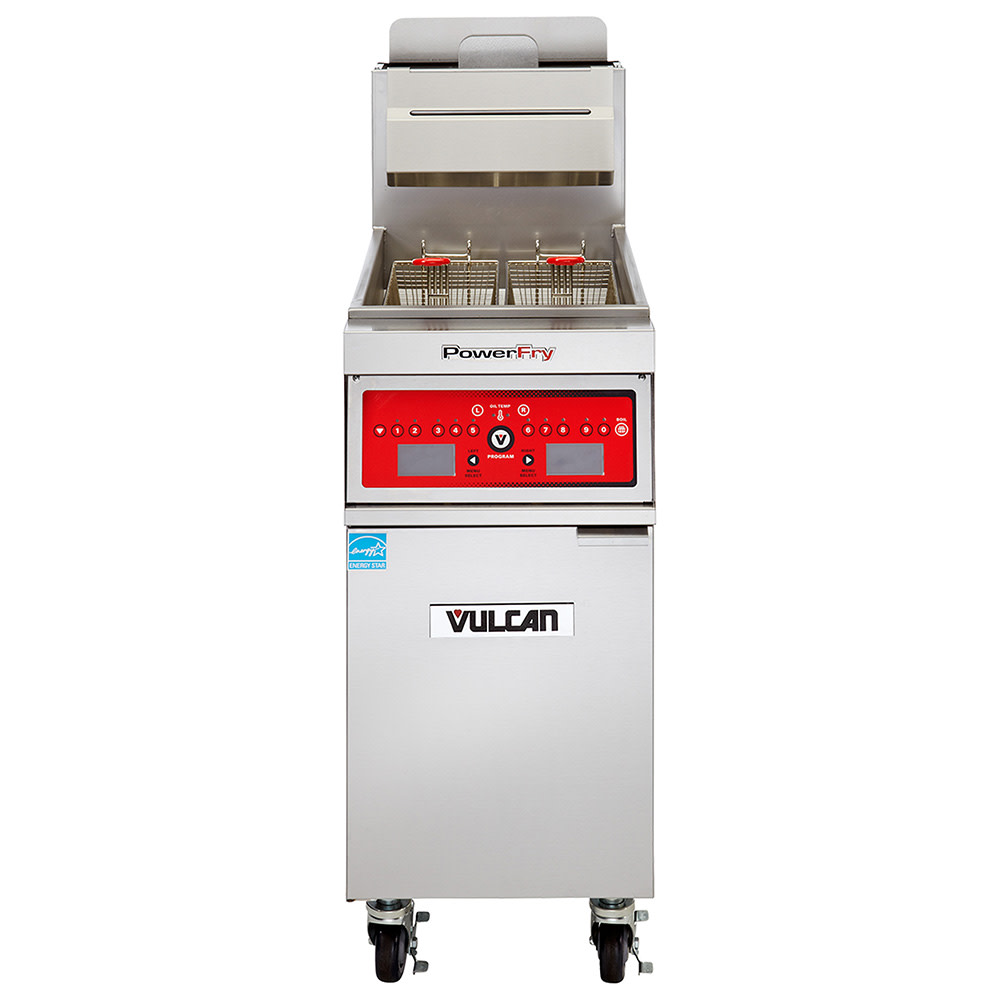

Vulcan 1VK45C Gas Fryer - (1) 50 lb Vat, Floor Model, Natural Gas

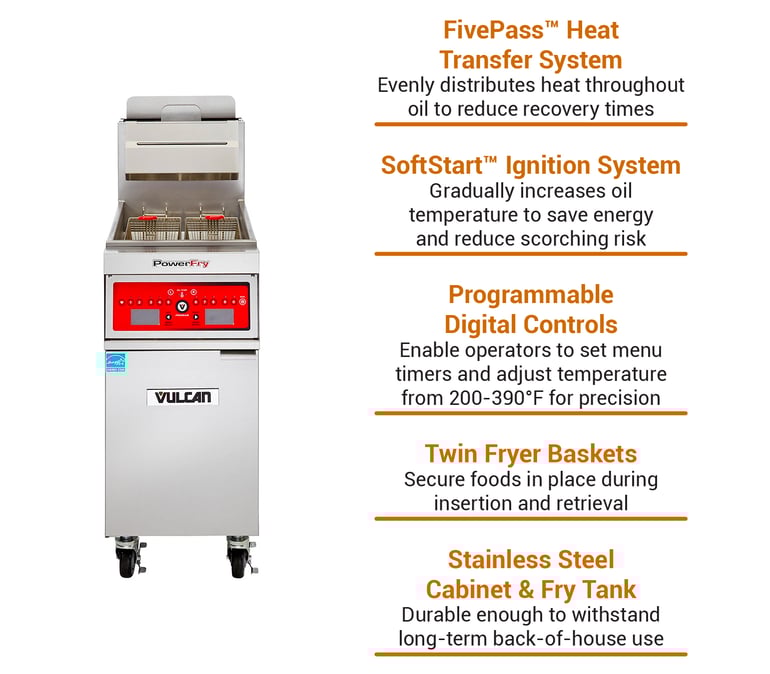

Because it's part of the PowerFry5™ series, the Vulcan VK45C commercial gas fryer is built with the FivePass™ heat transfer system that effectively distributes heat throughout oil to minimize cooking times and reduce recovery lag. This unit's 14-inch-wide by 14-inch-deep frypot accommodates 50 pounds of cooking oil and features a large V-shaped cold zone beneath the burners to collect sediment, preventing it from burning and affecting oil quality. To further extend oil life, its SoftStart™ ignition system gradually increases oil temperature upon startup. Staff can upload 10 timers, activate one of three melt modes, and set temperature between 200 and 390 degrees Fahrenheit using the programmable computer controls. To save energy once the set temperature is reached, the idle temperature mode maintains temperature by only outputting 4,251 BTUSs per hour.

The Vulcan VK45C commercial gas fryer is a 15¹⁄₂-inch-wide by 30¹⁄₈-inch-deep by 47¹⁄₈-inch-tall unit made of durable, corrosion-resistant stainless steel. It's positioned on four 6-inch casters for smooth mobility. While its 36¹⁄₄-inch working height enhances user comfort, the two included fryer baskets simplify lowering food into the vat and lifting it from hot oil. The baskets' handles are coated with plastic to minimize heat transfer for user safety.

Product Details

• Featured in the PowerFry5 series
• Frypot can hold 50 lbs. of oil
• Freestanding unit with 36¹⁄₄-in. working height
• Rugged, corrosion-resistant stainless steel frypot and cabinet
• Includes 2 fryer baskets with plastic-coated handles
• Tank brush and clean-out rod for cleaning
• 1¹⁄₄-in. port ball-type drain valve
• Positioned on (4) 6-in. casters (2 locking)
• Electronic matchless ignition
• Energy-saving SoftStart ignition system causes unit to output 35,000 BTUs
• FivePass mechanism reduces recovery time by uniformly distributing heat
• Idle temperature setting maintains set temperatures by outputting 4,251 BTUs per hour
• Flue temperature remains under 500 degrees Fahrenheit at the unit's maximum production rate
• Hi-limit shutoff mechanism
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 70,000 BTU

Computer Control System

• Programmable computer controls with digital character display
• Operating temperature range: 200-390 degrees F
• Temperature display in Fahrenheit or Celsius
• 10 menu timers
• 3 melt modes
• USB interface with software for offline programming

Dimensions & Utilities

• Tank: 14 in. W x 14 in. D
• Overall: 15¹⁄₂ in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• Powered by natural gas
• ³⁄₄-in. OD rear gas connection

Product Features

*Free shipping on Vulcan 1VK45C within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 15-1/2" W, free-standing, 45-50 lbs. capacity, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 70,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1VK45C Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
