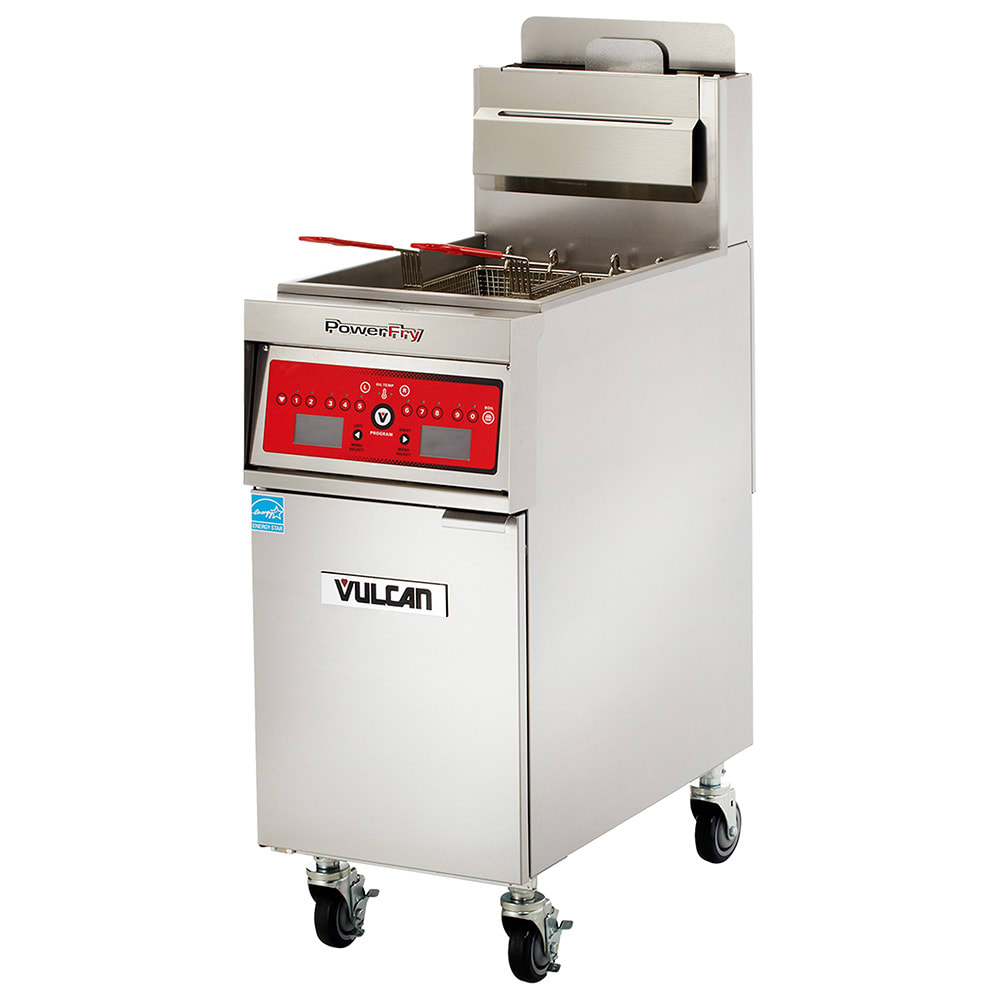

Vulcan 1VK45CF Gas Fryer - (1) 50 lb Vat, Floor Model, Natural Gas

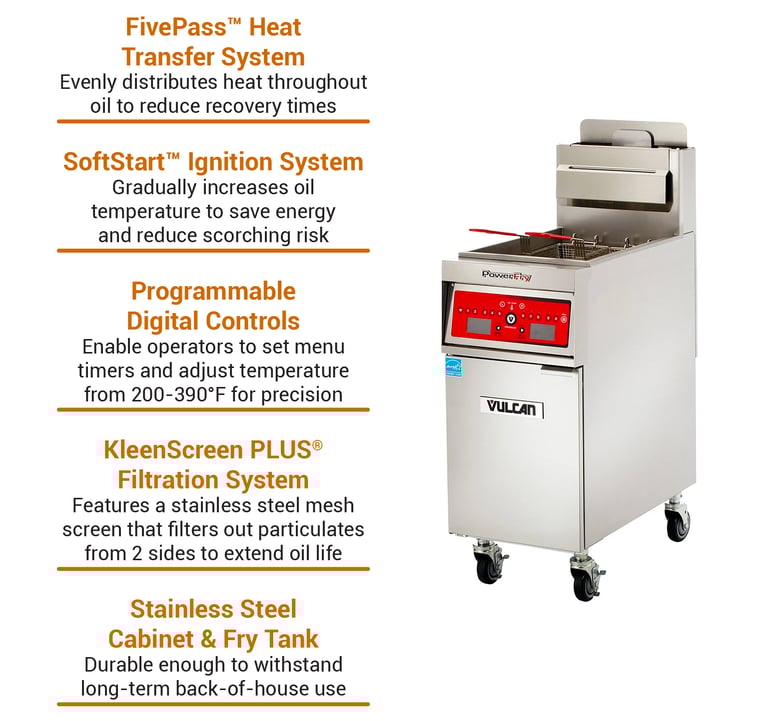

To streamline operation, the Vulcan 1VK45CF PowerFry5™ commercial gas fryer is equipped with programmable computer controls. Employees can adjust temperatures from 200 to 390 degrees Fahrenheit, upload 10 menu timers directly on the unit or via a USB software, and choose from three melt cycles. Its 14-inch-wide by 14-inch-deep frypot accommodates 50 pounds of oil, and because it's built with the FivePass™ heat transfer system, heat is evenly distributed to expedite cooking and reduce recovery times. To minimize the risk of scorching oil, its SoftStart™ ignition system causes the unit to output 35,000 BTUs per hour so oil is gradually heated. The idle temperature setting maintains desired temperatures while only outputting 4,251 BTUs per hour to conserve energy.

Staff can simply lower foods into the vat using the twin fryer baskets. To reduce the risk of heat transfer for employee safety, the baskets' handles are coated in plastic. During frying, sediment can settle in the V-shaped cold zone beneath the burners. Because this area is cooler than the top section of the frypot, debris is less likely to burn, which could impact the oil's taste. This fryer features the KleenScreen PLUS® filtration system, which uses a stainless steel mesh filter screen to filter out particles from two sides, further prolonging oil's life. Operators can activate a filtration cycle with the push of a button, and the pump and motor's 8-gallon-per-minute flow rate expedites the filtration process. The 18-gauge stainless steel filter pan can hold 70 pounds of fry compound, and for thorough sanitization after use, it can be run through a dishmachine cycle.

The Vulcan 1VK45CF freestanding commercial fryer measures 15¹⁄₂ inches wide by 30¹⁄₈ inches deep by 47¹⁄₈ inches tall to save space in compact kitchens. While its 36¹⁄₄-inch working height enhances employee comfort, its four 6-inch casters simplify transport. Two of the casters can be locked to ensure the unit remains stable during frying. For lasting durability and corrosion resistance, the cabinet and frypot are made of stainless steel. This fryer is built with a 1¹⁄₄-inch full-port ball-type drain valve and comes with a tank brush and clean-out rod to ease cleaning.

Product Details

• Part of the PowerFry5 line
• Frypot capacity: 50 lbs.
• Electronic matchless ignition
• SoftStart ignition system gradually warms oil
• FivePass mechanism uniformly distributes heat throughout cooking oil for efficiency
• Idle temperature setting maintains set temperatures
• Flue temperature doesn't exceed 500 degrees Fahrenheit at the unit's maximum production rate
• Hi-limit shutoff
• Freestanding model with 36¹⁄₄-in. working height
• Stainless steel cabinet and frypot
• Twin fryer baskets built with plastic-coated handles
• Tank brush and clean-out rod included for cleaning
• 1¹⁄₄-in. port ball-type drain valve
• (4) 6-in. casters (2 casters can be locked)
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 70,000 BTU

Computer Control System

• Programmable computer controls
• Digital character display
• Operating temperature range: 200-390 degrees F
• Temperature display in Fahrenheit or Celsius
• 10 menu timers
• USB interface with software for offline programming
• 3 melt modes

Filtration System Details

• Stainless steel mesh filter screen filters from 2 sides
• Filtration area: 270-350 sq. in.
• 1-touch button activates motor and pump
• Drain valve interlock switch
• 8-GPM flow rate for motor and pump
• Boil Out By-Pass™ mechanism eliminates boil-out solution
• Hands-free oil-return tube
• Dishwasher-safe, lightweight 1-piece filter pan

Dimensions & Utilities

• Tank: 14 in. W x 14 in. D
• Overall: 15¹⁄₂ in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• 7 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by natural gas
• ³⁄₄-in. OD rear gas connection

Product Features

*Free shipping on Vulcan 1VK45CF within the 48 contiguous states.

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 15-1/2" W, free-standing, 45-50 lbs. capacity, programmable computer control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 70,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1VK45CF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
