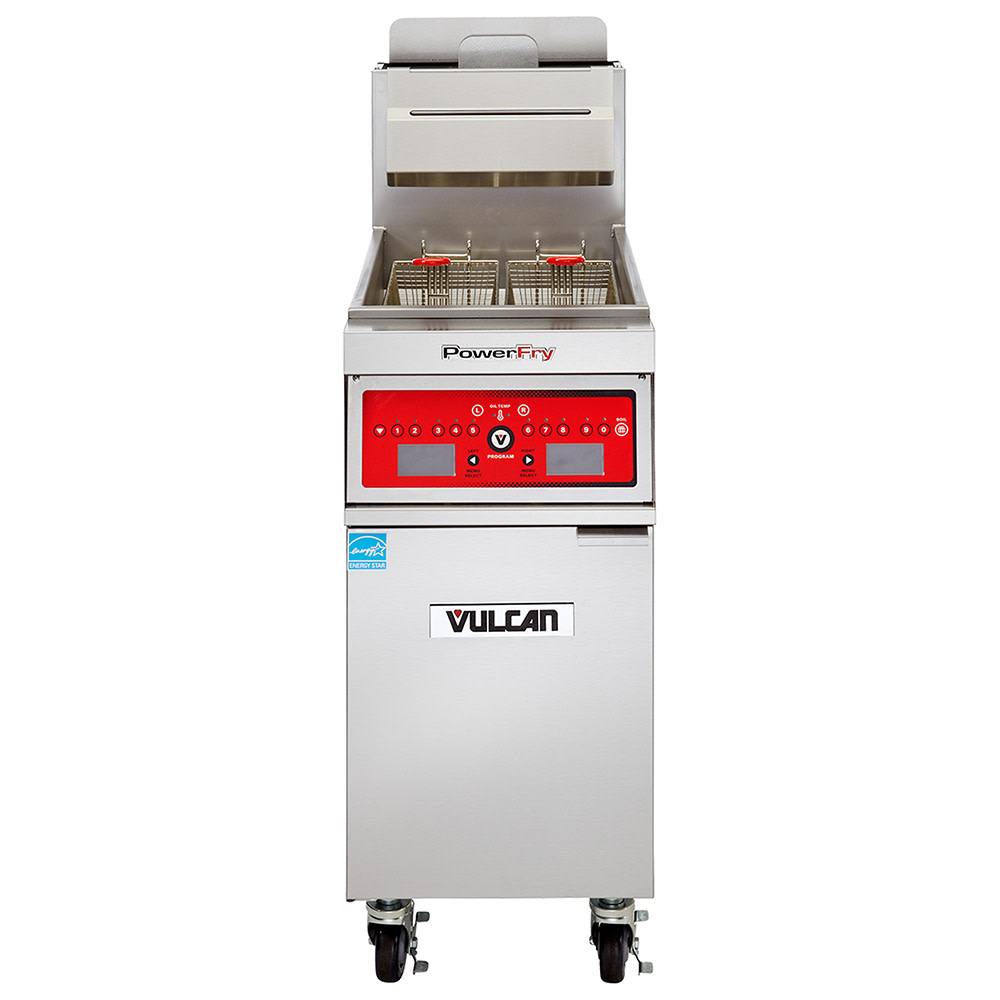

Vulcan 1TR85D Gas Fryer - (1) 90 lb Vat, Floor Model, Natural Gas

The Vulcan 1TR85D PowerFry3™ freestanding fryer is a high-efficiency model that operates with natural gas and can output 90,000 BTUs per hour. Its 19¹⁄₂-inch-wide by 18¹⁄₄-inch-deep vat accommodates 90 pounds of oil to keep up with medium- and high-traffic restaurant demands. With the solid-state digital controls, employees can set oil temperature from 200 to 290 degrees Fahrenheit, set two countdown timers, initiate an automatic boil-out mode, and select one of three melt modes. To prevent scorched oil, the SoftStart™ ignition system outputs 45,000 BTUs per hour to raise oil temperature slowly. Its ThreePass™ heat transfer system efficiently moves heat from the burners to the oil to establish 60 percent cooking efficiency and 72 percent thermal efficiency. When the unit reaches the set temperature, it only outputs 5,575 BTUs to maintain it.

To keep contents contained as they're fried, the Vulcan 1TR85D commercial floor-model fryer includes twin fryer baskets. Their plastic-coated handles enhance user safety by minimizing heat transfer. For long-term back-of-house use, the cabinet and frypot are made of stainless steel—a durable metal that resists corrosion and simplifies cleaning. This 21-inch-wide by 34³⁄₈-inch-deep by 47¹⁄₈-inch-tall unit provides a 36¹⁄₄-inch working height, and it's positioned on four 6-inch casters to simplify repositioning for cleaning or maintenance.

Product Details

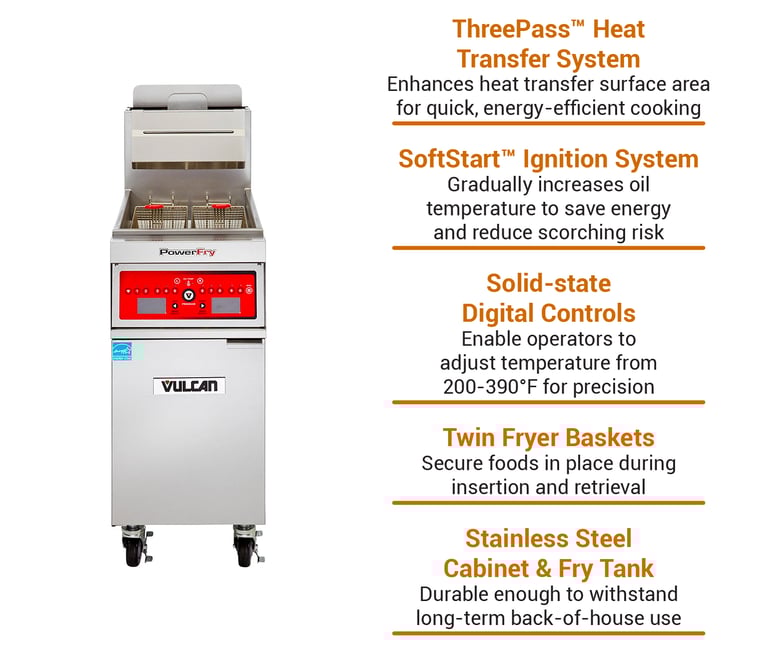

• Featured in the PowerFry3 series
• Frypot accommodates 90 lbs. of oil
• Electronic matchless ignition
• SoftStart ignition system minimizes risk of scorching oil
• ThreePass mechanism effectively transfers heat from burners to oil
• 60 percent cooking efficiency and 72 percent thermal efficiency
• Idle temperature setting maintains set temperatures while outputting 5,575 BTUs per hour
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff
• Freestanding unit with 1 frypot
• 36¹⁄₄-in. working height
• Corrosion-resistant stainless steel cabinet and frypot
• Twin fryer baskets featuring plastic-coated handles
• Includes tank brush and clean-out rod
• 1¹⁄₄-in. port ball-type drain valve
• Equipped with (4) 6-in. casters (2 locking)
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 90,000 BTU

Solid-state Digital Controls

• Operating temperature range: 200-390 degrees F
• Temperatures can be displayed in Fahrenheit or Celsius
• Cooks with compensating time or actual time
• Automatic boil-out mode
• 3 melt modes
• 2 countdown timers

Dimensions & Utilities

• Tank: 19¹⁄₂ in. W x 18¹⁄₄ in. D
• Overall: 21 in. W x 34³⁄₈ in. D x 47¹⁄₈ in. H
• Powered by natural gas
• Includes 120-volt cord and NEMA 5-15P plug
• ³⁄₄-in. OD rear gas connection

Product Features

*Free shipping on Vulcan 1TR85D within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 21" W, free-standing, 85-90 lbs. capacity, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 90,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR85D Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Catalog
