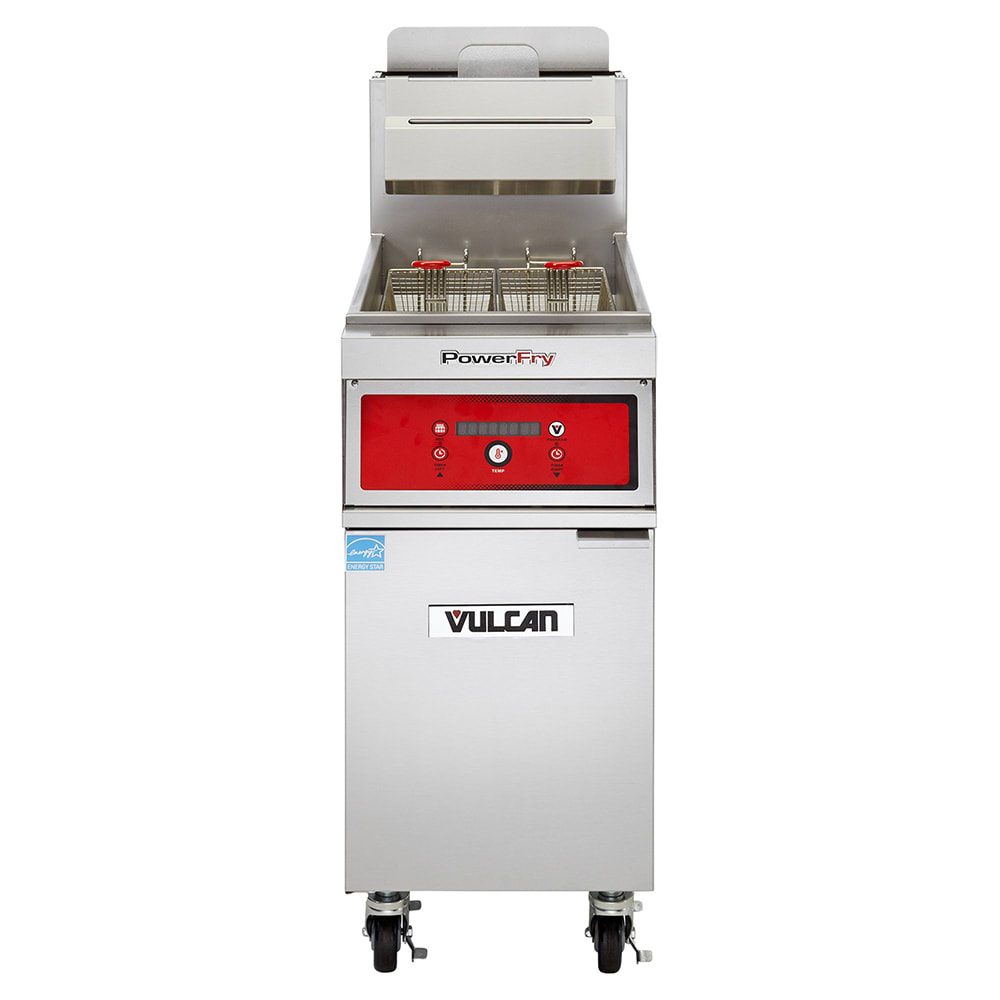

Vulcan 1TR85DF Gas Fryer - (1) 90 lb Vat, Floor Model, Liquid Propane

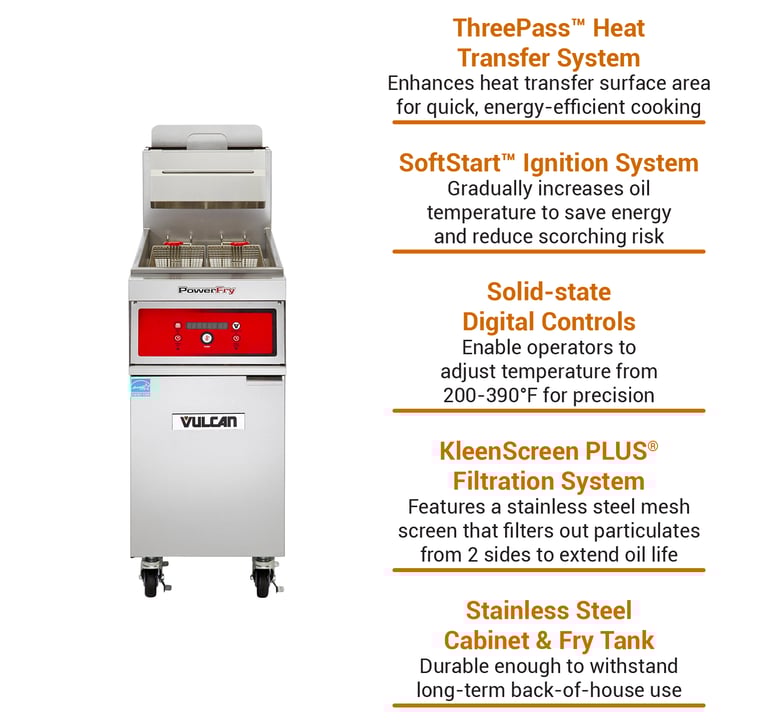

Designed to enhance energy efficiency while reducing cook times, the Vulcan 1TR85DF PowerFry3™ gas fryer features a 90-pound-capacity, 19¹⁄₂-inch-wide by 18¹⁄₄-inch-deep frypot and uses a ThreePass™ heat transfer system to maximize heat transfer from the burners to the oil. For simple startup, this unit features electronic ignition, and operators can set unit temperatures between 200 and 390 degrees Fahrenheit with the digital display. To accommodate solid shortening, it includes three melt modes. Users can set two countdown timers to minimize the chance of undercooking or burning product. The SoftStart™ ignition system outputs 45,000 BTUs per hour to increase oil temperature slowly and reduce the risk of scorching the oil.

Once the desired temperature is reached, staff can initiate the idle temperature setting, which only outputs 5,575 BTUs per hour. The flue doesn't exceed 750 degrees Fahrenheit when the unit is operating at a maximum production rate, and a hi-limit shutoff mechanism turns the unit off if temperatures exceed the set range. To extend oil life, this freestanding unit is equipped with the KleenScreen PLUS® filtration system, which features a stainless steel mesh screen that filters out particulates from two sides. Operators can activate the motor or pump with the push of a button for simple operation. Because its motor and pump feature an 8-gallon-per-minute flow rate, they reduce the time required to filter oil. For thorough cleaning, employees can use the Boil Out By-Pass™ mechanism to remove residual boil-out solution. The lightweight, one-piece filter pan can be removed and washed in a dishmachine.

The Vulcan 1TR85DF LP-gas-powered fryer provides a comfortable 36¹⁄₄-inch working height and measures 21 inches wide by 34³⁄₈ inches deep by 47¹⁄₈ inches tall overall. Its stainless steel cabinet and frypot are durable enough to withstand medium- to high-volume back-of-house use. To streamline frying, this unit includes twin fryer baskets with plastic-coated handles to minimize burn risk. Because it's fitted with four 6-inch casters, it's simple to move; two of these casters include brakes to ensure stability during operation. Oil can be drained from the 1¹⁄₄-inch port ball-type drain valve, and the tank brush and clean-out rod simplify cleaning the frypot.

Product Details

• Part of the PowerFry3 collection
• Single vat accommodates 90 lbs. of oil
• Electronic matchless ignition
• SoftStart ignition system outputs 45,000 BTUs per hour while slowly increasing oil temperature
• ThreePass mechanism maximizes heat transfer
• Idle temperature setting maintains heat
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff
• 36¹⁄₄-in. working height
• Freestanding configuration
• Stainless steel cabinet and frypot
• 2 fryer baskets with plastic-coated handles to minimize heat transfer
• Includes tank brush and clean-out rod for cleaning
• 1¹⁄₄-in. port ball-type drain valve
• (4) 6-in. adjustable casters (2 locking)
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 90,000 BTU

Solid-state Digital Controls

• Operating temperature range: 200-390 degrees F
• Digital display with temperatures in Fahrenheit or Celsius
• Can cook with compensating time or actual time
• 3 melt modes
• 2 countdown timers
• Auto boil-out mode

Filtration System Details

• 1-touch button engages motor and pump
• Stainless steel mesh filter screen filters from 2 sides to create a filtration area ranging from 270-350-sq. in.
• Boil Out By-Pass™ mechanism removes boil-out solution
• Drain valve interlock switch shuts off burners when drain valve is opened
• 1-piece filter pan accommodates 110 lbs. of oil and is dishwasher safe
• 8-GPM motor and pump
• Hands-free oil-return tube

Dimensions & Utilities

• Tank: 19¹⁄₂ in. W x 18¹⁄₄ in. D
• Overall: 21 in. W x 34³⁄₈ in. D x 47¹⁄₈ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by LP gas
• ³⁄₄-in. OD rear gas connection

Product Features

*Free shipping on Vulcan 1TR85DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 21" W, free-standing, 85-90 lbs. capacity, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 90,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR85DF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
