Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

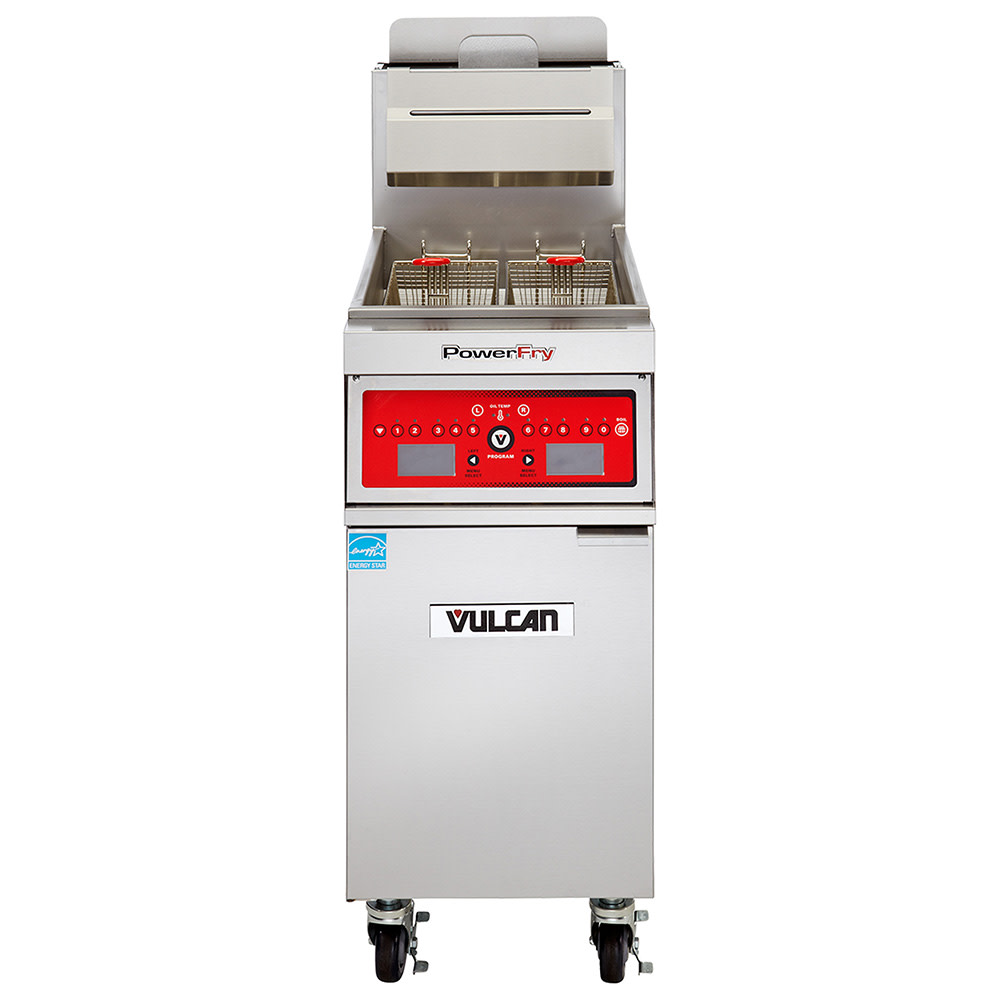

Vulcan 1TR85C Gas Fryer - (1) 90 lb Vat, Floor Model, Liquid Propane
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $28,875.60
$11,887.00 /Each
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 1TR85C Description

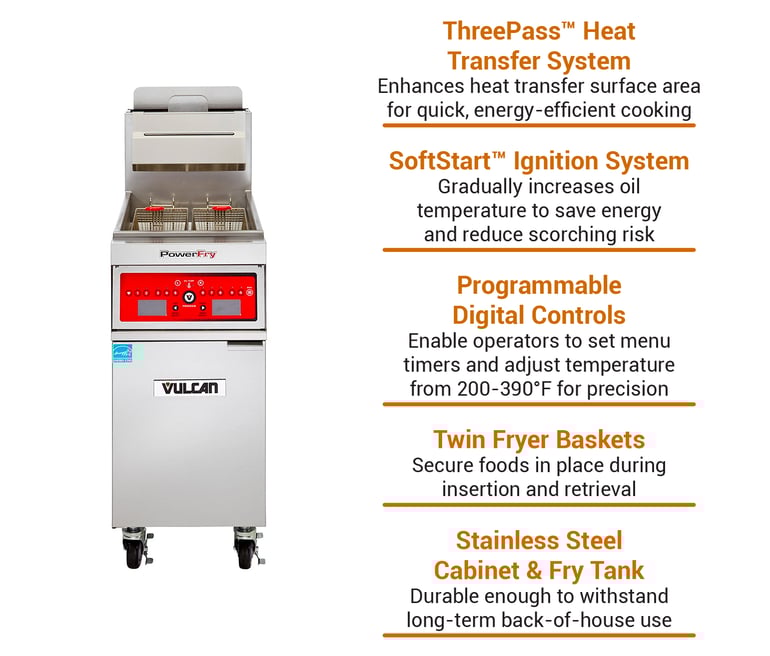

As part of the PowerFry3™ series, the Vulcan 1TR85C commercial gas fryer is ideal for medium- to high-volume operations because it operates with the ThreePass™ heat transfer system. This mechanism uses heat exchange tubes to transfer heat from the burners to the cooking oil for quick and efficient frying. When initially warming up, its SoftStart™ mechanism slowly raises oil temperature, minimizing the risk of scorching oil while outputting 45,000 BTUs per hour to conserve energy. At a maximum, this fryer only outputs 5,575 BTUs per hour to maintain idle temperatures. By using the programmable computer controls, operators can set 10 menu timers and modify oil temperatures from 200 to 390 degrees Fahrenheit. The digital display provides a readout of menu items, cook times, and temperatures so staff can ensure the correct setting has been initiated. To accommodate solid shortening, this control system features three melt modes.
The Vulcan 1TR85C floor model fryer features a 191⁄2-inch-wide by 181⁄4-inch-deep frypot that accommodates 90 pounds of oil—great for frying chicken, fish, okra, pickles, and more. Included twin fryer baskets secure foods in place as they're cooked, and to enhance user safety when lifting the baskets from hot oil, these pieces feature plastic-coated handles that minimize heat transfer. To simplify cleaning, this unit is built with a 11⁄4-inch port ball-type drain valve and includes a tank brush and clean-out rod. For lasting durability and corrosion resistance, the cabinet and fry tank are made of stainless steel. Its 21-inch-wide by 343⁄8-inch-deep by 471⁄8-inch-tall body establishes a comfortable 361⁄4-inch working height. Because it's fitted with four 6-inch casters, it can be moved out of the way when the floor requires cleaning; two of these casters can be locked to ensure the unit remains stable during use.
Product Details
- Part of Vulcan's PowerFry3 series
- 90-lb. vat capacity
- Freestanding model
- 361⁄4-in. working height
- Corrosion-resistant stainless steel cabinet and fry tank
- Mounted on (4) 6-in. adjustable casters (2 with locks)
- Electronic matchless ignition
- SoftStart ignition system gradually raises oil temperature upon startup
- ThreePass heat transfer system yields 60 percent cooking efficiency and 72 percent thermal efficiency
- Energy-saving idle temperature setting outputs 5,575 BTUs per hour
- Flue temperature doesn't exceed 750 degrees F at maximum production rate
- Hi-limit shutoff
- 2 fryer baskets with plastic-coated handles
- 11⁄4-in. port ball-type drain valve
- Includes tank brush and clean-out rod
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 90,000 BTU
Computer Control System
- Programmable computer controls with digital character display
- 10 menu timers
- USB interface enables offline programming
- Operating temperature range: 200-390 degrees F
- Temperature display in Fahrenheit or Celsius
- 3 melt modes
Dimensions & Utilities
- Tank: 191⁄2 in. W x 181⁄4 in. D
- Overall: 21 in. W x 343⁄8 in. D x 471⁄8 in. H
- Powered by LP gas
- Includes 120-volt cord and NEMA 5-15P plug
- 3⁄4-in. OD rear gas connection
Product Features
*Free shipping on Vulcan 1TR85C within the 48 contiguous states.
From The Manufacturer
PowerFry3™ Fryer, LP gas, high efficiency, 21" W, free-standing, 85-90 lbs. capacity, programmable computer control with melt cycles, ThreePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 90,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 1TR85C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 90000 |
| Capacity (lbs) | 90 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 90 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 267.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
