Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
Vulcan 1TR85CF Gas Fryer - (1) 90 lb Vat, Floor Model, Liquid Propane
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $47,149.36
$19,409.00 /Each
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!

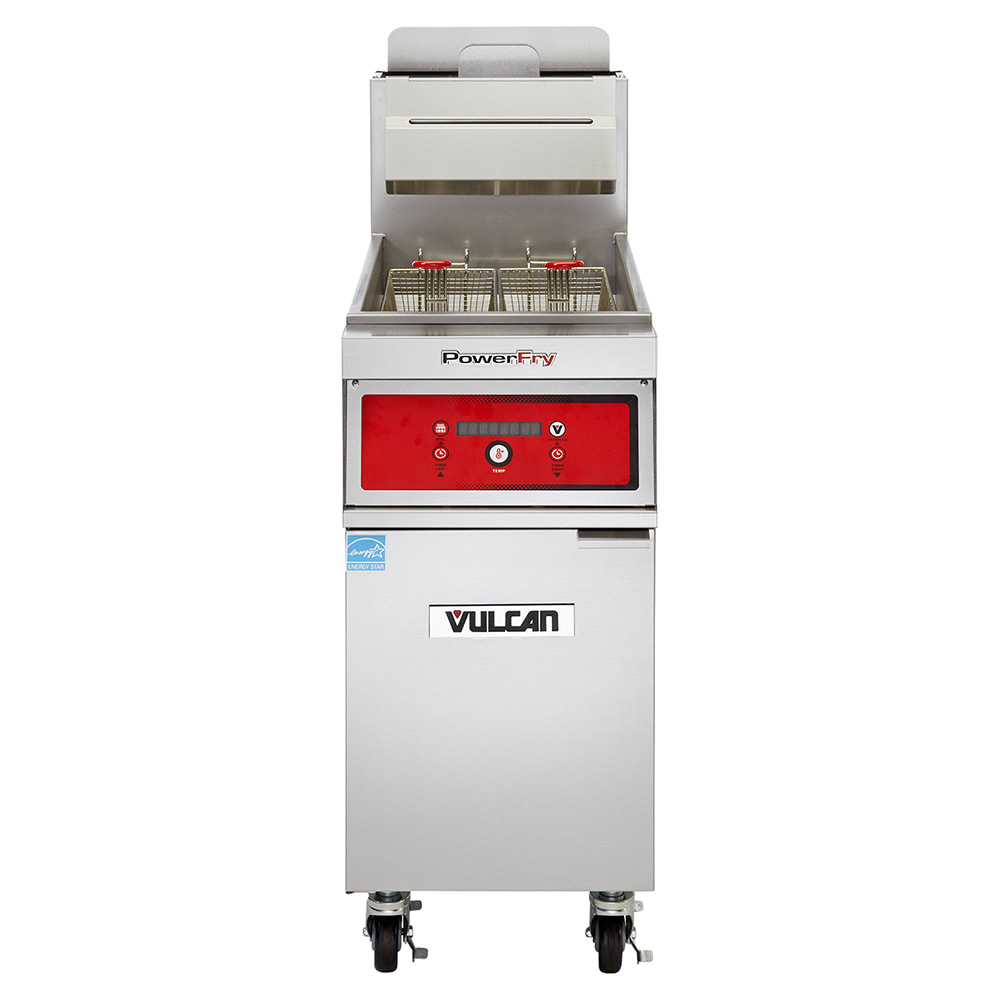

Vulcan 1TR85CF Description

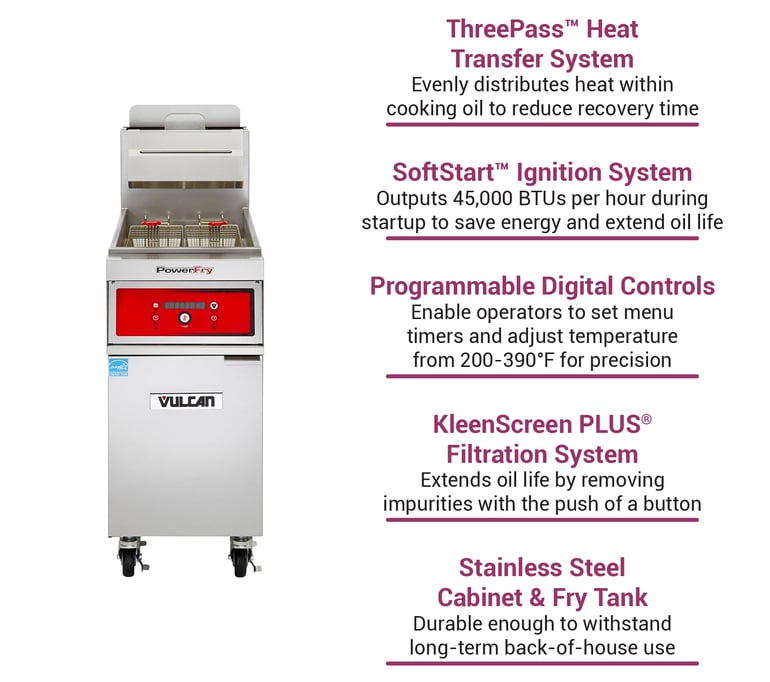

Designed to simplify operation, the Vulcan 1TR85CF PowerFry3™ LP gas fryer is built with programmable computer controls and a digital character display. Operators can set timers for 10 common menu items, and the display will provide readouts of the product name and cook time. By using a USB interface, staff can upload menu timers offline. The unit's temperature can be adjusted from 200 to 390 degrees Fahrenheit, and the digital display provides an accurate readout so employees can ensure foods are cooked at appropriate temperatures. To melt shortening and protect the frypot's welded joints from damage, the control panel features three melt modes.
To conserve energy and maximize efficiency, this fryer features a ThreePass™ heat transfer system, which harnesses energy and evenly distributes heat throughout the oil to yield 72 percent thermal efficiency and 60 percent cooking efficiency. Its SoftStart™ ignition system outputs 45,000 BTUs per hour to heat oil quickly while extending its oil life. To maintain idle temperatures, the fryer only outputs 5,575 BTUs per hour to save energy. With the push of a button, staff can initiate the KleenScreen PLUS® filtration cycle, which removes impurities and prolongs oil life to save operators money.
The Vulcan 1TR85CF high-efficiency commercial fryer is a freestanding unit made of durable, corrosion-resistant stainless steel. Its 21-inch-wide by 343⁄8-inch-deep by 471⁄8-inch-tall structure establishes a comfortable 361⁄4-inch working height. The 191⁄2-inch-wide by 181⁄4-inch-deep frypot can accommodate 90 pounds of oil, and the included fryer baskets can be used in the fry tank simultaneously to contain different foods. To minimize the risk of burns, the baskets' handles are plastic coated. This gas-powered unit is fitted with four 6-inch casters for smooth mobility, and two of the casters can be locked to ensure it remains stable during use.
Product Details
- Part of the PowerFry3 collection
- Frypot accommodates 90 lbs. of oil
- Electronic matchless ignition
- ThreePass heat transfer system enhances cooking and thermal efficiency
- SoftStart ignition system heats oil quickly by outputting 45,000 BTUs per hour
- Outputs 5,575 BTUs per hour to maintain idle temperatures
- Flue temperature doesn't exceed 750 degrees F at maximum production rates
- Hi-limit shutoff mechanism
- KleenScreen PLUS filtration system
- Freestanding unit
- 361⁄4-in. working height
- Stainless steel cabinet and frypot
- (4) 6-in. adjustable casters (2 locking)
- Twin fryer baskets with plastic-coated handles
- 11⁄4-in. port ball-type drain valve
- Includes tank brush and clean-out rod
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 90,000 BTU
Computer Controller
- Programmable computer controls with digital character display
- 10 menu timers
- Menu items can be programmed offline through USB interface (software included)
- Operating temperature control: 200-390 degrees F
- 3 melt modes
- Can cook with compensating time or actual time
Dimensions & Utilities
- Tank: 191⁄2 in. W x 181⁄4 in. D
- Overall: 21 in. W x 343⁄8 in. D x 471⁄8 in. H
- Powered by LP gas
- 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
- 3⁄4-in. OD rear gas connection
Product Features
*Free shipping on Vulcan 1TR85CF within the 48 contiguous states.
From The Manufacturer
PowerFry3™ Fryer, LP gas, high efficiency, 21" W, free-standing, 85-90 lbs. capacity, programmable computer control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 90,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 1TR85CF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 90000 |
| Capacity (lbs) | 90 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 90 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 420.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
