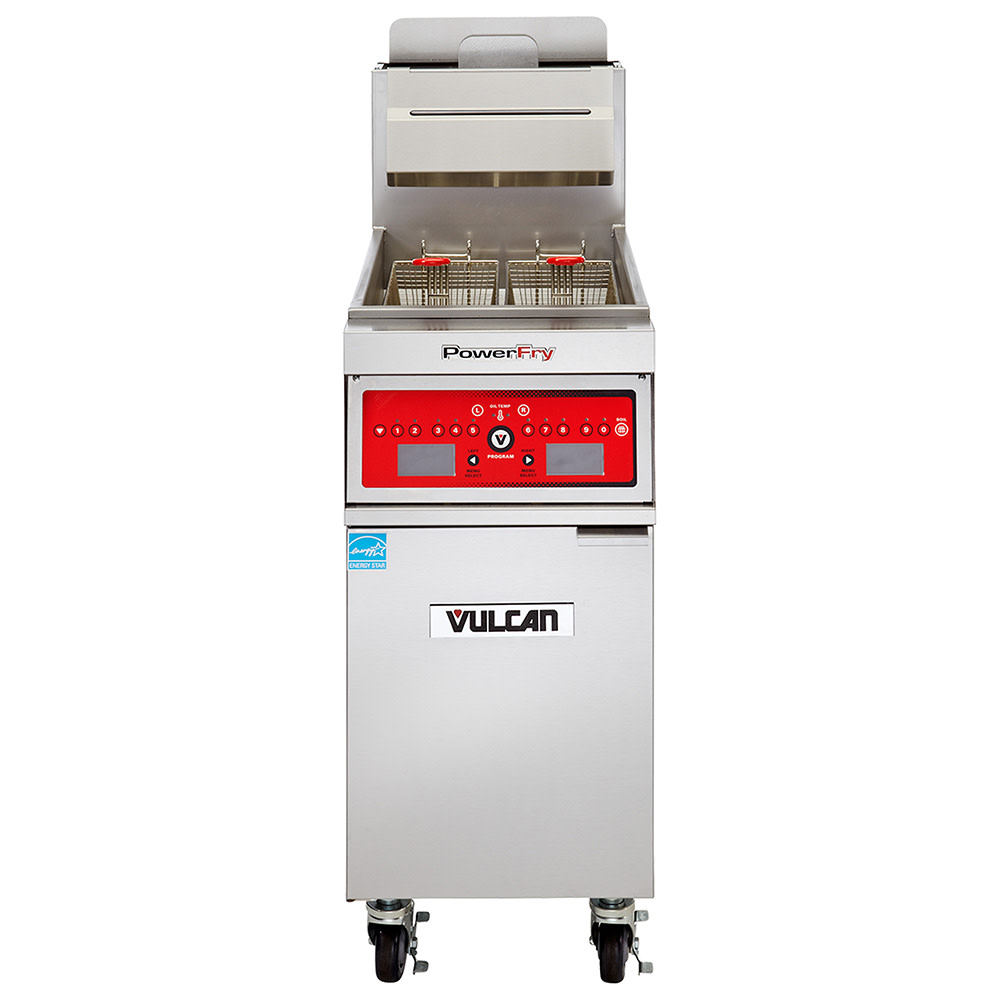

Vulcan 1TR85A Gas Fryer - (1) 90 lb Vat, Floor Model, Liquid Propane

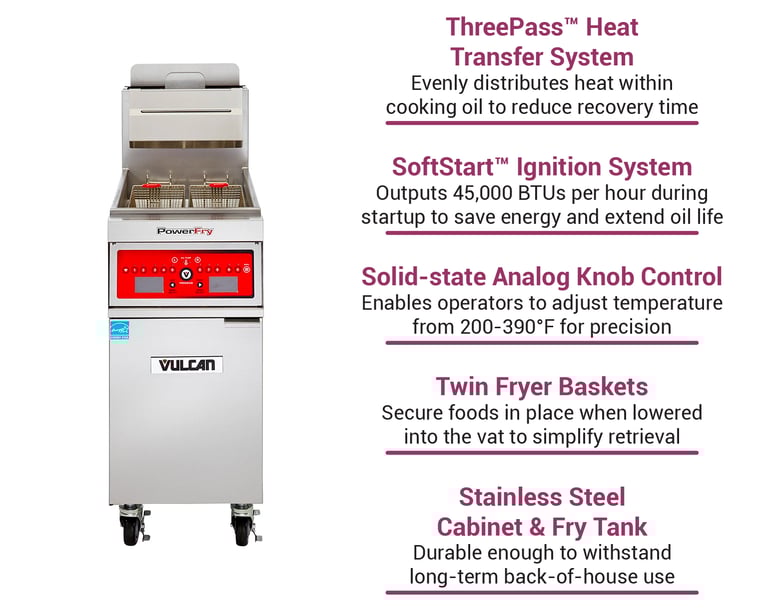

To maximize energy efficiency while uniformly distributing heat throughout cooking oil, the Vulcan 1TR85A PowerFry3™ commercial gas fryer features a ThreePass™ heat transfer system, which yields 60 percent cooking efficiency and 72 percent thermal efficiency. Operators can set the unit's temperature between 200 and 390 degrees Fahrenheit with the solid-state analog knob behind the door. If solid shortening is being used, staff can select one of the control's fat-melt modes to prolong the shortening's life and minimize damage to the frypot's welded joints. The SoftStart™ ignition system quickly heats oil while outputting 45,000 BTUs per hour to extend oil life. Because the unit only outputs 5,575 BTUs per hour when idle, it aids in conserving energy. Overall, the unit's 19¹⁄₂-inch-wide by 18¹⁄₄-inch-deep frypot can hold 90 pounds of oil.

The Vulcan 1TR85A LP-gas-powered freestanding fryer is equipped with twin fryer baskets that contain battered okra, pickles, chicken, and fish during frying. To minimize heat transfer when retrieving the baskets, their handles are coated with plastic. This 21-inch-wide by 34³⁄₈-inch-deep by 47¹⁄₈-inch-tall unit establishes an ergonomic 36¹⁄₄-inch working height. For lasting corrosion-resistant durability, the frypot and cabinet are made of stainless steel. Because it's positioned on four 6-inch smooth-rolling casters, it's simple to move for cleaning or maintenance. Two of the casters can be locked to stabilize the fryer during use.

Product Details

• Part of the PowerFry3 collection
• Accommodates 90 lbs. of oil
• Electronic matchless ignition
• Solid-state analog knob control behind the door
• Operating temperature control: 200-390 degrees F
• Selection of fat-melt modes
• ThreePass heat transfer system effectively harnesses energy for uniform heat distribution
• SoftStart ignition system outputs 45,000 BTUs per hour
• Outputs 5,575 BTUs per hour to maintain idle temperatures
• Flue temperature doesn't exceed 750 degrees F at maximum production rates
• Hi-limit shutoff mechanism
• Freestanding configuration
• 36¹⁄₄-in. working height
• Stainless steel cabinet and frypot
• Mounted on (4) 6-in. adjustable casters (2 can be locked)
• Twin fryer baskets with plastic-coated handles
• 1¹⁄₄-in. port ball-type drain valve
• Includes tank brush and clean-out rod
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 90,000 BTU

Dimensions & Utilities

• Tank: 19¹⁄₂ in. W x 18¹⁄₄ in. D
• Overall: 21 in. W x 34³⁄₈ in. D x 47¹⁄₈ in. H
• Powered by LP gas
• 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
• ³⁄₄-in. OD rear gas connection

Product Features

*Free shipping on Vulcan 1TR85A within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 21" W, free-standing, 85-90 lbs. capacity, solid state analog knob control with melt cycles, ThreePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 90,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR85A Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
