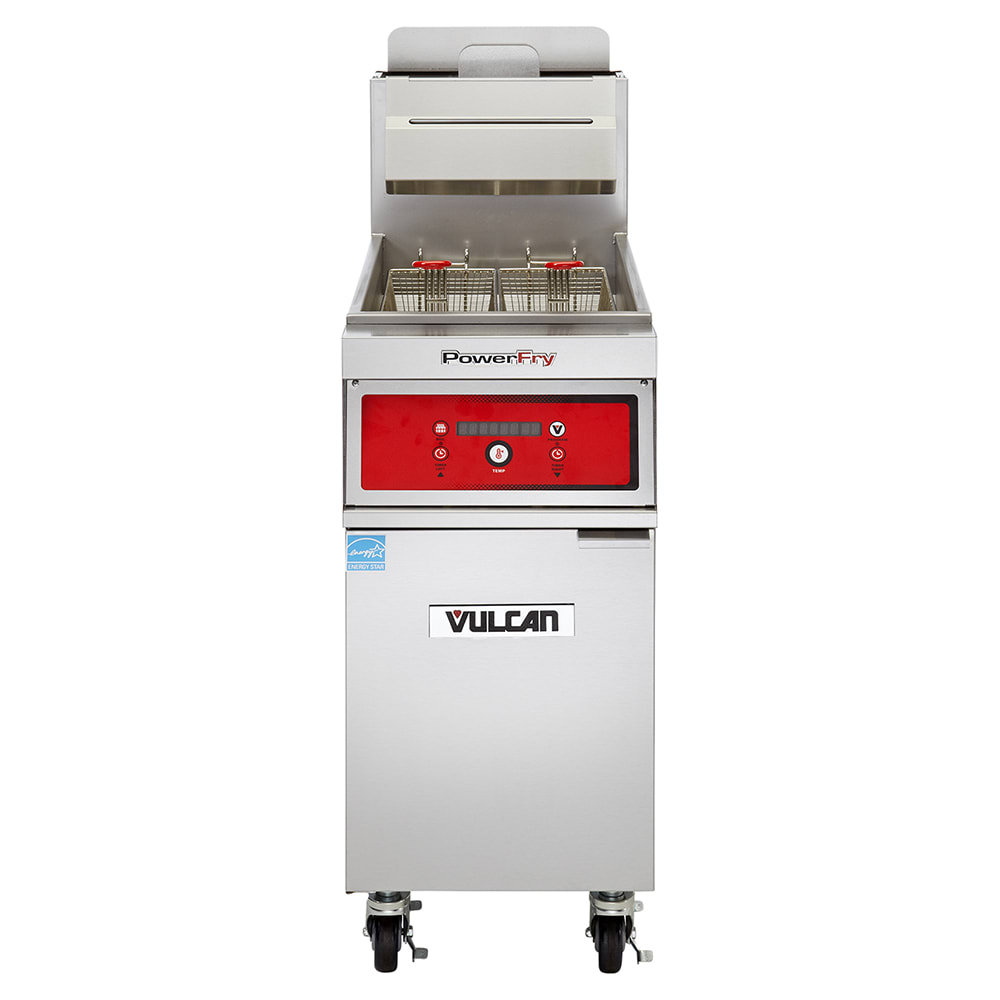

Vulcan 1TR85AF Gas Fryer - (1) 90 lb Vat, Floor Model, Natural Gas

To establish a 36¹⁄₄-inch working height, the Vulcan 1TR85AF PowerFry3™ fryer measures 21 inches wide by 34³⁄₈ inches deep by 47¹⁄₈ inches tall. Its 19¹⁄₂-inch-wide by 18¹⁄₄-inch-deep tank can hold 90 pounds of cooking oil and includes twin fryer baskets with plastic-coated handles to enhance user safety. This unit's cabinet and frypot are made of rugged, rust- and corrosion-resistant stainless steel for lasting durability and simplified cleaning. To further aid in cleaning, it comes with a clean-out rod and a tank brush. Because it's mounted on four 6-inch casters that provide smooth mobility, it's simple to reposition; two of the casters can be locked to secure the unit in place.

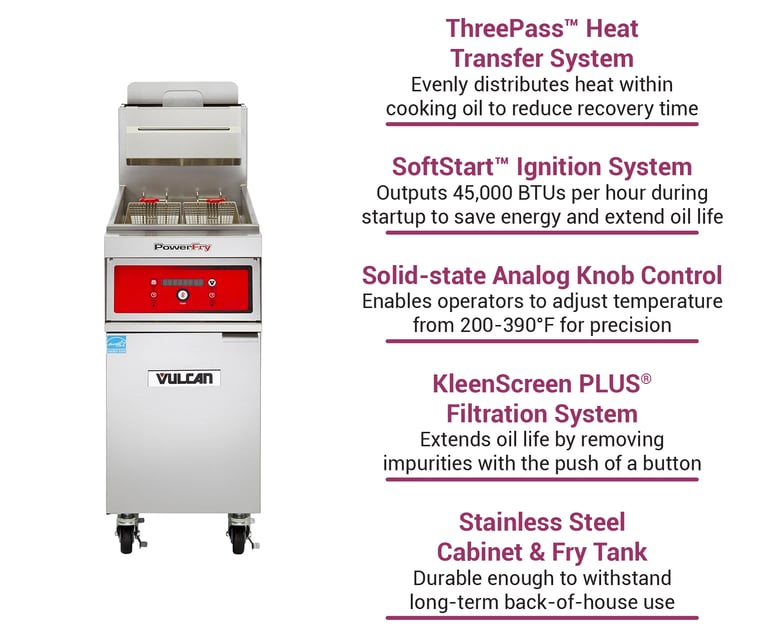

The Vulcan 1TR85AF commercial floor-model fryer operates with natural gas and can output 90,000 BTUs per hour. Users can set the unit's temperature from 200 to 390 degrees Fahrenheit using the solid-state analog knob control located behind the cabinet door. The controls' melt cycles can also be initiated to melt solid shortening, slow oil degradation, and minimize damage to the frypot's welded joints. The high-efficiency ThreePass™ heat transfer system effectively uses energy to distribute heat evenly throughout the cooking oil and reduce recovery times. When oil is initially heated, the fryer's SoftStart™ ignition system warms it quickly while outputting 45,000 BTUs per hour, which can help extend oil life. To conserve energy while maintaining idle oil temperatures, this unit only outputs 5,575 BTUs per hour. Operators can simply press a filter button to start a filtration cycle with the KleenScreen PLUS® filtration system.

Product Details

• Part of the PowerFry3 line
• Frypot oil capacity: 90 lbs.
• Freestanding model with 36¹⁄₄-in. working height
• Stainless steel cabinet and frypot
• Mounted on (4) 6-in. adjustable casters (2 can be locked)
• Electronic matchless ignition
• Solid-state analog knob behind door
• Operating temperature control: 200-390 degrees F
• User-selectable fat-melt modes
• SoftStart ignition system outputs 45,000 BTUs per hour
• ThreePass heat transfer system effectively harnesses energy for uniform heat distribution
• Outputs 5,575 BTUs per hour to maintain idle oil temperature
• Flue temperature doesn't exceed 750 degrees F at maximum production rates
• Hi-limit shutoff mechanism
• KleenScreen PLUS filtration system can be initiated with the push of a button
• Twin fryer baskets with plastic-coated handles
• 1¹⁄₄-in. port ball-type drain valve
• Includes tank brush and clean-out rod
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 90,000 BTU

Dimensions & Utilities

• Tank: 19¹⁄₂ in. W x 18¹⁄₄ in. D
• Overall: 21 in. W x 34³⁄₈ in. D x 47¹⁄₈ in. H
• Powered by natural gas
• 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
• ³⁄₄-in. OD rear gas connection

Product Features

*Free shipping on Vulcan 1TR85AF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 21" W, free-standing, 85-90 lbs. capacity, solid state analog knob control with melt cycles, ThreePass™heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 90,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR85AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
