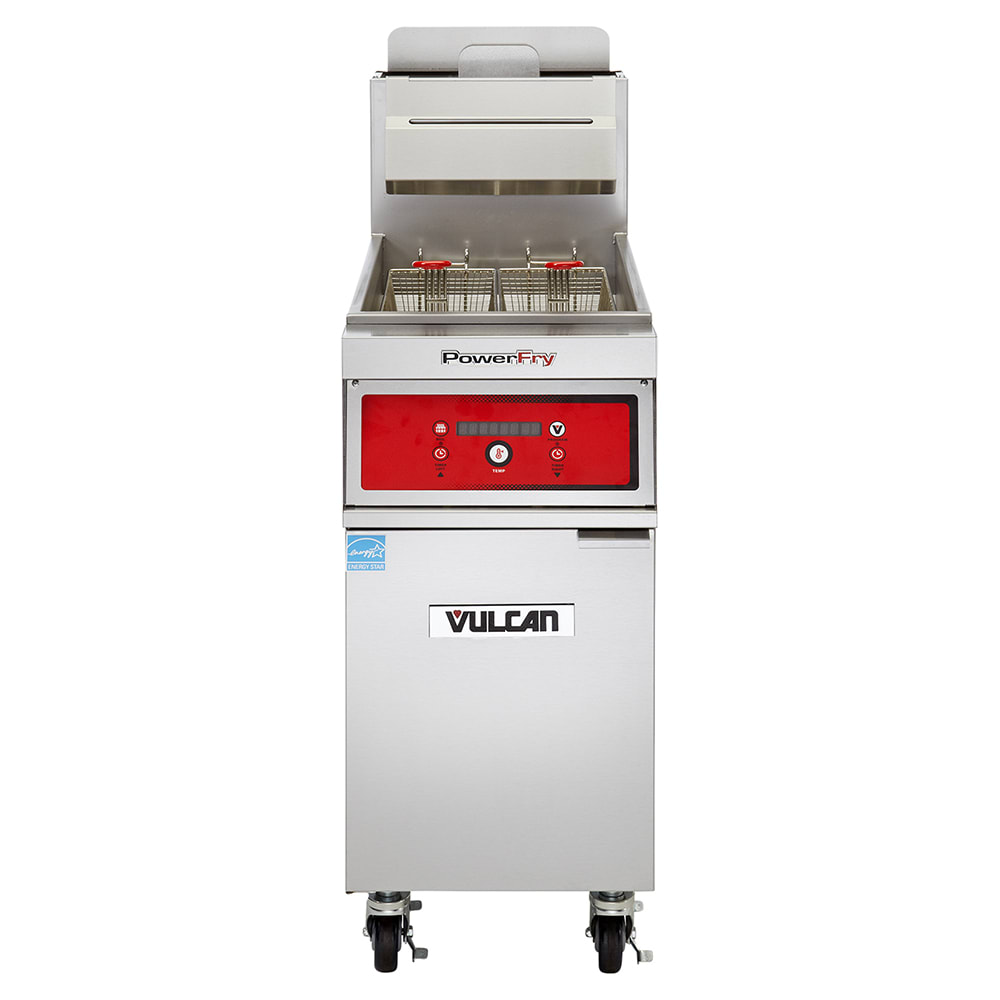

Vulcan 1TR85AF Gas Fryer - (1) 90 lb Vat, Floor Model, Liquid Propane

Because it can hold 85 pounds of oil and is part of the PowerFry3™ series, the Vulcan 1TR85AF freestanding gas fryer is ideal for medium- and high-traffic establishments. This 90,000-BTU-per-hour unit optimizes energy efficiency with its SoftStart™ ignition system, which outputs 45,000 BTUs per hour upon startup. The ThreePass™ heat transfer system evenly distributes heat throughout the cooking oil to yield 72 percent thermal efficiency and 60 percent cooking efficiency. Once the unit maintains an idle oil temperature, it outputs 5,575 BTUs per hour. Users can adjust the temperature between 200 and 390 degrees Fahrenheit with the solid-state analog knob behind the door. To accommodate solid shortening, the control system features user-selectable fat-melt modes for flexibility.

To further extend oil life and save operators on cost, the Vulcan 1TR85AF commercial gas fryer is built with a KleenScreen PLUS® filtration system. Operators can flip on the drain switch and press the filter switch to initiate removing impurities. When cleaning is required, users can drain oil from the unit's 1¹⁄₄-inch port ball-type drain and clean the frypot with the clean-out rod and tank brush. This 21-inch-wide by 34³⁄₈-inch-deep by 47¹⁄₈-inch-tall unit boasts a 36¹⁄₄-inch working height and includes a 19¹⁄₂-inch-wide by 18¹⁄₄-inch-deep frypot. The included twin fryer baskets can be placed in the frypot to contain mozzarella sticks, chicken tenders, okra, pickles, and fries, and their plastic-coated handles enhance user safety by reducing heat transfer. To prolong its service life in high-volume kitchens, its frypot and cabinet are made of stainless steel. Because it's fitted with casters, it's simple to move, and two casters can be locked to secure the fryer in place.

Product Details

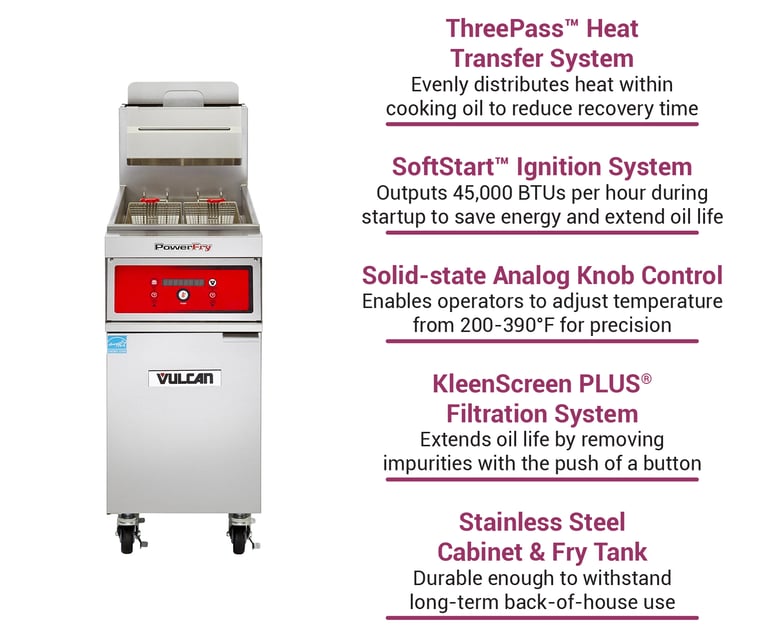

• Part of the PowerFry3 collection
• Single vat accommodates 90 lbs. of oil
• Freestanding configuration
• 36¹⁄₄-in. working height
• Stainless steel cabinet and frypot
• Positioned on (4) 6-in. adjustable casters (2 can be locked)
• High efficiency
• Electronic matchless ignition
• Solid-state analog knob behind door
• Operating temperature control: 200-390 degrees F
• User-selectable fat melt modes
• SoftStart ignition system outputs 45,000 BTUs per hour upon startup
• ThreePass heat transfer system harnesses energy to enhance uniformity in heating
• Maintains idle oil temperature by outputting 5,575 BTUs per hour
• Flue temperature doesn't exceed 750 degrees F at maximum production rates
• Hi-limit shutoff mechanism
• KleenScreen PLUS filtration system
• Twin fryer baskets with plastic-coated handles
• 1¹⁄₄-in. port ball-type drain valve
• Includes tank brush and clean-out rod
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 90,000 BTU

Dimensions & Utilities

• Tank: 19¹⁄₂ in. W x 18¹⁄₄ in. D
• Overall: 21 in. W x 34³⁄₈ in. D x 47¹⁄₈ in. H
• Powered by LP gas
• 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
• ³⁄₄-in. OD rear gas connection

Product Features

*Free shipping on Vulcan 1TR85AF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 21" W, free-standing, 85-90 lbs. capacity, solid state analog knob control with melt cycles, ThreePass™heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 90,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR85AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
