Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
Vulcan 1TR65C Gas Fryer - (1) 70 lb Vat, Floor Model, Natural Gas
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $27,670.56
$11,391.00 /Each
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 1TR65C Description

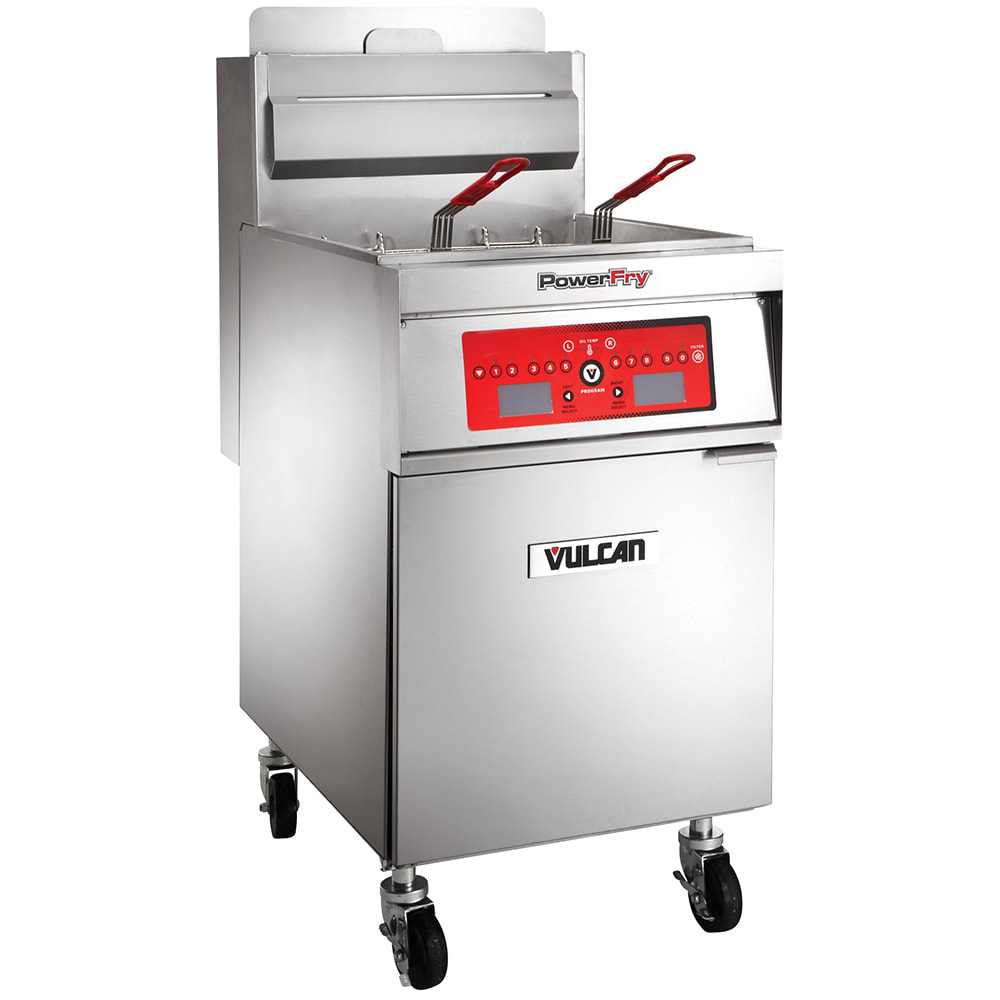

Ideal for frying fish sticks, french fries, mozzarella sticks, and chicken for medium- and high-traffic establishments, the Vulcan 1TR65C PowerFry3™ commercial gas fryer's 191⁄2-inch-wide by 14-inch-deep frypot can accommodates 70 pounds of cooking oil. Its twin fryer baskets keep product in place as they're lowered into the frypot and lifted from the oil. Each basket's handle is coated in plastic to minimize heat transfer and enhance user safety. So staff can work at a comfortable 361⁄4-inch cooking height, this unit measures 21 inches wide by 301⁄8 inches deep by 471⁄8 inches tall. Because it's fitted with smooth-rolling casters, it can be wheeled out of the way for cleaning or maintenance; two of the casters can be locked to secure the unit in place during use. The cabinet and frypot are made of stainless steel for long-term corrosion resistance and durability.

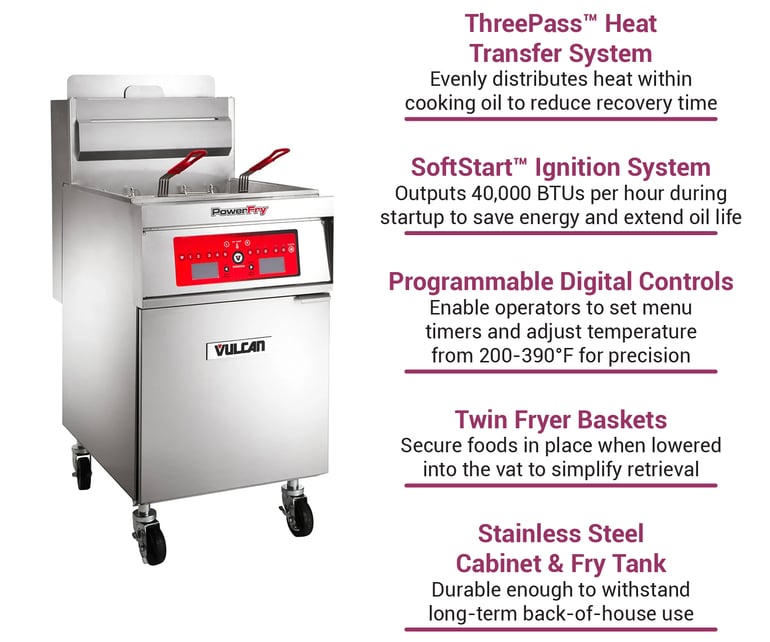

Operators can set the Vulcan 1TR65C floor-model natural gas fryer's temperature from 200 to 390 degrees Fahrenheit using the digital temperature controls. Users can program 10 menu timers, eliminating the need to repeatedly set specific timers for commonly ordered foods. Employees can even program menu items offline through a USB interface. To prolong oil life and save energy, this unit features a SoftStart™ ignition system that outputs half of the unit's maximum BTUs per hour when initially heating cooking oil. Its ThreePass™ heat transfer system effectively distributes heat throughout the oil to yield 72 percent thermal efficiency and 60 percent cooking efficiency. When the unit is operating at its maximum production rate, its flue doesn't exceed temperatures hotter than 750 degrees Fahrenheit. For simple cleanup, this unit features a 11⁄4-inch port ball-type drain valve, a tank brush, and a clean-out rod.
Product Details
- Part of the PowerFry3 series
- Vat capacity: 70 lbs.
- Electronic ignition
- SoftStart ignition system outputs 40,000 BTUs per hour when initially heating oil
- High-efficiency ThreePass heat transfer system uniformly distributes heat
- Outputs 5,083 BTUs per hour to maintain warm temperatures
- Flue temperature doesn't exceed 750 degrees F at maximum production rate
- Hi-limit shutoff
- Freestanding model
- 361⁄4-in. working height
- Durable, corrosion-resistant stainless steel cabinet and frypot
- Positioned on (4) 6-in. adjustable casters (2 with locks)
- Twin fryer baskets with plastic-coated handles
- 11⁄4-in. port ball-type drain valve
- Tank brush and clean-out rod included
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 80,000 BTU
Programmable Controls
- Operating temperature control: 200-390 degrees F
- Digital temperature display
- Programmable computer controls with digital display
- 10 menu options
- USB interface facilities offline programming (software included)
- 3 melt modes
Dimensions & Utilities
- Tank: 191⁄2 in. W x 14 in. D
- Overall: 21 in. W x 301⁄8 in. D x 471⁄8 in. H
- Powered by natural gas
- 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
- 3⁄4-in. OD rear gas connection
Product Features
*Free shipping on Vulcan 1TR65C within the 48 contiguous states.
From The Manufacturer
PowerFry3™ Fryer, natural gas, high efficiency, 21" W, free-standing, 65-70 lbs. capacity, programmable computer control with melt cycles, ThreePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 80,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 1TR65C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 70 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 70 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 237.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
