Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

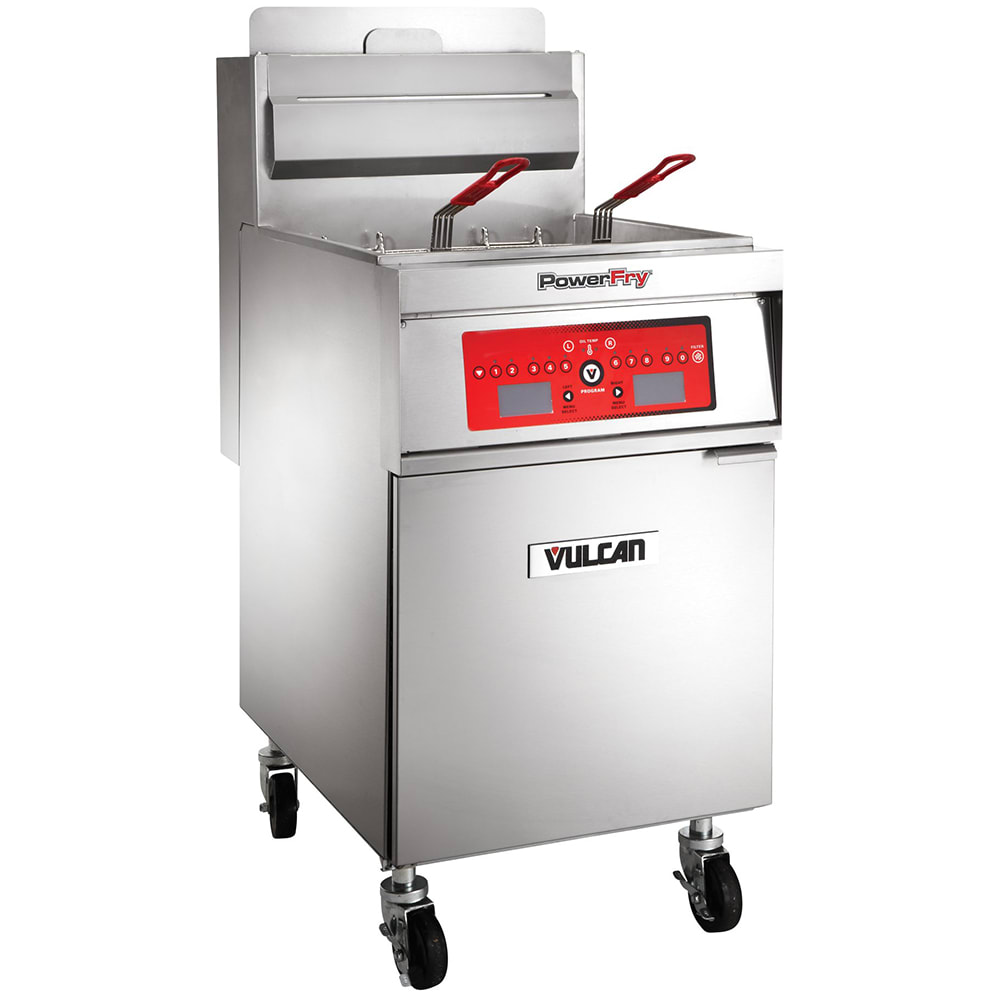

Vulcan 1TR65CF Gas Fryer - (1) 70 lb Vat, Floor Model, Liquid Propane
Typically ships in 2 - 3 weeks
Free Shipping Item
Retail Price: $45,797.13
$18,852.00 /Each
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan 1TR65CF Description

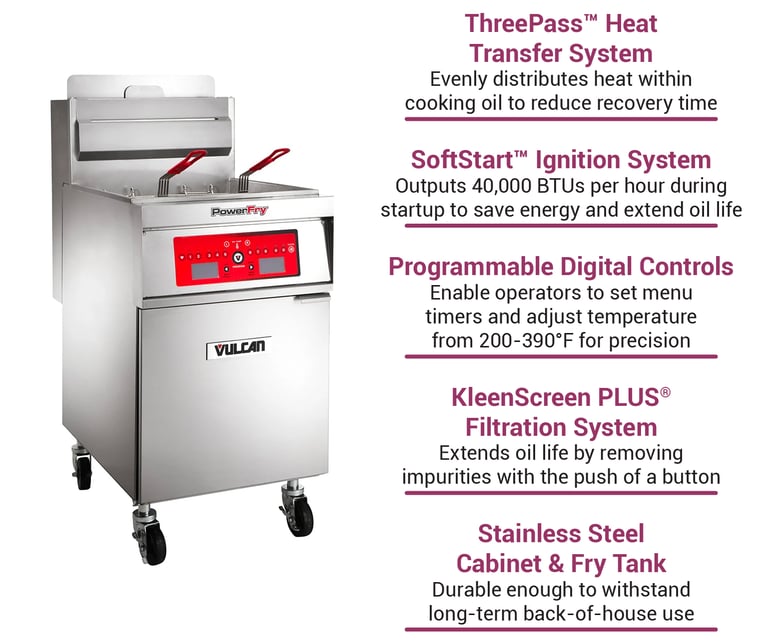

To simplify operation, the Vulcan 1TR65CF PowerFry3™ gas fryer features electronic ignition, three melt modes, and programmable computer controls with a digital character display. Users can set 10 timers for 10 frequently made menu items, and the screen will display the product name and cook time. Staff can also use a USB interface to program menu items offline. The unit's temperature can be set from 200 to 390 degrees Fahrenheit, and a digital display provides an accurate readout so operators can ensure contents are cooked at the correct temperature.
This commercial freestanding fryer initiates the SoftStart™ ignition mechanism when it begins to heat oil, outputting 40,000 BTUs per hour to save energy and extend the oil's life. Its ThreePass™ system evenly distributes heat throughout the oil, yielding 60 percent cooking efficiency and 72 percent thermal efficiency and maintaining a flue temperature lower than 750 degrees Fahrenheit. To maintain oil temperatures, this system only outputs 5,083 BTUs per hour. The KleenScreen PLUS® filtration system helps operators save on oil costs by extending the oil life. Users can simply drain oil, press the filter button, and add oil as necessary.
To complement existing back-of-house equipment, the Vulcan 1TR65CF gas fryer's cabinet and frypot are made of strong, corrosion-resistant stainless steel. This 21-inch-wide by 301⁄8-inch-deep by 471⁄8-inch-tall unit provides a comfortable 361⁄4-inch working height and is positioned on four 6-inch casters—two of which can be locked when the unit needs to be secured in place. The 191⁄2-inch-wide by 14-inch-deep fry tank accommodates between 65 and 70 pounds of oil and comes with twin fry baskets to secure breaded products in place during frying. To reduce the risk of heat transfer, the fryer baskets' handles are coated with plastic.
Product Details
- Part of the PowerFry3 collection
- Fry tank capacity: 70 lbs. of oil
- Freestanding model with 361⁄4-in. working height
- Stainless steel cabinet and frypot
- Positioned on (4) 6-in. adjustable casters (2 can be locked)
- Electronic matchless ignition
- SoftStart ignition system outputs 40,000 BTUs upon startup
- High-efficiency ThreePass heat transfer system
- Maintains idle temperature outputting 5,083 BTUs per hour
- Flue temperature remains below 750 degrees F at maximum production rate
- Hi-limit shutoff
- Integrated KleenScreen PLUS filtration system
- Includes twin fryer baskets with plastic-coated handles
- 11⁄4-in. port ball-type drain valve
- Includes tank brush and clean-out rod
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 80,000 BTU
Computer Control System
- Programmable computer controls with digital character display
- 10 menu timers
- USB interface enables offline programming
- Operating temperature control: 200-390 degrees F
- Temperature display in Fahrenheit or Celsius
- 3 melt modes
Dimensions & Utilities
- Tank: 191⁄2 in. W x 14 in. D
- Overall: 21 in. W x 301⁄8 in. D x 471⁄8 in. H
- Powered by LP gas
- 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
- 3⁄4-in. OD rear gas connection
Product Features
*Free shipping on Vulcan 1TR65CF within the 48 contiguous states.
From The Manufacturer
PowerFry3™ Fryer, LP gas, high efficiency, 21" W, free-standing, 65-70 lbs. capacity, programmable computer control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tan, adjustable casters (2 swivel locking & 2 non-locking), 80,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor; 10-year Fry Tank
Vulcan 1TR65CF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 70 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 70 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3™ |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 380.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
