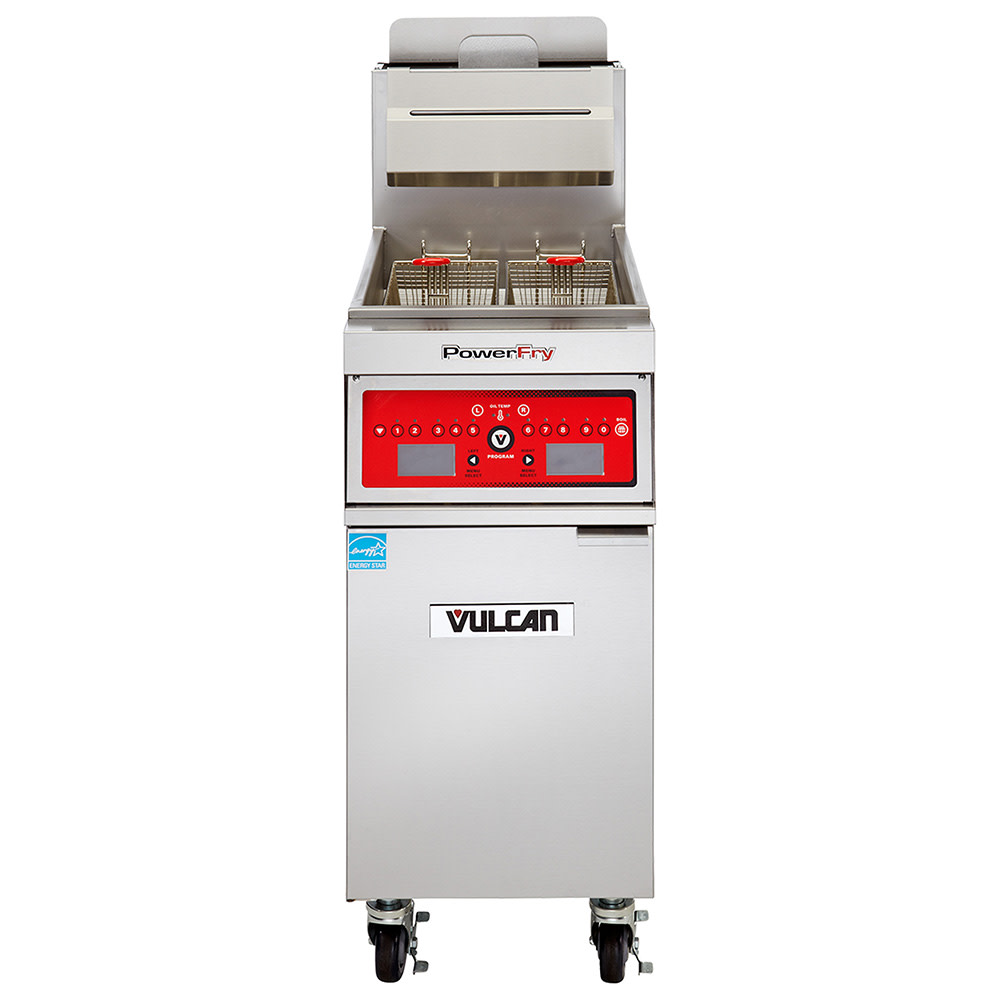

Vulcan 1TR65A Gas Fryer - (1) 70 lb Vat, Floor Model, Liquid Propane

For frying mozzarella sticks, chicken, fries, and other breaded foods, the Vulcan 1TR65A PowerFry3™ gas fryer can accommodate 70 pounds of oil in its 19¹⁄₂-inch-wide by 14-inch-deep vat. Operators can set the unit's temperature from 200 to 390 degrees Fahrenheit with the solid-state analog knob control located behind the door. For simple startup, this gas-powered fryer features an electronic ignition, and staff can select fat-melt modes to heat solid shortening. To save energy and extend oil life, its SoftStart™ ignition system quickly heats oil with half of the unit's maximum BTUs per hour, and then to maintain an idle temperature, it only outputs 5,083 BTUs per hour. The ThreePass™ heat transfer system uniformly distributes heat within the cooking oil to reduce recovery times and gas usage. At the maximum production rate, the flue doesn't exceed 750 degrees Fahrenheit. If unit temperature surpasses the set temperature range, the unit will automatically shut off for user safety.

The Vulcan 1TR65A commercial gas fryer is a 21-inch-wide by 30¹⁄₈-inch-deep by 47¹⁄₈-inch-tall freestanding unit positioned on four 6-inch casters—two of which can be locked to ensure the unit remains stable during use. For user comfort, it provides a 36¹⁄₄-inch working height. Two fryer baskets come with this fryer to secure products in place during the frying process, and their plastic-coated handles reduce the risk of heat transfer. For lasting durability, the cabinet and fry tank are made of stainless steel—a durable, rust-resistant metal that can simply be wiped clean. This unit features a 1¹⁄₄-inch port ball-type drain valve, a tank brush, and a clean-out rod to further ease cleaning.

Product Details

• Part of Vulcan's PowerFry3 series
• 70-lb. vat capacity
• Freestanding configuration
• 36¹⁄₄-in. working height
• Stainless steel cabinet and fry tank
• Positioned on (4) 6-in. adjustable casters (2 with locks)
• Electronic matchless ignition
• Solid-state analog knob control behind door
• Operating temperature control: 200-390 degrees F
• Selectable fat-melt modes

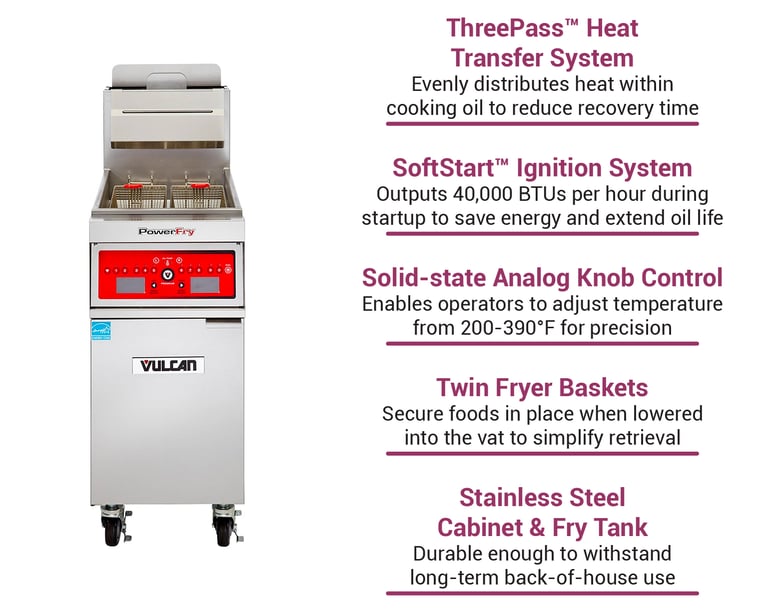

• SoftStart ignition system outputs 40,000 BTUs per hour at startup
• High-efficiency ThreePass heat transfer system for energy-saving oil heating
• Maintains idle temperature with 5,083 BTUs per hour
• Flue temperature remains below 750 degrees F at maximum production rate
• Hi-limit shutoff
• Includes 2 fryer baskets with plastic-coated handles
• 1¹⁄₄-in. port ball-type drain valve
• Comes with tank brush and clean-out rod
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 80,000 BTU

Dimensions & Utilities

• Tank: 19¹⁄₂ in. W x 14 in. D
• Overall: 21 in. W x 30¹⁄₈ in. D x 47¹⁄₈ in. H
• Powered by LP gas
• 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• ³⁄₄-in. OD rear gas connection

Product Features

*Free shipping on Vulcan 1TR65A within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 21" W, free-standing, 65-70 lbs. capacity, solid state analog knob control with melt cycles, ThreePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 80,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR65A Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
