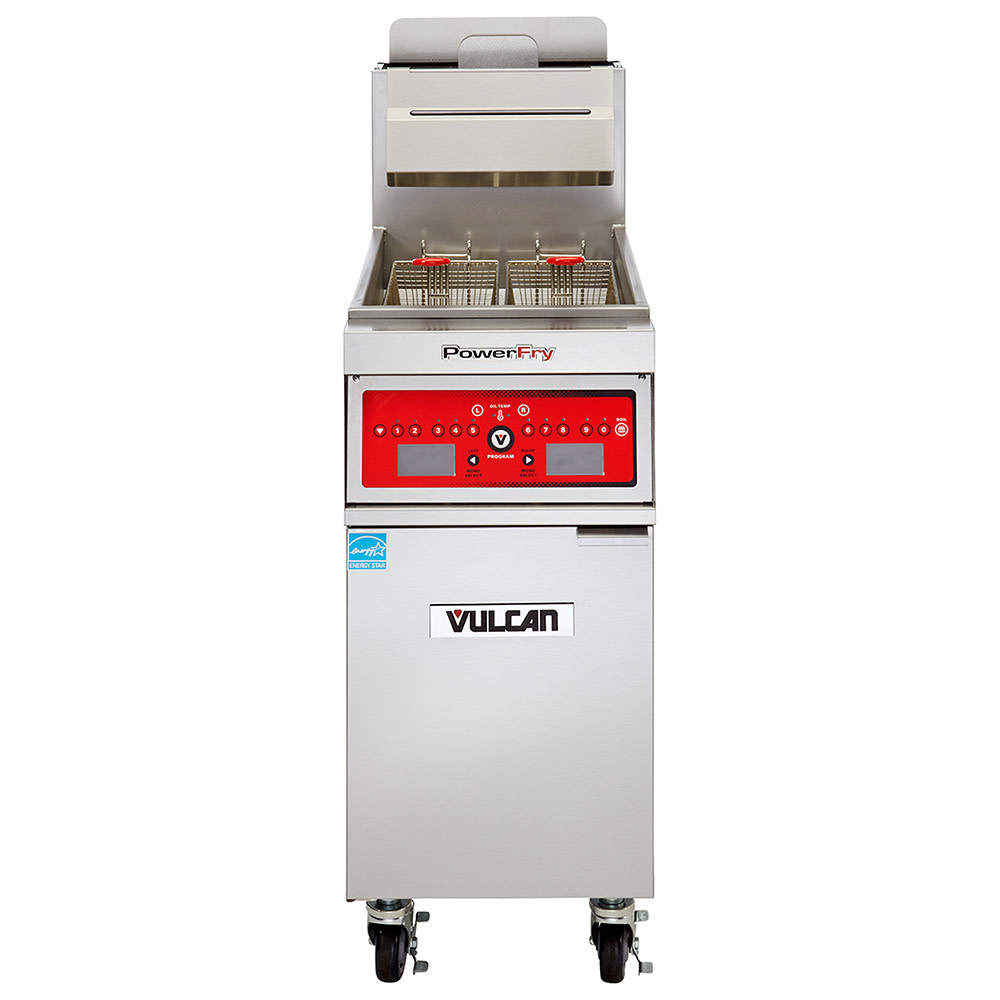

Vulcan 1TR45C Gas Fryer - (1) 50 lb Vat, Floor Model, Natural Gas

The Vulcan 1TR45C gas fryer has a vat that can support 45 to 50 pounds of oil, which can be heated to temperatures between 200 and 390 degrees Fahrenheit. Its body features a stainless steel construction and measures 15¹/₂ inches wide by 30¹/₈ inches deep by 47¹/₈ inches high. To simplify transportation, it rests on four 6-inch casters, two of which can be locked for stability during use. It comes with two 6¹/₂-inch-wide by 13¹/₄-inch-deep by 6-inch-high frying baskets that feature plastic coated handles.

Powered by natural gas, the Vulcan 1TR45C PowerFry3™ fryer comes with several features to create high-quality fried chicken, onion rings, or donuts. Its ThreePass™ heating system offers three melt cycles to accommodate various shortening types, and it increases the heat transfer area to maximize efficiency. Its SoftStart™ electronic ignition system outputs 35,000 BTU per hour during startup, while its maximum output is 70,000 BTU; when idle, it lowers output to only 4,318 BTU per hour.

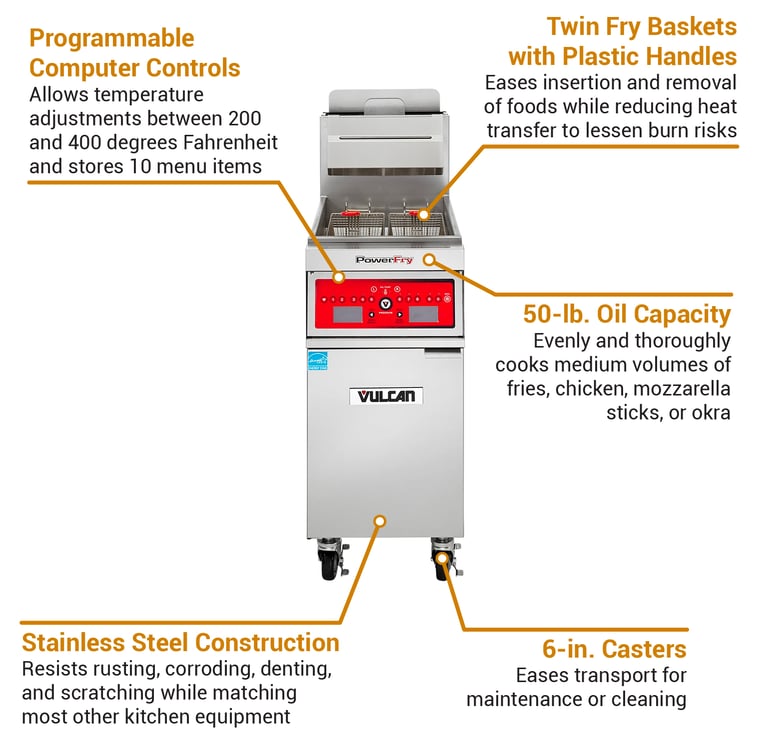

Fryer Details

• Part of the PowerFry3 series
• 45-50-lb. capacity
• Temperature range: 200-390 degrees F
• Freestanding unit with 1 frypot
• Stainless steel cabinet and fry tank
• Includes twin baskets with plastic handles
• SoftStart ignition system minimizes scorching risks and outputs only 35,000 BTU per hour
• Energy-efficient ThreePass heat transfer system extends oil life
• Electronic matchless ignition
• Three melt modes
• Outputs 4,318 BTU per hour when idle
• Hi-limit shutoff prevents overheating
• (4) 6-in. adjustable casters (2 locking)
• Includes tank brush and clean-out rod
• 1¹/₄ in. full port ball-type drain valve
• 36¹/₄-in. working height

Computer controls

• Programmable
• Digital character display
• Stores 10 menu timers with product name and cook time
• Offers offline programming with USB (software included)
• Can display compensating time or actual time and temperatures in Fahrenheit or Celsius
• ThreePass heat transfer mechanism

Dimensions and Utilities

• Twin baskets: 6¹/₂ in. W x 13¹/₄ in. D x 6 in. H
• Overall: 15¹/₂ in. W x 30¹/₈ in. D x 47¹/₈ in. H
• NG powered
• 70,000 BTU output

Product Features

*Free shipping on Vulcan 1TR45C within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 15-1/2" W, free-standing, 45-50 lbs. capacity, programmable computer control with melt cycles, ThreePass™ heat transfer system, electronic ignition, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 70,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR45C Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
