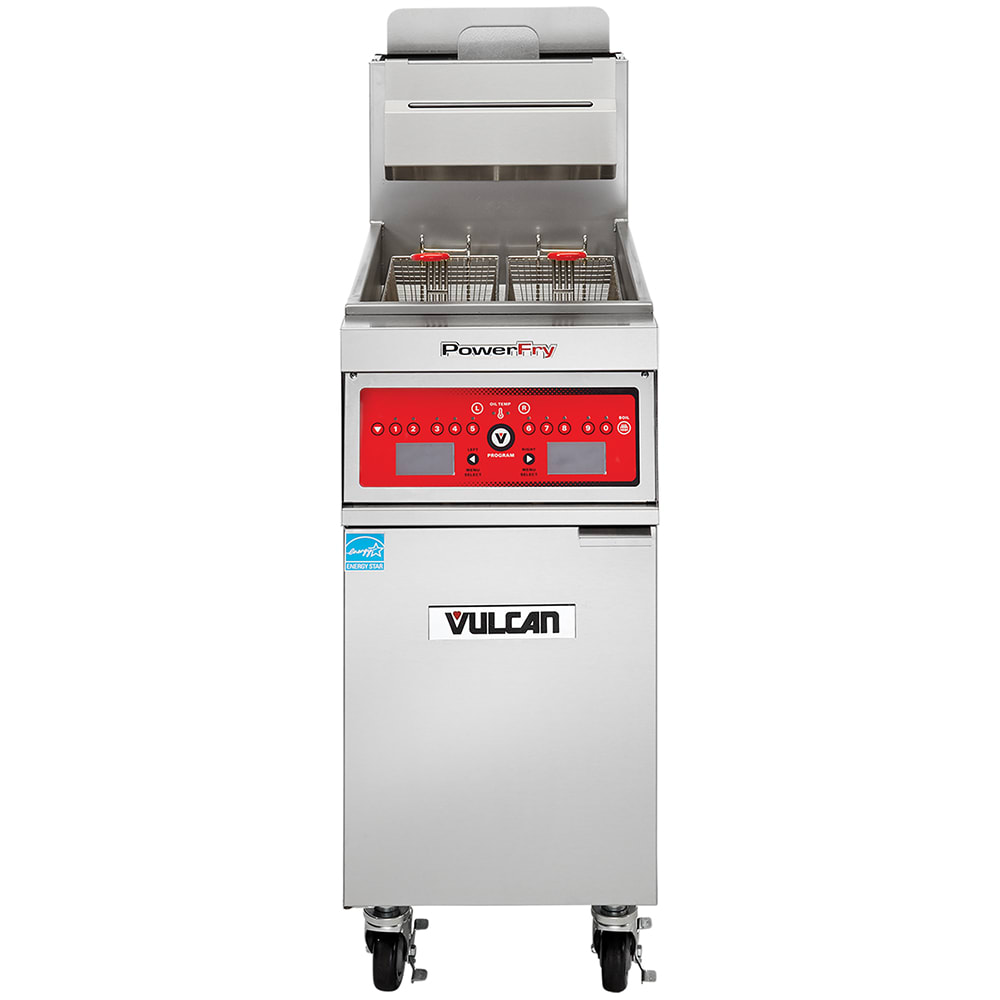

Vulcan 1TR45CF Gas Fryer - (1) 50 lb Vat, Floor Model, Natural Gas

Powered by natural gas, the Vulcan 1TR45CF gas fryer outputs 70,000 BTU per hour to cook chicken, fish, and french fries at medium volumes. It can hold 45 to 50 pounds of oil, while its KleenScreen PLUS® filtration system filters from two sides to extend oil life. To accommodate various types of fat, it has three melt modes. Once it's powered on with its electronic ignition, its SoftStart™ system heats oil quickly while lowering energy output to 35,000 BTU. To further conserve energy, its ThreePass™ heat transfer system provides shorter cook times, and when idle, it outputs only 4,318 BTU. With its programmable computer controls, the temperature can be adjusted between 200 and 390 degrees Fahrenheit; these controls can save 10 menu timers to simplify operation.

The Vulcan 1TR45CF gas fryer measures 15¹/₂ inches wide by 30¹/₈ inches deep by 47¹/₈ inches high, and its fry tank and cabinet are made of stainless steel. It's designed to hold the two included 6¹/₂-inch-wide by 13¹/₄-inch-deep by 6-inch-high fry baskets, which feature plastic-coated handles designed to protect operators and give them a firm and secure grip. This unit rolls on four 6-inch casters—two of which lock to hold the unit in place. To simplify cleaning, it includes a tank brush, clean-out rod, and 1¹/₄-inch port ball-type drain valve.

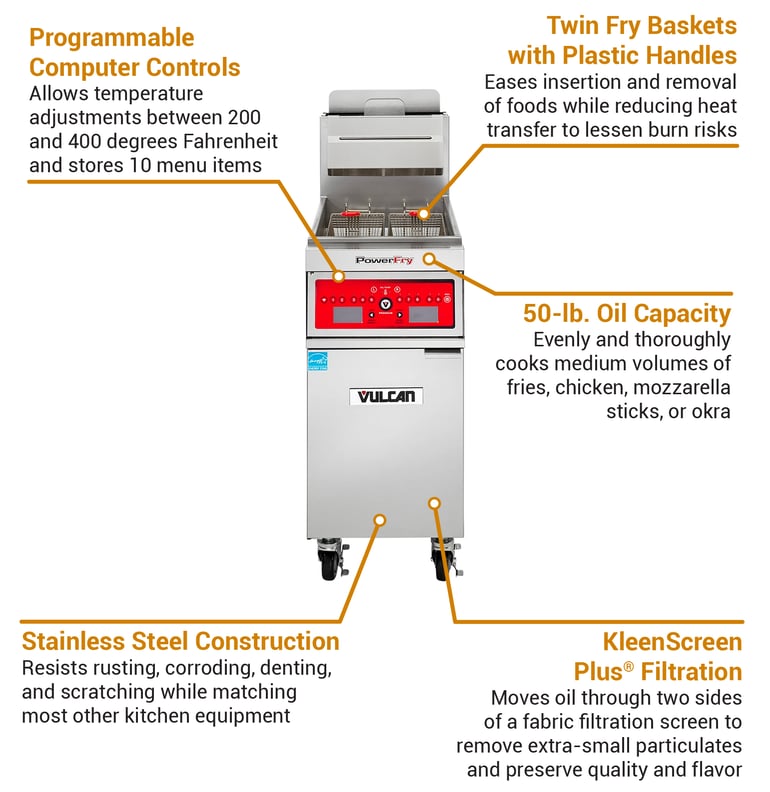

Fryer Details

• Part of the PowerFry3™ series
• 45-50-lb. oil capacity
• Stainless steel cabinet and fry tank
• Freestanding unit with 1 frypot
• Twin fryer baskets with plastic handles
• Temperature range: 200-390 degrees F
• SoftStart ignition system minimizes scorching risks and outputs only 35,000 BTU per hour

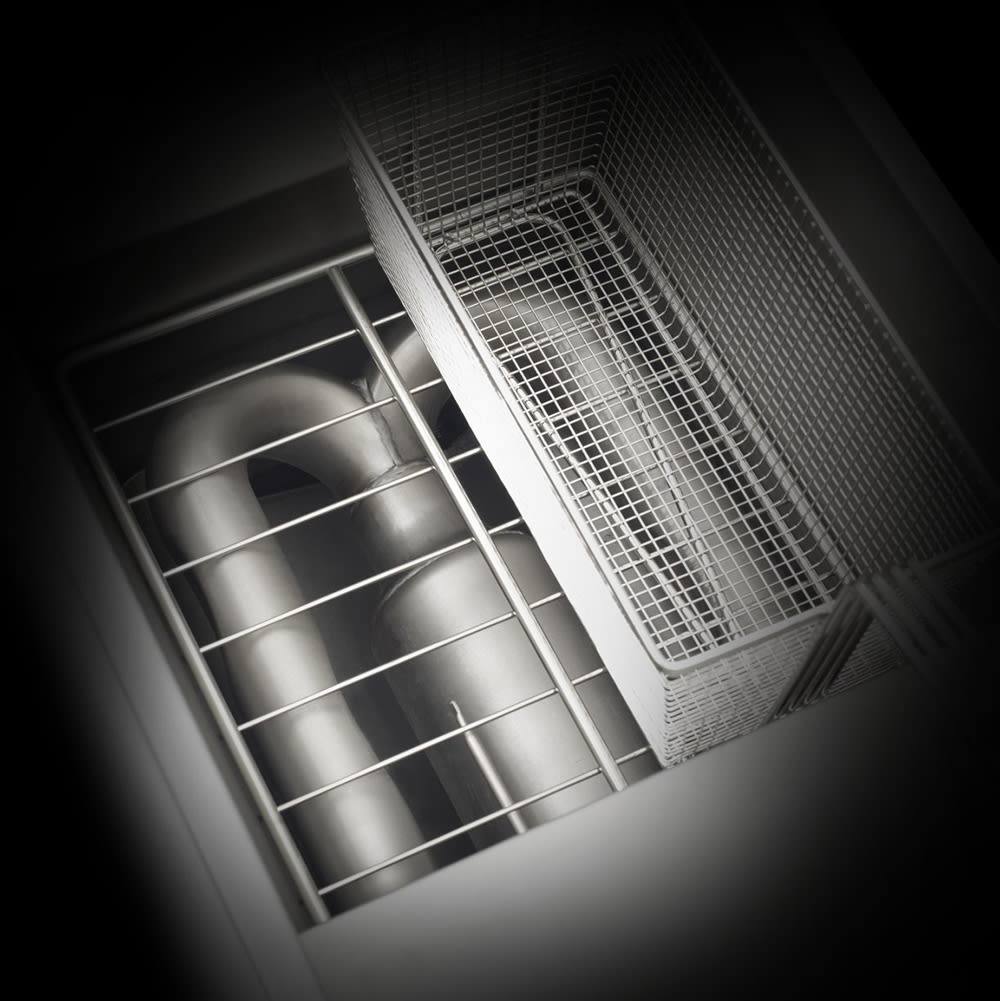

• Energy-efficient ThreePass heat transfer system extends oil life
• Electronic matchless ignition
• KleenScreen PLUS filtration system filters from two sides
• Three melt modes
• 1¹/₄-in. full port ball-type drain valve
• Outputs 5,575 BTU per hour when idle
• Hi-limit shutoff prevents overheating
• Includes tank brush and clean-out rod
• 36¹/₄-in. working height
• (4) 6-in. adjustable casters (2 locking)

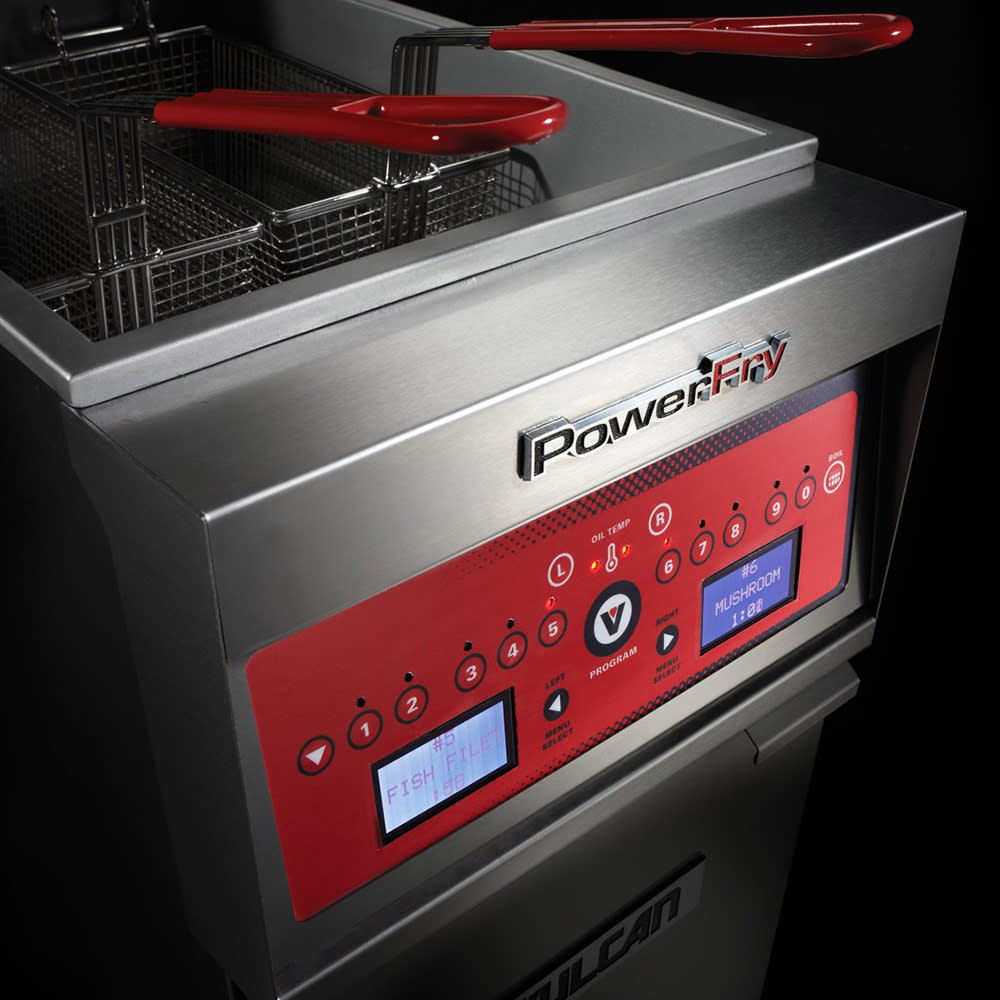

Computer controls

• Programmable
• Digital character display
• Stores 10 menu timers with product name and cook time
• Offers offline programming with USB (software included)
• Can display compensating time or actual time and temperatures in Fahrenheit or Celsius

Dimensions and Utilities

• Twin baskets: 6¹/₂ in. W x 13¹/₄ in. D x 6 in. H
• Overall: 15¹/₂ in. W x 30¹/₈ in. D x 47¹/₈ in. H
• 70,000 BTU output
• Natural gas powered

Product Features

*Free shipping on Vulcan 1TR45CF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 15-1/2" W, free-standing, 45-50 lbs. capacity, programmable computer control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 70,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR45CF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
