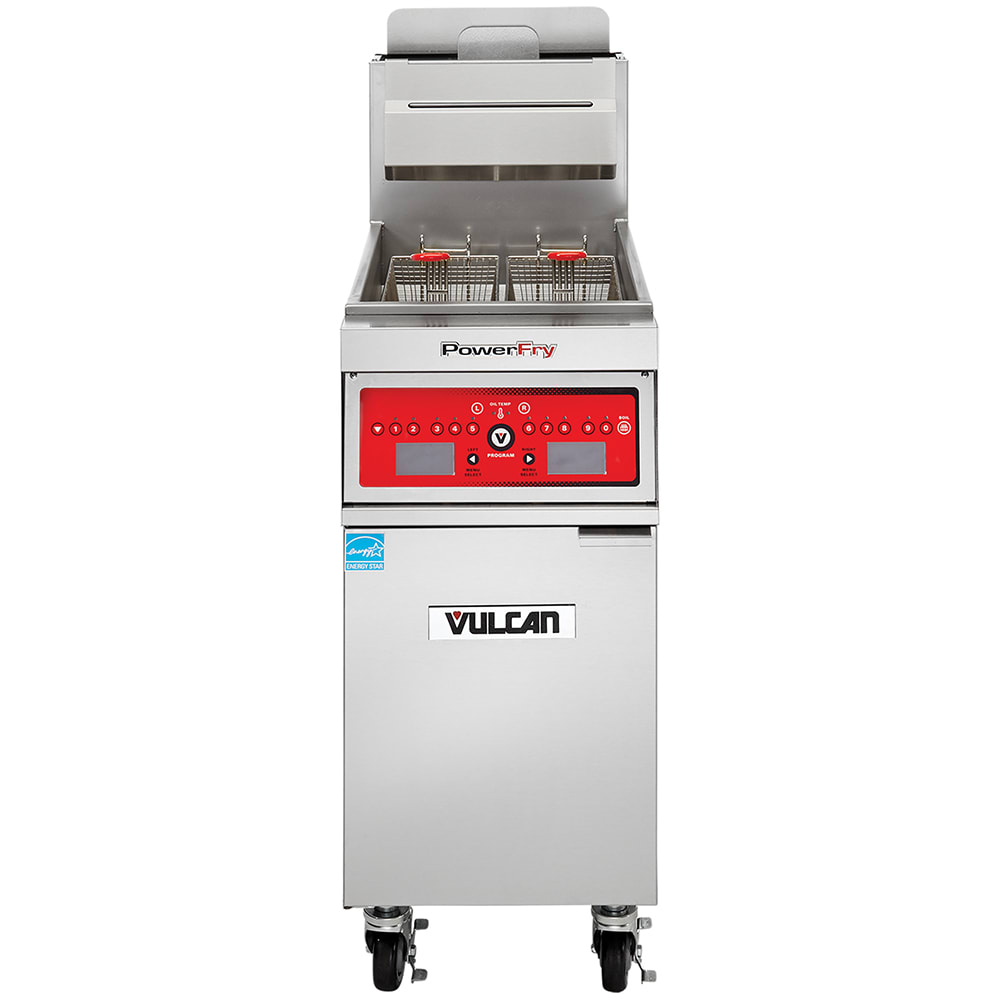

Vulcan 1TR45CF Gas Fryer - (1) 50 lb Vat, Floor Model, Liquid Propane

With its stainless steel construction, the Vulcan 1TR45CF PowerFry3™ fryer is designed with longevity in mind. Its KleenScreen PLUS® filtration system extends oil life by filtering a 270-square-inch area through a mesh screen. To further simplify cleaning, it comes with a tank brush, clean-out rod, and 1¹/₄-inch full port ball-type drain valve. This unit sits on four 6-inch casters—two of which can be locked to hold the unit in place. Overall, it measures 15¹/₂ inches wide by 30¹/₈ inches deep by 47¹/₈ inches high.

The Vulcan 1TR45CF liquid propane fryer outputs 70,000 BTU and has an electronic ignition with programmable computer controls that can be used to set temperatures between 200 and 390 degrees Fahrenheit. Its vat can hold 45 to 50 pounds of oil and accommodate two included 6¹/₂-inch-wide by 13¹/₄-inch-deep by 6-inch-high frying baskets to create medium volumes of french fries, mozzarella sticks, or onion rings. Its ENERGY STAR®-certified ThreePass™ heat transfer system yields 60.9 percent cooking efficiency and 72 percent thermal efficiency by increasing the heat-transfer surface area. Its computer can be programmed with 10 menu timers that display product name and cook time. For a quick, energy-efficient start-up, it features the SoftStart™ electric ignition system which lowers energy expenditure to 35,000 BTU during startup, and when idle, it uses only 4,318 BTU.

Fryer Details

• 45-50-lb. capacity
• Temperature range: 200-390 degrees F
• Stainless steel cabinet and fry tank
• Twin fry baskets with plastic-coated handles
• (4) 6-in. adjustable casters (2 locking)
• KleenScreen PLUS filtration system
• Energy-saving SoftStart ignition outputs 35,000 BTU during startup

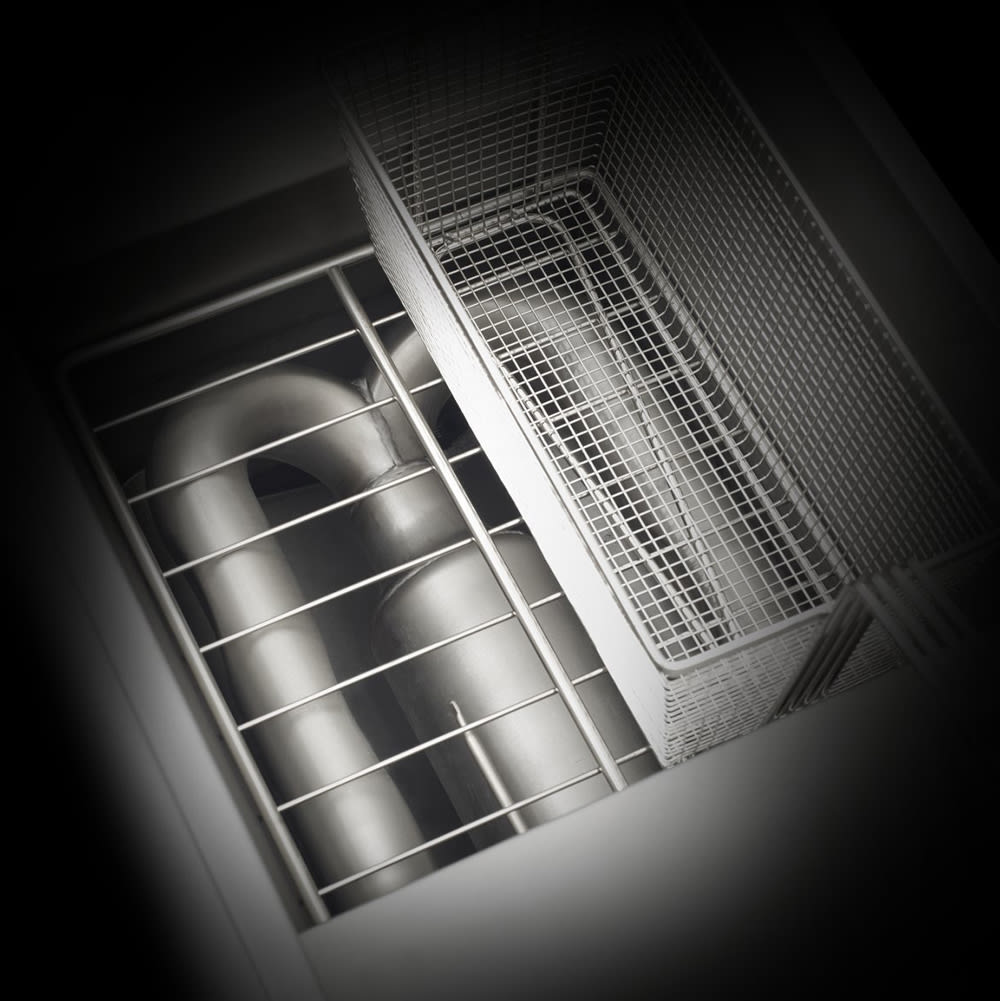

• ThreePass heat-transfer system
• Included tank brush and clean-out rod
• 1¹/₄-in. full port ball-type drain valve
• Outputs 4,318 BTU when idle
• 70,000 BTU

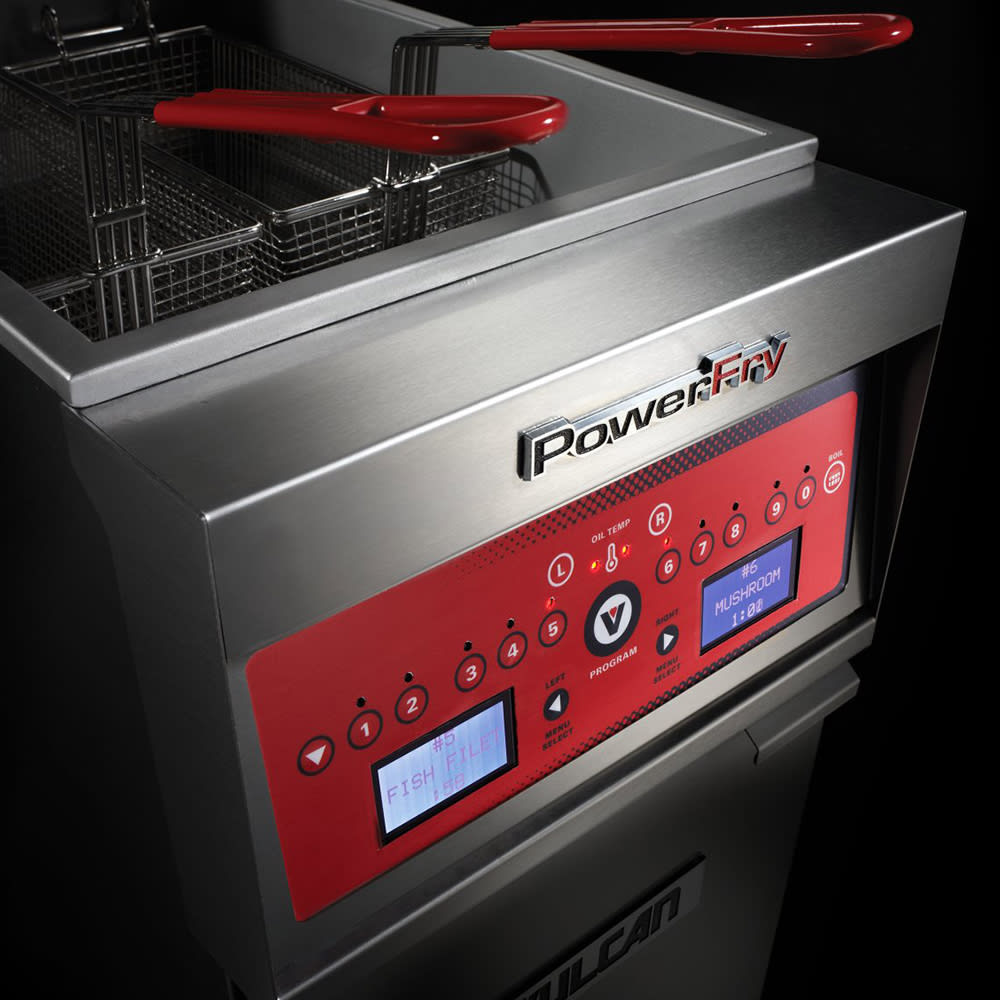

Computer control system

• 10 menu timers
• Offers offline programming through USB interface
• Can show compensating time or actual time
• Digital character display
• 3 melt modes

Dimensions and Utilities

• Twin baskets: 6¹/₂ in. W x 13¹/₄ in. D x 6 in. H
• Overall: 15¹/₂ in. W x 30¹/₈ in. D x 47¹/₈ in. H
• LP gas

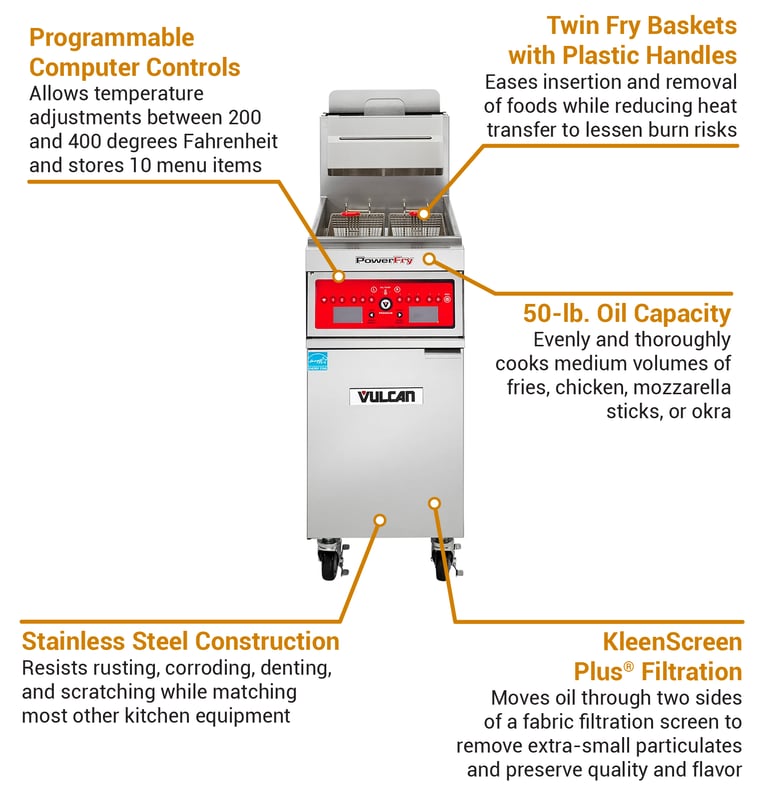

Product Features

*Free shipping on Vulcan 1TR45CF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 15-1/2" W, free-standing, 45-50 lbs. capacity, programmable computer control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 70,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR45CF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
