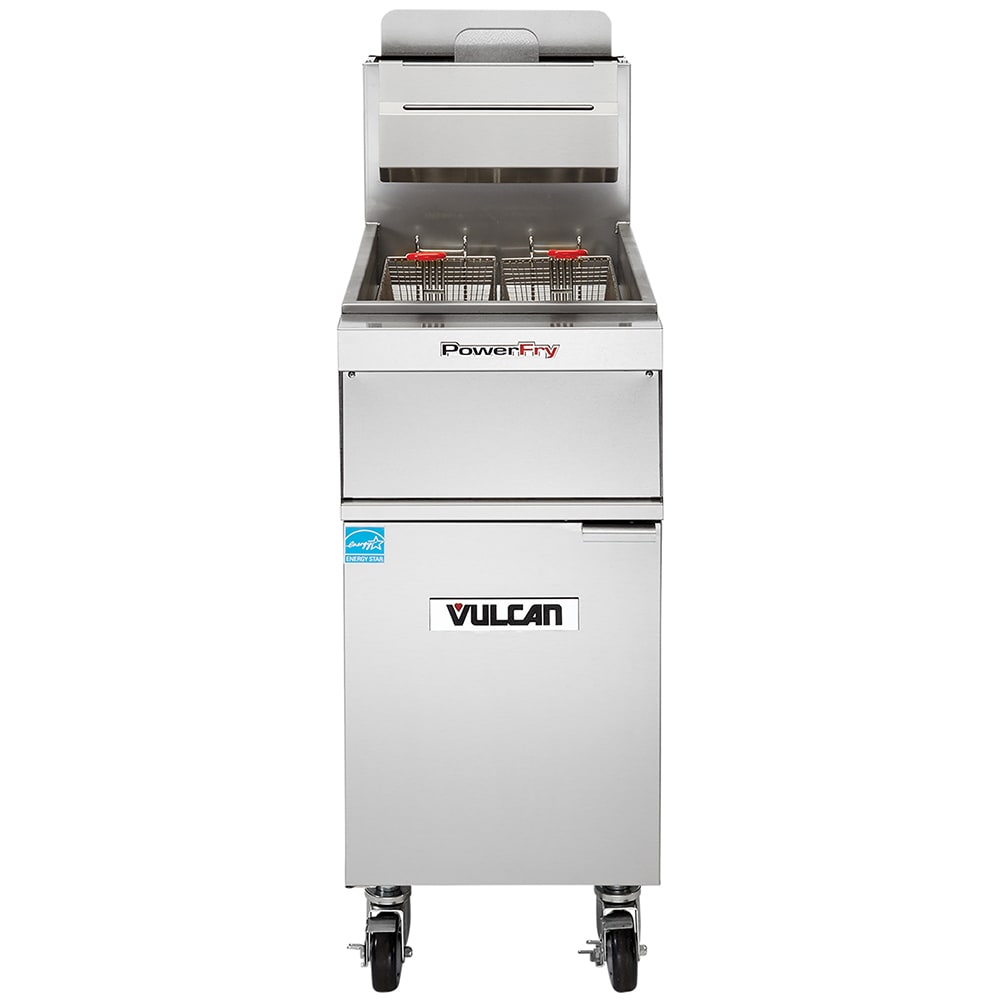

Vulcan 1TR45AF Gas Fryer - (1) 50 lb Vat, Floor Model, Natural Gas

Made of corrosion-resistant stainless steel, the tank in the Vulcan 1TR45AF PowerFry3™ fryer simplifies cleaning. It can hold 45 to 50 pounds of oil, and two batches can be prepared at once with two included fry baskets. It operates from 200 to 390 degrees Fahrenheit, and when the unit idles, it maintains cooking temperature without using excessive energy. Two of the adjustable, 6-inch casters lock in place to keep the fryer stationary.

Built into the Vulcan 1TR45AF PowerFry3 fryer, the KleenScreen PLUS® filtration system has a 70-pound capacity pan. The pan has a seamless, stainless steel construction for strength in high-volume use. A mesh filter screen filters from two sides, while the motor and pump circulate the frying compound at 8 gallons per minute. To simplify component use, there is a one-touch push button switch.

Product Details

• Heated by natural gas
• 45-50 lb. oil capacity, stainless steel fry tank
• Twin fry baskets enable two batches of product to be cooked simultaneously
• Solid state control system can be adjusted from 200-390 degrees F
• 4,318-BTU idle setting maintains cooking temperature while saving energy

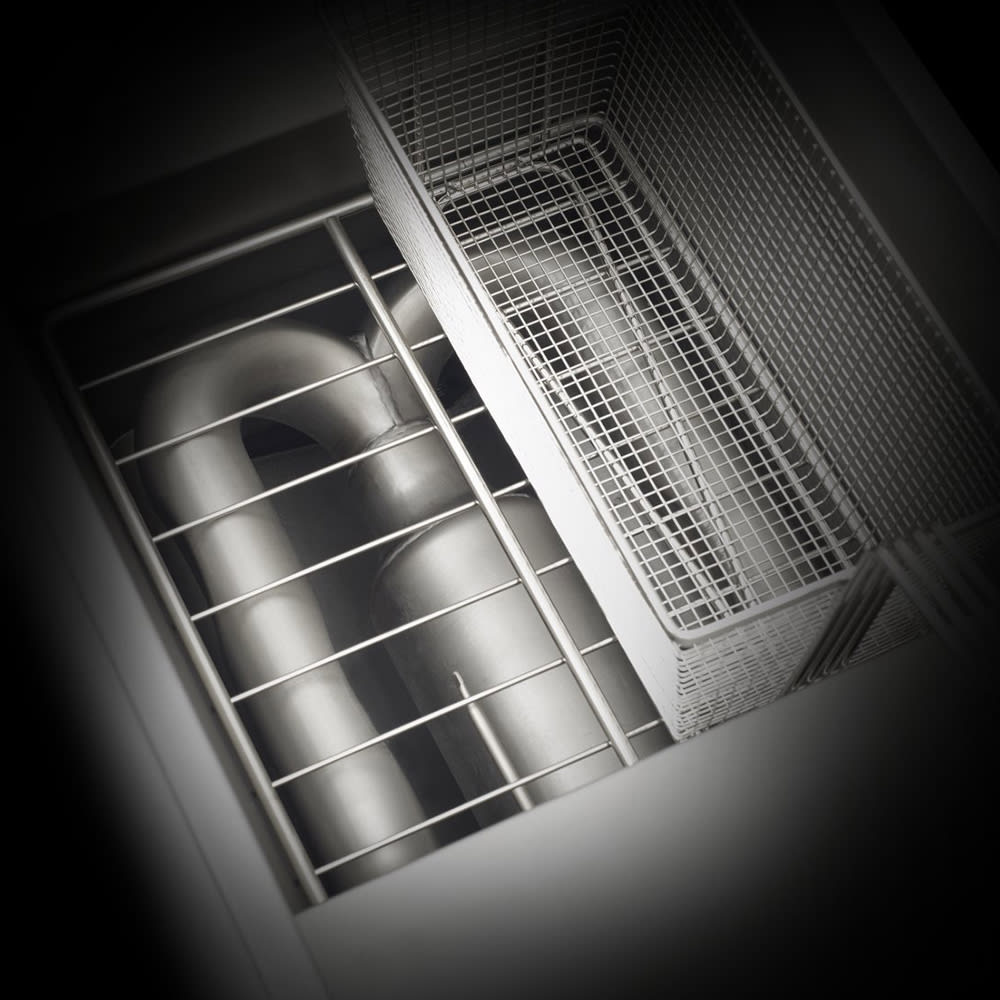

• ThreePass™ heat transfer system offers increased cooking efficiency
• SoftStart™ ignition system extends oil life while lowering BTU
• Hi-limit shut-off turns the gas valve off and extinguishes the pilot if the shortening overheats
• Strong, stainless steel cabinet aids cleaning
• 2 of the (4) 6-in. adjustable casters lock in place
• Tank brush removes debris from the tank
• Clean-out rod provides a way to stir hard shortening above the cold zone to where it can melt
• 70,000 BTU
• Overall dimensions: 15.5 in. W x 30.125 in. D x 50.25 in. H

Built-in KleenScreen PLUS Filtration System

• 70-lb. capacity filter pan is seamless and made of durable stainless steel
• Stainless steel mesh screen filters from both sides
• Motor and pump circulate the compound at 8 gal. per min.
• One-touch push button switch engages the motor and pump
• Drain valve interlock switch turns gas burners off automatically when the oil is draining
• 115 V/60 Hz/1 ph, 6 A, ¹⁄₃ HP
• CSA Gas-Fired listed; NSF and ENERGY STAR certified

*Free shipping on Vulcan 1TR45AF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 15-1/2" W, free-standing, 45-50 lbs. capacity, solid state analog knob control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 70,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR45AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
