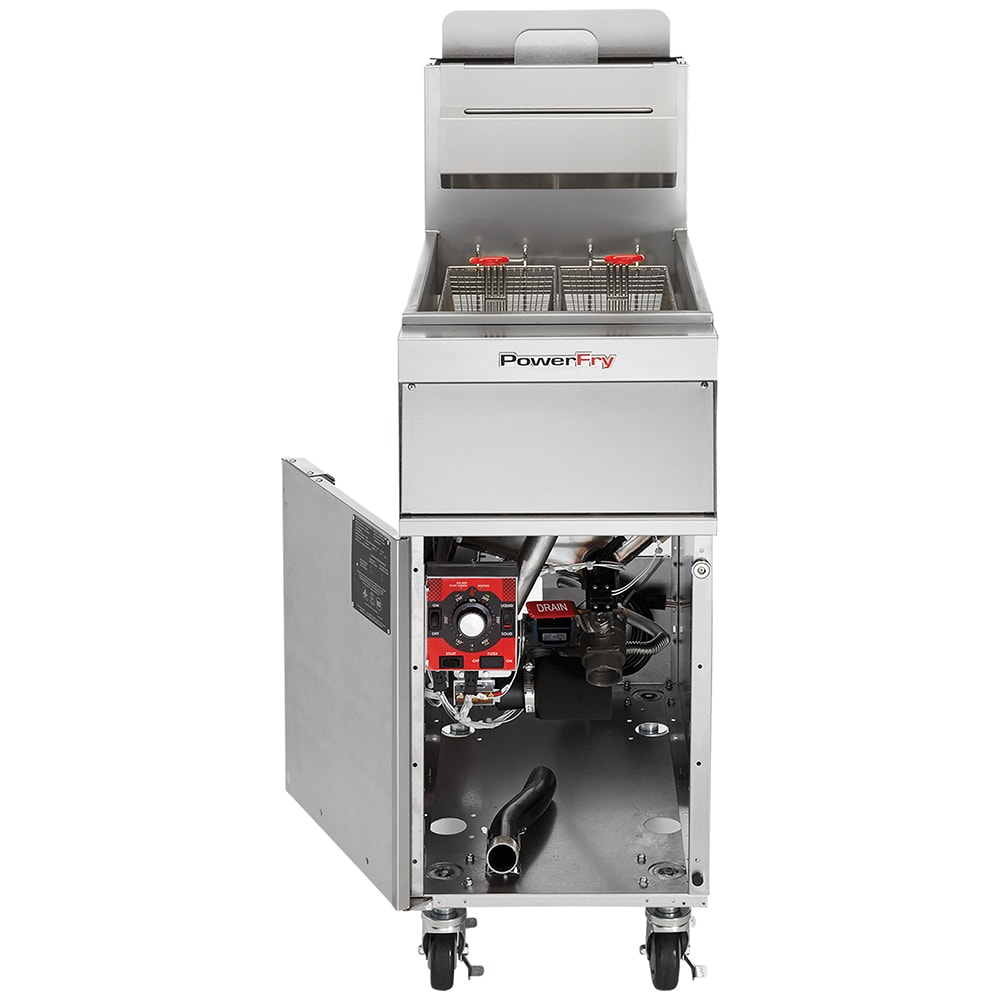

Vulcan 1TR45AF Gas Fryer - (1) 50 lb Vat, Floor Model, Liquid Propane

The Vulcan 1TR45AF PowerFry3™ fryer has a stainless steel fry tank with a capacity of 45-50 pounds. Two fry baskets are included to fry two batches of product at once, and it adjusts from 200 to 390 degrees Fahrenheit to suit different applications. It idles to maintain the cooking temperature while saving energy, and the ThreePass™ heat transfer system increases cooking efficiency. To extend the life of the oil and lower the BTUs, the unit uses a SoftStart™ ignition system. A tank brush and clean-out rod simplify cleaning, and the unit can be moved on 6-inch adjustable casters. Two of the casters lock to hold the unit in place while cooking.

A KleenScreen PLUS® filtration system is built into the Vulcan 1TR45AF PowerFry3 fryer to ensure oil does not transfer flavors from previous batches. The filter pan is made of stainless steel and has a 70-pound capacity. With the ¹⁄₃ horsepower motor and pump, the frying compound is circulated at 8 gallons per minute. These parts are activated with a one-touch push button switch. When oil is draining, the gas burners automatically shut off through the interlock switch.

Product Details

• Heated by propane
• 45-50 lb. oil capacity in the stainless steel fry tank
• Twin fry baskets for preparing 2 batches at the same time
• Solid state control system adjusts from 200-390 degrees F
• Idles at 4,318 BTU to maintain temperature while saving energy

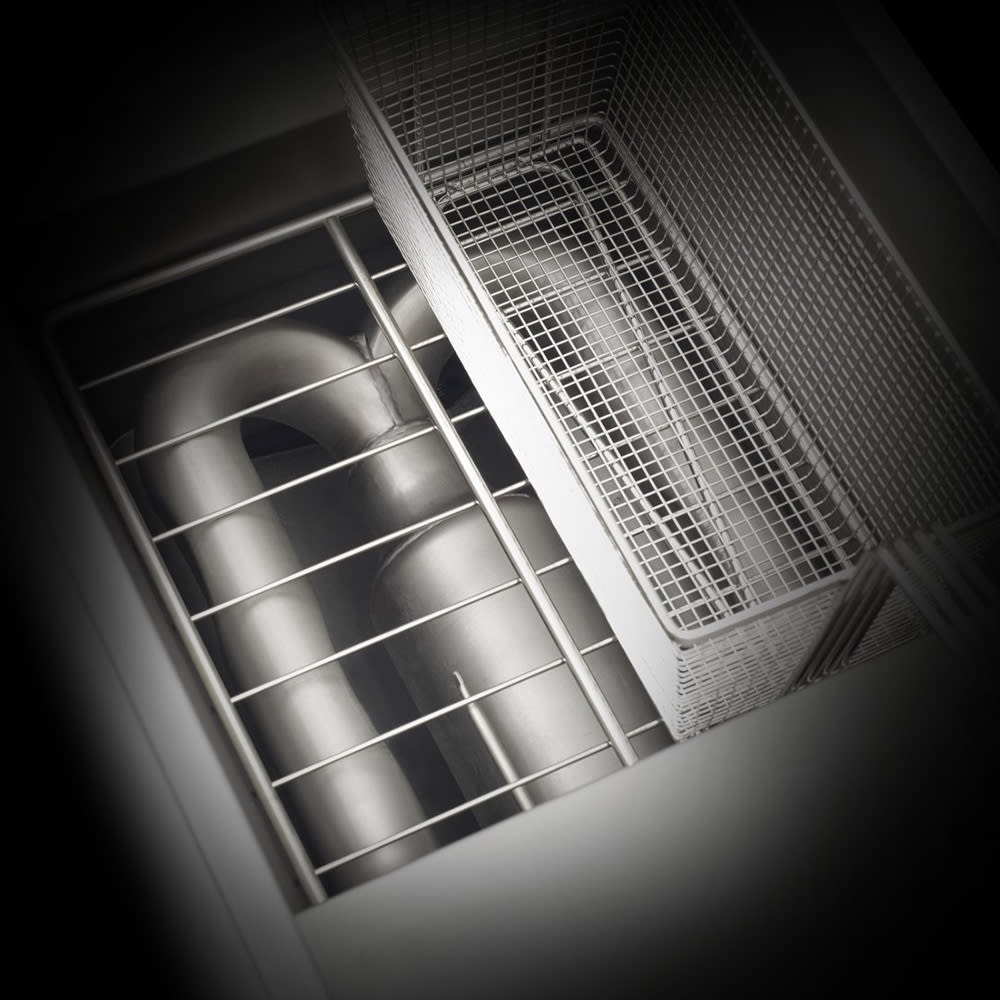

• ThreePass heat transfer system increases cooking efficiency
• SoftStart ignition system extends oil life and lowers BTUs
• Hi-limit shut-off turns the gas valve off and extinguishes the pilot if shortening gets too hot
• Stainless steel cabinet is heavy duty for consistent use
• 2 of (4) 6-in. adjustable casters lock in place
• Comes with a tank brush for removing debris
• Clean-out rod enables users to carefully stir hardened shortening above the cold zone where it can melt
• 70,000 BTU
• Overall dimensions: 15¹/₂ in. W x 30¹/₈ in. D x 50¹/₄ in. H

Built-in KleenScreen PLUS Filtration System

• 70-lb. capacity, seamless, stainless steel filter pan
• Stainless steel mesh screen filters from both sides
• Motor and pump circulate the compound at 8 gal. per min.
• One-touch push button engages motor and pump
• Drain valve interlock switch automatically turns off gas burners when oil is draining
• 115 V/60 Hz/1 ph, 6 A, ¹⁄₃ HP
• CSA Gas-Fired listed; NSF and ENERGY STAR certified

*Free shipping on Vulcan 1TR45AF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 15-1/2" W, free-standing, 45-50 lbs. capacity, solid state analog knob control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 70,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1TR45AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
