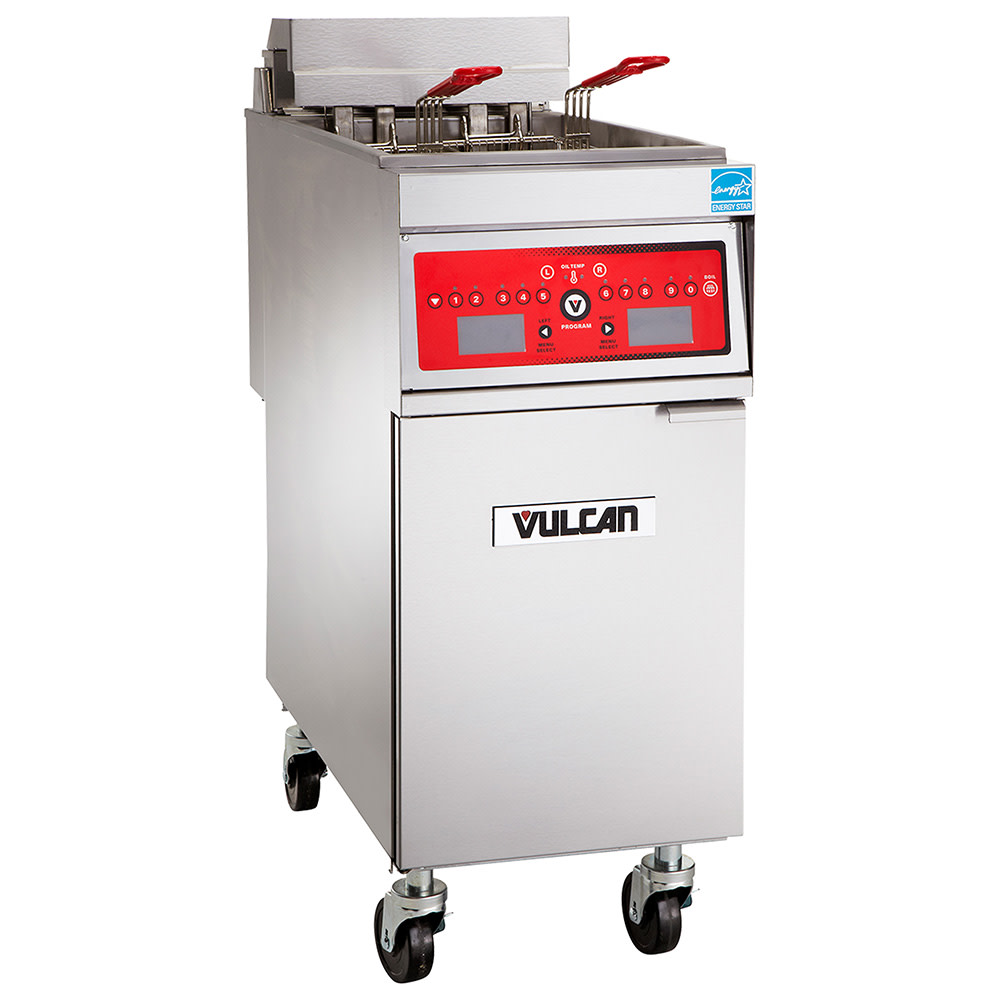

Vulcan 1ER85AF Electric Fryer - (1) 85 lb Vat, Floor Model, 208v/3ph

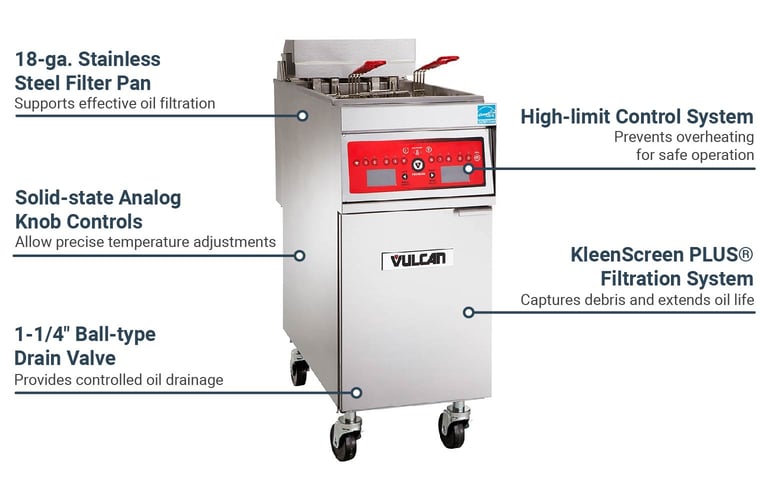

The Vulcan 1ER85AF electric fryer is designed with a high-limit control system to promote safe operation by preventing overheating. This free-standing floor model fryer features an 85-pound oil capacity, making it suitable for demanding commercial kitchens. Its solid-state analog knob controls allow temperature adjustments from 200 to 390 degrees Fahrenheit within +/- 2 degrees, while multiple fat melt modes gradually warm oil to the ideal frying temperature. Fast heat recovery ensures consistent cooking results during busy service hours.

For efficient oil filtration, the Vulcan 1ER85AF fryer is equipped with a seamless 18-gauge stainless steel filter pan that works in conjunction with the KleenScreen PLUS® filtration system to capture food debris and extend oil life. A 1¹/₄-inch full-port ball-type drain valve provides controlled oil removal, and the drain valve interlock switch shuts off heating elements when draining oil or lifting heating elements for cleaning. The Boil-Out ByPass™ system streamlines cleaning by allowing the removal of boil-out solution without direct contact with the drain manifold, filter pan, or motor/pump. Built for durability, the fryer has a stainless steel cabinet and a 16-gauge stainless steel fry tank, while four 6-inch adjustable legs provide stability and height customization.

Product Details

• 1 vat configuration
• 85-lb. total oil capacity
• 16-ga. stainless steel fry tank
• Seamless 18-ga. stainless steel filter pan
• Stainless steel cabinet
• Solid-state analog knob controls
• Temperature range: 200-390 degrees F
• Multiple fat melt modes
• Fast heat recovery
• KleenScreen PLUS filtration system
• Boil-Out ByPass system
• 1¹/₄-in. full-port ball-type drain valve
• Drain valve interlock switch
• Low-watt density ribbon-style heating elements
• High-limit control system
• 2 twin fry baskets with plastic-coated handles
• (4) 6-in. adjustable legs

Dimensions & Utilities

• 21 in. W x 34³/₈ in. D x 39⁷/₁₆ in. H
• 24 kW
• 208 V/60 Hz/3 ph

Product Features

*Free shipping on Vulcan 1ER85AF within the 48 contiguous states.

From The Manufacturer

Fryer, electric, 21" W, free-standing, 85 lbs. capacity, solid state analog knob controls with melt cycles, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, (4) adjustable legs, 208v/3, cCSAus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1ER85AF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
