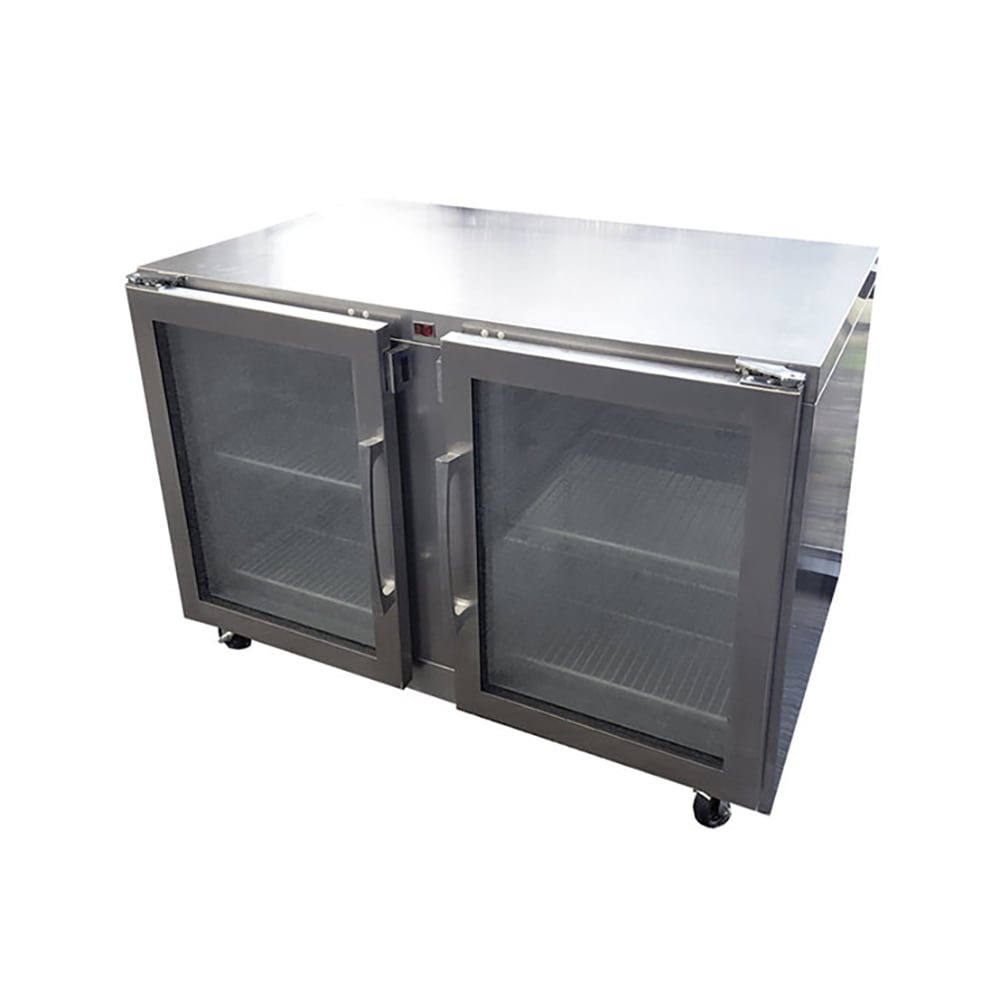

Traulsen UHG48LR-0420 48" W Undercounter Refrigerator w/ (2) Sections & (2) Doors, 115v

The Traulsen UHG48LR-0420 undercounter refrigerator is designed to offer cold storage in compact locations, providing a capacity of 13.56 cubic feet and holding two powder-coated shelves per section. These shelves are mounted on pilasters and are adjustable in ¹/₂-inch increments. Users can stock the interior with ease through the two left- and right-hinged doors, which stay open past 105 degrees and self-close at 90 degrees. This unit’s construction consists of stainless steel, anodized aluminum, and galvanized steel for full-body strength, and to lock in cooler temperatures, the inside cabinet is foamed in with 2-inch-thick polyurethane.

This Traulsen UHG48LR-0420 two-section and two-door refrigerator’s refrigeration system is located at the rear for a flush and comfortable fit in most setups. This system includes components, such as capillary tubes, a hermetic compressor, and a forced-air evaporator coil, to facilitate R290 hydrocarbon refrigerant. The non-electric condensate pan reduces excessive amounts of humidity, and this unit is operated with a three-digit LED display that enables users to monitor set temperatures between 34 and 38 degrees Fahrenheit.

Product Details

• 2 sections
• 13.56-cu.-ft. interior space
• 2 powder-coated wire shelves per section
• Mounted on pilasters and adjustable in ¹/₂-in. increments
• Self-closing (90 degrees), stay-open (105 degrees) gasket-profile doors
• Cabinet exterior front and 1-piece sides made of heavy-gauge stainless steel
• Cabinet interior and door liners made of anodized aluminum
• Cabinet back and bottom made of galvanized steel
• Non-CFC, foamed-in-placed 2-in-thick polyurethane

Refrigeration System

• Balanced, rear-mounted refrigeration system
• R290 refrigerant
• Capillary tube system
• Hermetic compressor
• Forced-air evaporator coil
• Non-electric condensate evaporator
• Temperature holding range: 34-38 degrees F
• 3-digit LED display in Fahrenheit and Celsius

Dimensions & Utilities

• 48 in. W x 50³/₈ in. D x 33⁵/₈ in. H
• 7.5 A, ¹/₄ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug

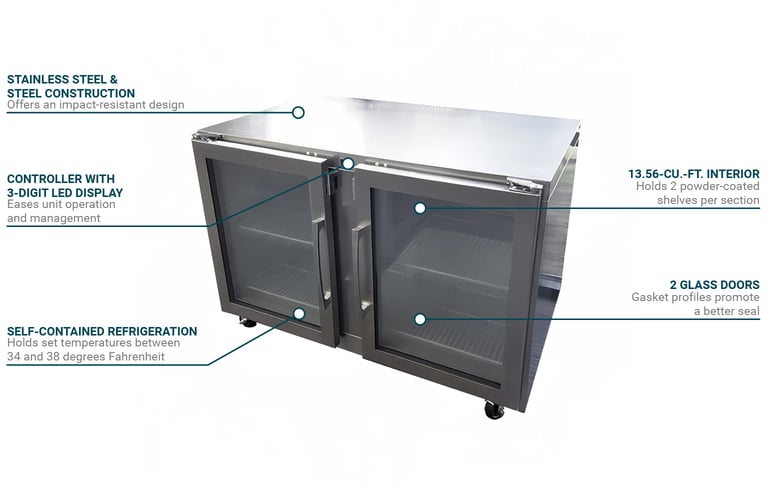

  Product Features



  Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

  *Free shipping on Traulsen UHG48LR-0420 within the 48 contiguous states.

  From The Manufacturer

  Dealer's Choice Compact Undercounter Refrigerator, Reach-in, two-section, 48" wide, stainless steel exterior top, sides & glass door with EZ-Clean Gasket, hinged left/right, anodized aluminum interior, galvanized exterior back & bottom, rear mounted, self-contained refrigeration, (4) 4" casters, 1/4 hp, cETLus, ETL-Sanitation

  *Image may not depict product color, inclusions or accessories.

  Resources

  • Comparing Refrigerated Prep Tables, Chef Bases, Worktops, & Undercounter Units
  • Undercounter Refrigerators Provide Compact Cold Storage

6-year Parts & Labor; 7-year Compressor

Traulsen UHG48LR-0420 Specifications

Documents

Spec Sheet

Warranty
