Traulsen TBC2H-8 48" Floor Model Roll In Blast Chiller - (26) Pan Capacity, 115/208-230v/1ph

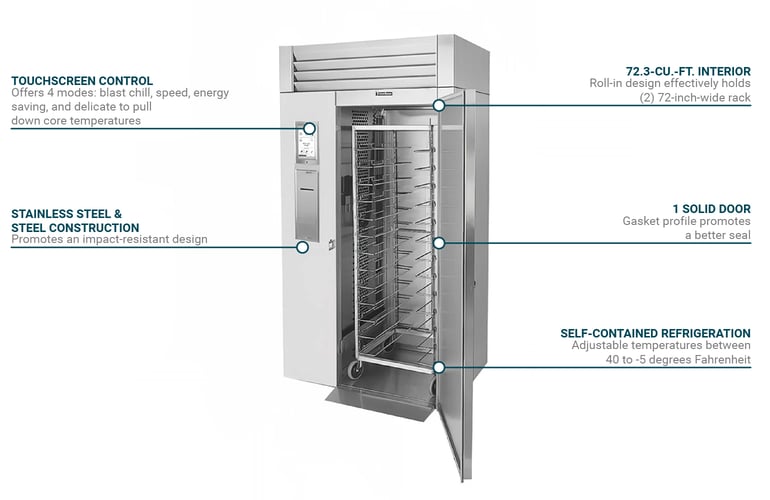

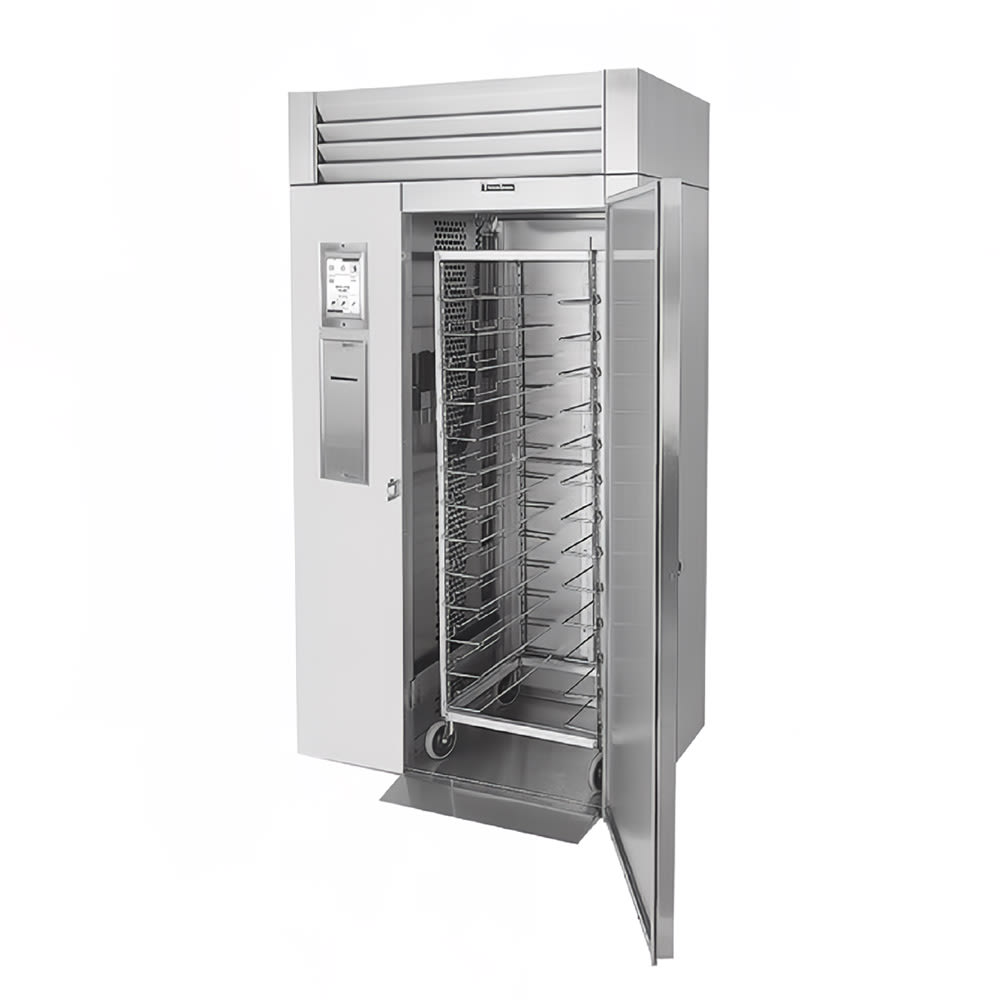

The Traulsen TBC2H-8 floor model roll-in blast chiller quickly cools the temperature of cooked meats and other foods. The top-mounted refrigeration system is dual style and reaches temperatures between 40 to -5 degrees Fahrenheit, while the expansion valve and high-humidity evaporator coils circulate R448A refrigerant along the inside of the cabinet. Users should note that the condensing unit is remote—meaning it's purchased separately for blast chilling. This unit’s EPICON control system provides better management, allowing operators to facilitate between four cycles in automatic or manual mode; automatic mode is assisted through the built-in food probes.

The Traulsen TBC2H-7 blast chiller’s 72.3-cubic-feet interior space fits two 72-inch-high racks, which is great for high- to mid-duty tasks. The body’s interior and exterior are made of stainless steel, and the floor is padded with a ³/₄-inch-thick cork for efficient temperature holding. The cabinet and door’s 2-inch-thick polyurethane also assists with reducing operational costs and recovery times. The gasket-profile solid door keeps any products inside safe and can be locked to reduce tampering. This door features a stay-open configuration when opened past 120 degrees.

Product Details

• 72.3-cu.-ft. interior space
• Accommodates (2) 72-in. high racks
• 1 solid right-hinged door
• Stay-open feature past 120 degrees
• Gasket profile enhances seal
• Anti-condensate heater
• Interior and exterior made of durable stainless steel
• Heavy-gauge galvanized steel at the cabinet top, back, and bottom
• ³/₄-in.-thick resilient cork enhances insulation
• 2-in.-thick polyurethane insulation in cabinet and door

Refrigeration System

• 2 top-mounted refrigeration systems charged with R448A refrigerant
• System features expansion valve and high-humidity evaporator coils
• High-speed evaporator fans
• Air-cooled compressor
• Defrost system
• Temperature holding range: 40 to -5 degrees F
• Remote condensing unit for blast chilling sold separately

Touchscreen Controls

• 4 total modes: blast chill, speed, energy saving, and delicate modes
• Food probes monitor HACCP data
• 90-day memory storage
• Supports automatic and manual modes
• Set product names, user names, and chill-cycle parameters
• Alarm sounds upon cycle completion

Dimensions & Utilities

• 48¹/₂ in. W x 71⁵/₈ in. D x 90³/₈ in. H
• (2) 16 A, ¹/₂ HP
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Traulsen TBC2H-8 within the 48 contiguous states.

From The Manufacturer

Spec-Line Roll-In Blast Chiller with EPICON Control, double depths holds (2) 72" high racks, self-contained holding refrigeration system, remote chilling refrigeration system not included, chills 250# - 500#, front door hinged right, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor
