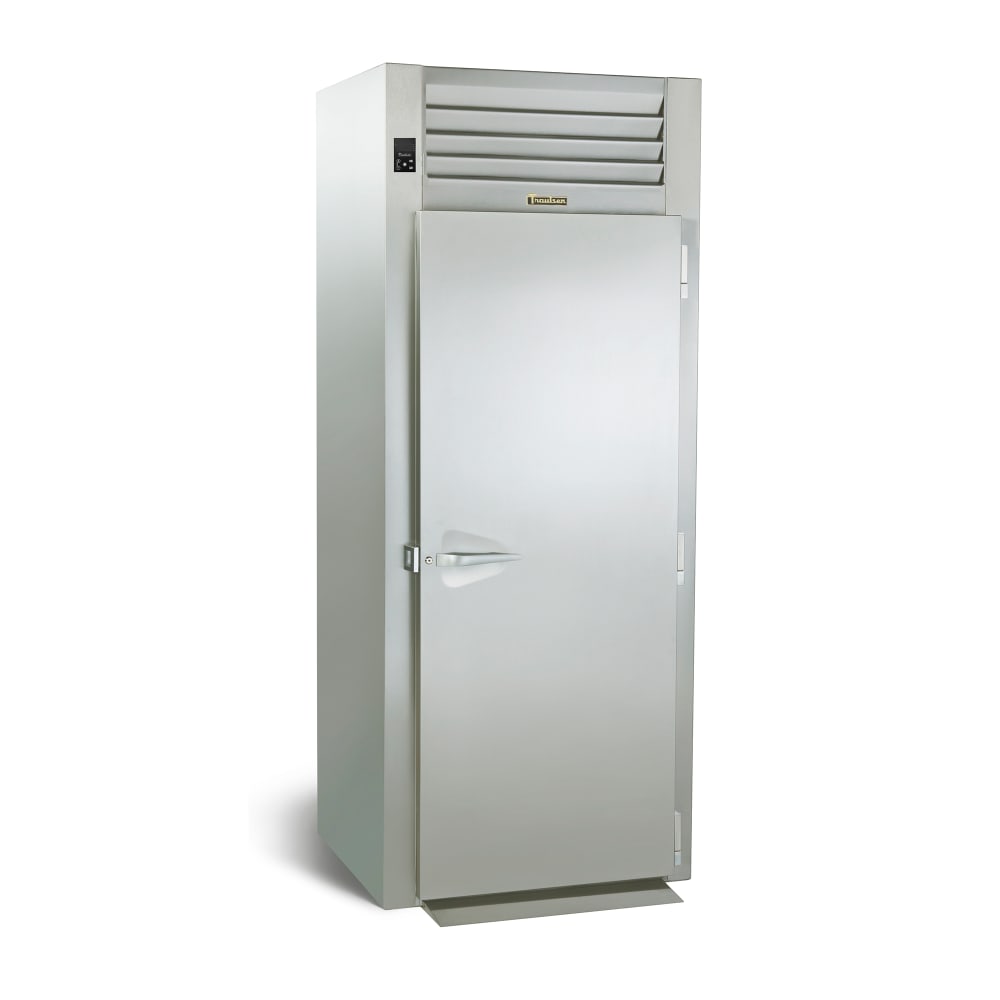

Traulsen RR132L-COR01 30" One Section Roll In Refrigerator, (1) Left Hinge Solid Door, 115v

This Traulsen RR132L-COR01 one-section roll-in features a top-mounted refrigeration system that includes a condenser, compressor, and high-humidity evaporator coil to keep the cabinet’s internal temperature between 34 and 38 degrees Fahrenheit. This temperature level is simple to monitor and adjust with the microprocessor control system and simple-to-see three-digit display. This display provides visual and audio alarms, displays temperature in Fahrenheit and Celsius, and has a data port to transfer specifications. The refrigeration system cools the cavity with R134A refrigerant, while a non-electric condensate evaporator reduces high amounts of humidity through intensive use.

This Traulsen RR132L-COR01 one-section roll-in cooler provides a 36-cubic-feet interior space. Because of its roll-in style, this unit can accommodate a maximum rack size with wheels inboard of the frame that measures 27 inches wide by 29 inches deep by 66 inches high; racks can be easily inserted using the built-in ramp. A single solid door is constructed with the body, and the cabinet exterior and interior are made of durable, corrosion-resistant stainless steel. The stainless steel door is mounted on cam-lift hinges, which have a concealed switch that activates the interior cabinet’s lighting. This model has a ³/₄-inch thick cork and 2-inch-thick polyurethane insulation to upkeep optimal temperatures while minimizing energy expenditure.

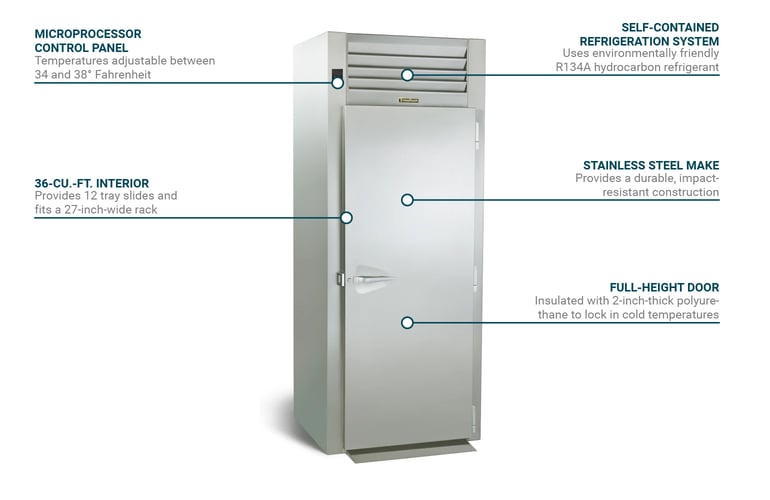

Product Details

• Roll-in, 1-section design
• 36-cu.-ft. interior space
• Full-height doors with locking hasp
• Condensate heaters behind door
• For life cam-lift hinges and door handles
• Door stays open 120 degrees
• Stainless steel exterior and interior
• Stainless steel breaker caps
• Interior cabinet lighting
• Mesh screen
• (4) 6-in.-high legs

Refrigeration System

• Top-mounted refrigeration system
• R134A refrigerant
• Simple-to-clean condenser
• Thermostatic expansion valve
• Air-cooled compressor
• High-humidity evaporator coil
• Non-electric condensate evaporator located at the top
• Temperature holding range: 34-38 degrees F
• Microprocessor control panel

Dimensions & Utilities

• 35¹/₂ in. W x 35⁹/₁₆ in. D x 83¹/₄ in. H
• 10.6 A, ¹/₃ HP
• 115 V/60 Hz/1 ph, NEMA 5-15P plug

Product Features



Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Free shipping on Traulsen RR132L-COR01 within the 48 contiguous states.

From The Manufacturer

RR132L-COR01 with Correctional Features, Refrigerator, Roll-in, hinged left, one-section, 36.0 cu. ft., self-contained refrigeration, stainless steel exterior and interior, standard depth cabinet, full-height doors, accepts 66" high racks (by others) includes cabinet lighting, locking hasp, mesh screen, lexan control cover and hinges without covers, microprocessor controls, 1/3 HP, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Resources
• What Are Commercial Refrigerators Made Of?
• Understanding How a Refrigerator Works
• Installing Casters on a Reach-in: Video & Instructions
• Reach-in Refrigerator Buyers' Guide

Traulsen RR132L-COR01 Specifications

Spec Attribute	Spec Value
Manufacturer	Traulsen
Color	Silver
Compressor Location	Top
Cubic Feet	36
Depth (in)	35.56
Door Type	Solid
Doors	Full
Height (in)	83.25
Hertz	60
Hinge Configuration	Left
Interior Material	Aluminum
NEMA	5-15P
No. of Doors	1
Phase	1
Product	Reach-In Refrigerators
Product Type	Commercial Refrigeration
Rating	Spec
Refrigerant	R450A
Sections	1
Special Features	Long Life EZ-Clean Door Gasket
Thermometer Type	Digital
Type	Roll In
Voltage	115
Warranty	6-year Parts & Labor; 7-year Compressor
Width (in)	30
Weight	435.00
