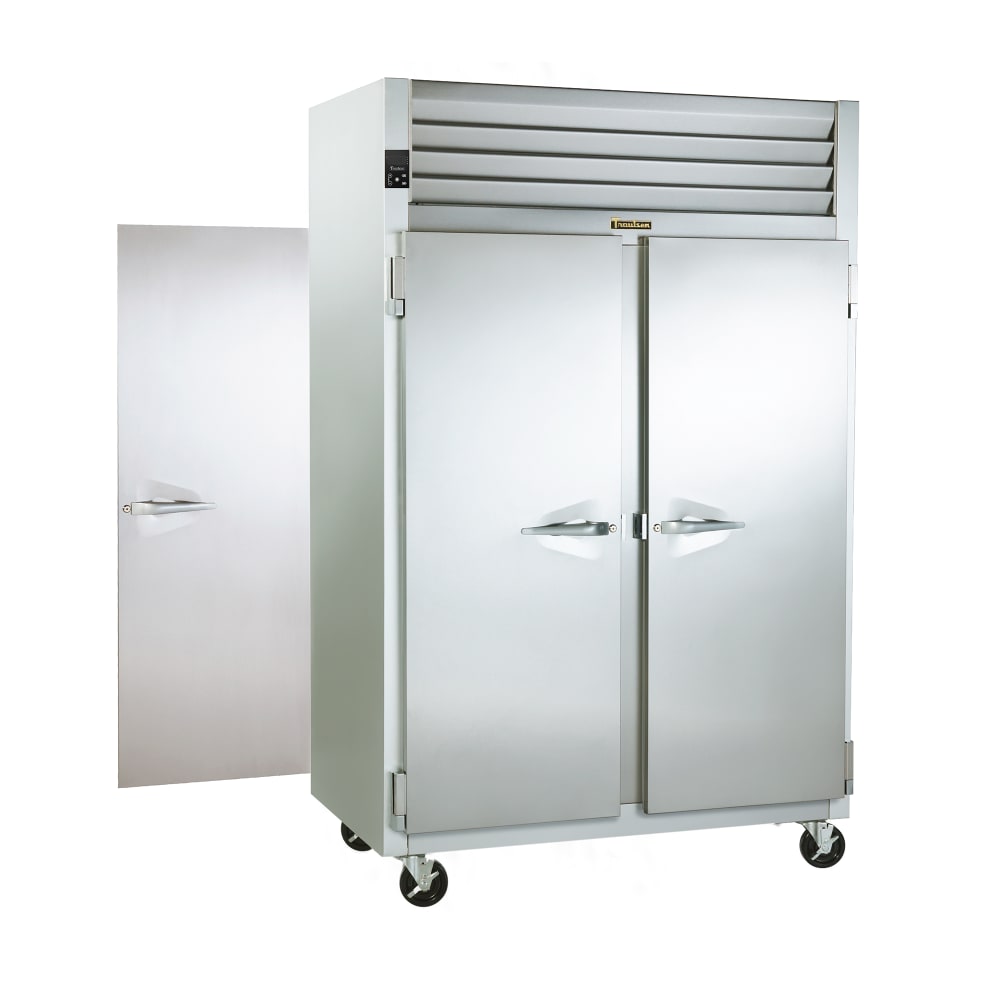

Traulsen G24314P Full Height Insulated Mobile Heated Cabinet w/ (6) Shelves, 208v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 206-G24314P • MPN: G24314P
Ships Free | Special Order Item

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Price: $7,230.24
Call Us For Pricing

Image may not depict product color, inclusions or accessories.

Traulsen G24314P Description


The one-piece sides and interior on the Traulsen G24314P pass-through hot holding cabinet are made from anodized aluminum, a material that makes them durable and corrosion resistant. The easy-to-use, water-resistant microprocessor control has a 3-digit LED temperature display and a Fahrenheit or Celsius temperature scale display capability.

This particular hot holding cabinet two section model is equipped with full-size doors on both sides that are left hinged on the left section and right hinged on the right section. These doors each have a gasket-protecting metal door pan and removable plug cylinder locks. The doors also have guaranteed-for-life, gravity-action, cam-lift, self-closing metal glide hinges with a stay open feature at 120 degrees. The hinges each include a concealed switch that automatically activates the interior LED lighting. The standard interior of the Traulsen G24314P pass-through hot holding cabinet includes three plated wire shelves per section mounted on pilasters that are installed in the factory.

Product Details

  • 2-section pass-through model
  • Full-size stainless steel doors on both sides with locks
  • Doors on left section are left hinged
  • Doors on right section are right hinged
  • High-quality stainless steel exterior front and doors
  • Self-closing doors with stay open feature at 120 degrees
  • Doors are equipped with gasket-protecting metal door pans and removable plug cylinder locks
  • Durable and corrosion resistant anodized aluminum 1-piece sides and interior
  • Easy-to-use microprocessor control with 3-digit LED temperature display and Fahrenheit or Celsius temperature scale display capability
  • Temperature range of 140-180 degrees F
  • One time start-up temperature adjustment
  • ON/OFF switch on control face
  • Lifetime guaranteed cam-lift hinges
  • Lifetime guaranteed horizontal work flow door handles limit protrusion from door face into aisle ways
  • Automatically activated LED lights
  • Damage resistant stainless steel breaker caps
  • 3 plated wire shelves per section supported on pilasters installed at the factory
  • Full width shelves do not have large gaps requiring “bridge” or “junior shelves”
  • Load limit per shelf should not exceed 225 lbs.
  • Magnetic snap-in EZ-clean door gaskets
  • Gasket protecting anodized aluminum door liner
  • Stainless steel one-piece louver assembly
  • 4 high casters measuring 6-in. with locks
  • Gasket profile and Santoprene® material increase gasket life and simplify cleaning
  • Cabinet and doors are insulated with 2-in.-thick high density, non-CFC, foamed-in-place polyurethane
  • Low-watt-density, serpentine-style heater generates electric heat
  • Low-velocity air is forced across the large surface area to efficiently move heat radiating away through a down-air distribution duct
  • Heat is even distributed throughout the cabinet, ensuring the proper holding environment for hot food without drying it out
  • Vent at the top of the cabinet controls positive humidity
  • 208/115 V/60 Hz/1 ph, 15.5 A, NEMA L14-20
  • Overall Dimensions: 52 18 in. W x 37 1516 in. D x 83 14 in. H
  • cULus Listed and NSF and ENERGY STAR Certified

Dealer's Choice Hot Food Holding Cabinet, two-section, Pass-thru, microprocessor control, full-height stainless steel doors (control side hinged left/right, other side hinged left/right), anodized aluminum sides & interior, (3) clear coated shelves per section (factory installed), 6" high casters, cUL, NSF, ENERGY STAR®, 208/115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Traulsen G24314P Specifications

PDF Spec Sheet
Manufacturer Traulsen
Size Full Height
Slide Type Universal
Type Insulated
Warranty 3 year Parts & Labor
No. of Doors 4
Door Type Solid
Load Type Pass Thru
Pan Capacity 6 Full Size
Construction Stainless Steel
Height (in) 83.44
Width (in) 52.13
Depth (in) 37.94
Controls Digital
Control Location Top
Door Design Full
Application Heat
Phase 1
Voltage 208
Hertz 60
Weight 590.00
Traulsen G24314P Certifications
  • UL
  • NSF
  • Energy Star
