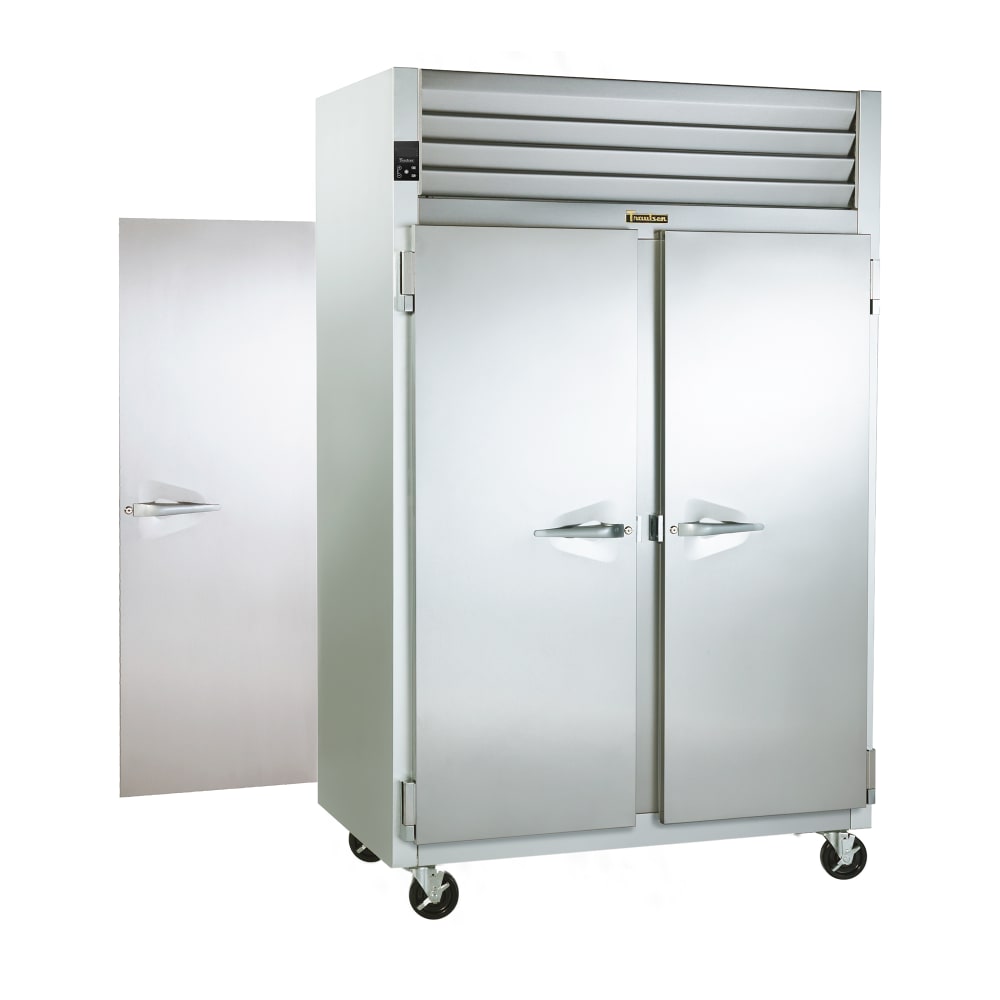

Traulsen G24304P Full Height Insulated Mobile Heated Cabinet w/ (6) Shelves, 208v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 206-G24304P • MPN: G24304P
Ships Free | Special Order Item

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Price: $7,959.96
Call Us For Pricing

Image may not depict product color, inclusions or accessories.

Traulsen G24304P Description


The Traulsen G24304P hot-holding cabinet's two-section, pass-through design allows kitchen staff to store product inside the cabinet for the wait staff to pull and serve throughout the day. This two-section model has two half size doors on both sides of the cabinet; the left section doors are hinged on the left and right section doors are hinged on the right. The hinges each have a concealed switch that automatically activates the interior LED lighting when the doors are opened.

To keep the temperature inside the cabinet retained, the doors self-close but also stay open past 120 degrees to make loading product easier. The aluminum one-piece sides and interior are anodized in order to be protected from corrosion. On the Traulsen G24304P hot-holding cabinet, the water resistant microprocessor control system is easy to use and includes a digital LED display and a Fahrenheit or Celsius temperature display.

Product Details

  • Stainless steel front and doors
  • Self-closing doors with locks
  • Doors stay open when opened past 120 degrees
  • Half size doors on both sides
  • Left section doors are hinged on left
  • Right section doors are hinged on right
  • Cam-lift hinges are guaranteed for life
  • Doors are equipped with gasket-protecting metal door pans and removable cylinder locks
  • Door liner made with is gasket-protecting anodized aluminum
  • Magnetic, snap-in, EZ-clean door gaskets
  • Horizontal work flow door handles do not produce into aisle ways
  • Cabinet and doors are insulated with 2-in.-thick, high-density, non-CFC, foamed-in-place polyurethane
  • Vent at the top of cabinet is included for positive humidity control
  • Heavy gauge aluminized steel exterior cabinet top and bottom
  • Durable, corrosion-resistant, anodized aluminum one-piece sides and interior
  • Microprocessor control with 3-digit LED temperature readout
  • Ducted fan air distribution system for even temperature throughout cabinet
  • Standard operating temperature range of 140-180 degrees F
  • One time start-up temperature adjustment
  • ON/OFF switch on control face
  • Automatically activated interior LED lights
  • 3 wire shelves per section are supported on pilasters
  • Shelves are full width and do not have large gaps that require “bridge” or “junior shelves”
  • Load limit per shelf should not exceed 225 lbs.
  • Damage-resistant stainless steel breaker caps
  • Stainless steel one-piece louver assembly
  • 4 high casters with locks measure 6 in. each
  • Gasket profile and Santoprene® material make cleaning simple and increase gasket life
  • Low-watt-density, serpentine-style heater generates electric heat
  • Low velocity air is forced through the heater’s large surface area to move heat radiating away through a down-air distribution duct, assuring proper holding environment for hot food product without drying it out
  • 208/115 V/60 Hz/1 ph, 15.5 A
  • Overall Dimensions: 52 18 in. W x 37 1516 in. D x 83 14 in. H
  • cULus Listed and NSF and ENERGY STAR Certified

Dealer's Choice Hot Food Holding Cabinet, two-section, Pass-thru, microprocessor control, half-height stainless steel doors (control side hinged left/right, other side hinged left/right), anodized aluminum sides & interior, (3) clear coated shelves per section (factory installed), 6" high casters, cUL, NSF, ENERGY STAR®, 208/115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Traulsen G24304P Specifications

PDF Spec Sheet
Manufacturer Traulsen
Size Full Height
Slide Type Universal
Type Insulated
Warranty 3 year Parts & Labor
No. of Doors 8
Door Type Solid
Load Type Pass Thru
Pan Capacity 6 Full Size
Construction Stainless Steel
Height (in) 83.44
Width (in) 52.13
Depth (in) 37.94
Controls Digital
Control Location Top
Door Design Half
Application Heat
Phase 1
Voltage 208
Hertz 60
Weight 590.00
Traulsen G24304P Certifications
  • UL
  • NSF
  • Energy Star
