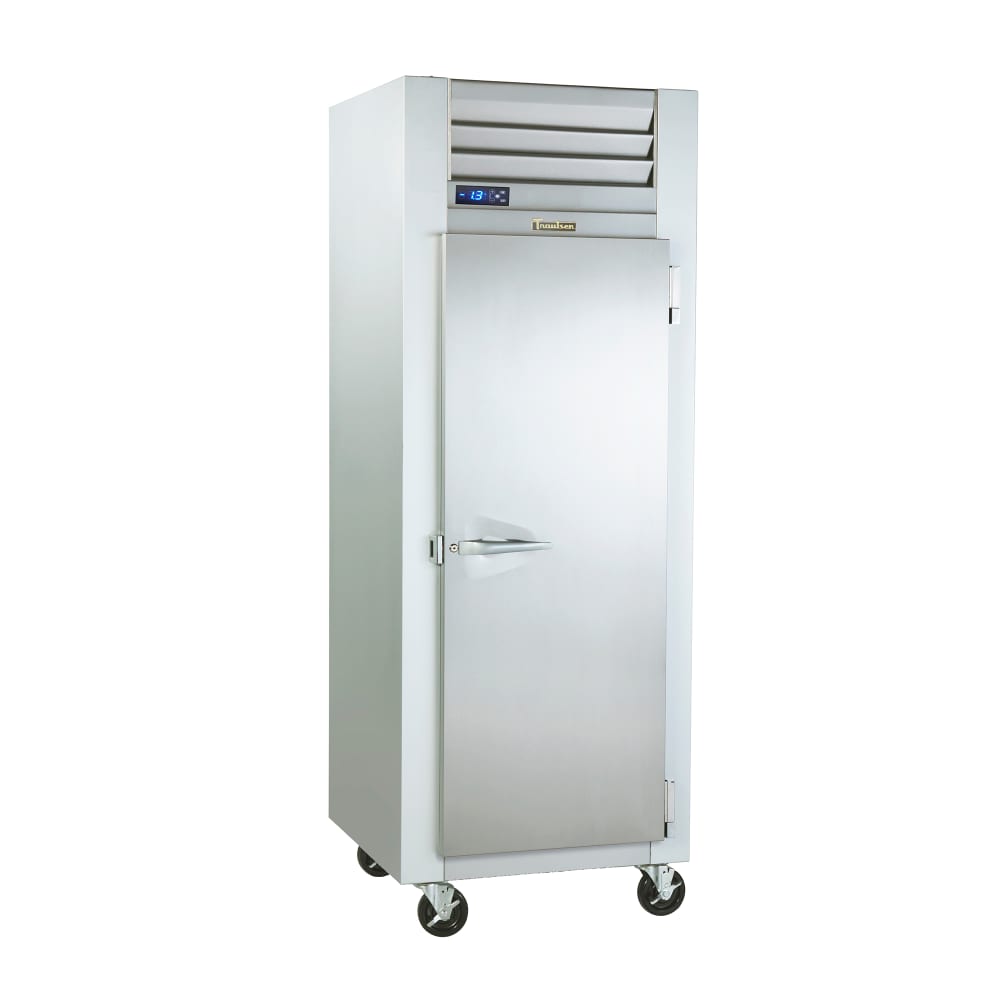

Traulsen G14302P Full Height Insulated Mobile Heated Cabinet w/ (3) Shelves, 208v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 206-G14302P208 • MPN: G14302P
Ships Free | Special Order Item

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Price: $5,601.96
Call Us For Pricing

Image may not depict product color, inclusions or accessories.

Traulsen G14302P Description


The Traulsen G14302P hot holding cabinet is a pass-through unit, which allows food to be placed in the cabinet from one side and taken out from the other. The right-hinged Dutch doors are made of stainless steel and come with locks to prevent unauthorized access. They also include horizontal handles, which do not impede the kitchen's work flow, and cam-lift hinges that are guaranteed for life. The doors are self-closing but will stay open once they've been opened past 120 degrees, a feature that makes loading and unloading pans a simpler task.

Electric heat provides holding temperatures between 140 to 180 degrees Fahrenheit. The ducted fan system helps distribute hot air evenly throughout the cabinet, and a top-mounted vent controls humidity so food maintains its quality. Foamed-in-place insulation is 2 inches thick to help retain heat in the cabinet. The Traulsen G14302P pass-through hot holding cabinet comes standard with three factory-installed, plated wire shelves. It is constructed with a stainless steel and anodized aluminum exterior and an anodized aluminum interior and door liner.

Product Details

  • Single-section hot holding cabinet
  • Pass-through design allows entry from front and back of unit
  • 140-180 degree F temperature range
  • Serpentine-style electric heater and ducted fan heat the cabinet evenly
  • Humidity is controlled by a top-mounted vent to preserve food quality
  • Half-length doors have locks to prevent unauthorized access
  • Self-closing doors stay open past 120 degrees to ensure staff can load and unload pans
  • Doors on both sides are right hinged
  • Doors have cam-lift hinges, horizontal handles, and anodized aluminum liners
  • EZ-clean door gaskets are magnetic for simple maintenance
  • LED lights are automatically activated when the doors open
  • Microprocessor controls with LED temperature display and On/Off switch
  • Includes 3 plated wire shelves, factory installed and supported by pilasters
  • Stainless steel exterior front and doors are durable and scratch resistant
  • Constructed with anodized aluminum sides and interior
  • 2-in. polyurethane is foamed in place to insulate cabinet and doors
  • (4) 6 in. casters can be locked to keep cabinet in place
  • 115-208 V/60 Hz/1 ph, 1500 W, 7.8 A, 9-ft. cord with a NEMA L14-20P plug
  • Overall Dimensions: 2978 in. W x 371516 in. D x 8314 in. H
  • cULus listed and NSF certified

Dealer's Choice Hot Food Holding Cabinet, Pass-thru, one-section, microprocessor control, half-height stainless steel doors (control side hinged right/other side hinged right), anodized aluminum sides & interior, (3) clear coated shelves (factory installed), 6" high casters, cUL, NSF, ENERGY STARĀ®, 208/115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Traulsen G14302P Specifications

PDF Spec Sheet
Manufacturer Traulsen
Size Full Height
Slide Type Universal
Type Insulated
Warranty 3 year Parts & Labor
No. of Doors 4
Door Type Solid
Load Type Pass Thru
Pan Capacity 3 Full Size
Construction Stainless Steel
Height (in) 83.44
Width (in) 29.88
Depth (in) 37.94
Controls Digital
Control Location Top
Door Design Half
Application Heat
Phase 1
Voltage 208
Hertz 60
Product Type Food Warming Equipment
Product Heated Cabinet
Weight 395.00
Traulsen G14302P Certifications
  • UL
  • NSF
  • Energy Star
