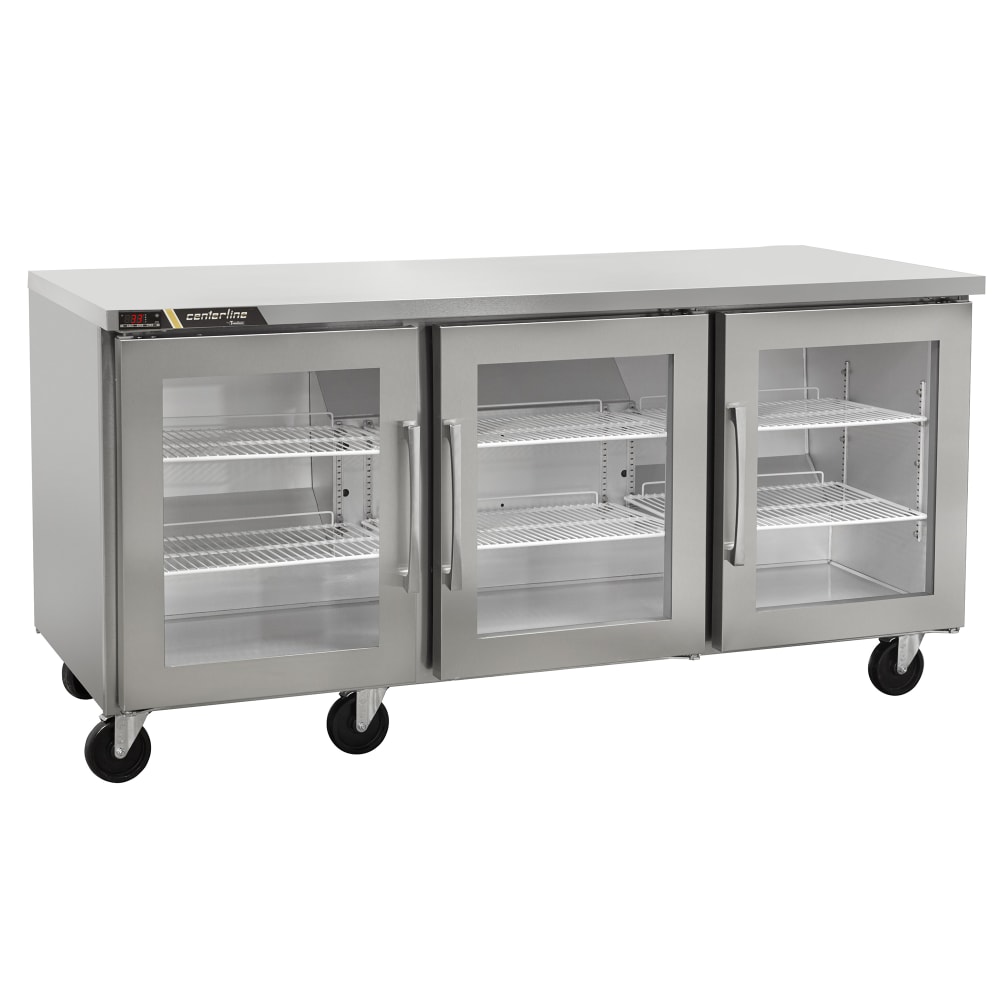

Centerline by Traulsen CLUC-72R-GD-LRR 72" W Undercounter Refrigerator w/ (3) Sections & (3) Doors, 115v

The Centerline by Traulsen CLUC-72R-GD-LRR undercounter refrigerator is a three-section unit offering 18.8 cubic feet of interior space. Its cabinet is furnished with two epoxy-coated shelves for each section, and users can access product through three solid doors that remain open past 105 degrees to ease loading. To preserve cold air, the cabinet is built with foamed-in-place, high-density polyurethane insulation, and by using a self-contained refrigeration system and R290 hydrocarbon refrigerant, this unit maintains temperatures between 32 and 41 degrees Fahrenheit.

The Centerline by Traulsen CLUC-72R-GD-LRR three-section refrigerator’s exterior is made of stainless steel—a rugged, corrosion-resistant metal that’s simple to clean. Its anodized aluminum interior provides additional corrosion resistance to endure high-volume use. Designed for undercounter placement, it measures 72³⁄₁₆ inches wide by 33 inches deep by 34¹⁄₁₆ inches high, and it’s mounted on 4-inch casters to enable mobility. The front set of casters has locks to secure the unit in place.

Product Details

• 3-section unit for undercounter installation
• 18.8-cu.-ft. interior space
• Each section includes 2 epoxy-coated shelves
• 1 left-hinged and 2 right-hinged glass doors (field reversible)
• Doors can be secured open at 105-degree angle
• Temperature holding range: 32-41 degrees F
• Insulated with high-density, foamed-in-place polyurethane to preserve temperatures
• Durable stainless steel exterior is rust resistant
• Electronic controls with LED display for temperature adjustment and monitoring
• Interior is anodized aluminum for corrosion resistance
• Rear-mounted refrigeration system is self-contained to expedite installation
• (4) 4-in.-high casters (front set has locks)
• Uses R290 refrigerant

Product Features

Dimensions & Utilities

• 72³⁄₁₆ in. W x 33 in. D x 34¹⁄₁₆ in. H
• 3.6 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug

*Free shipping on Centerline by Traulsen CLUC-72R-GD-LRR within the 48 contiguous states.

From The Manufacturer

Centerline™ Compact Undercounter Refrigerator, reach-in, three-section, 72"W, 18.80 cu. ft. capacity, self-contained rear-mount refrigeration, (1) left hinged/ (2) right hinged glass doors (field reversible), electronic control with LED display, (2) epoxy coated shelves per section, stainless steel exterior, anodized aluminum interior, (6) casters, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.6 amps, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor
