Traulsen AIH332L-FHS Description

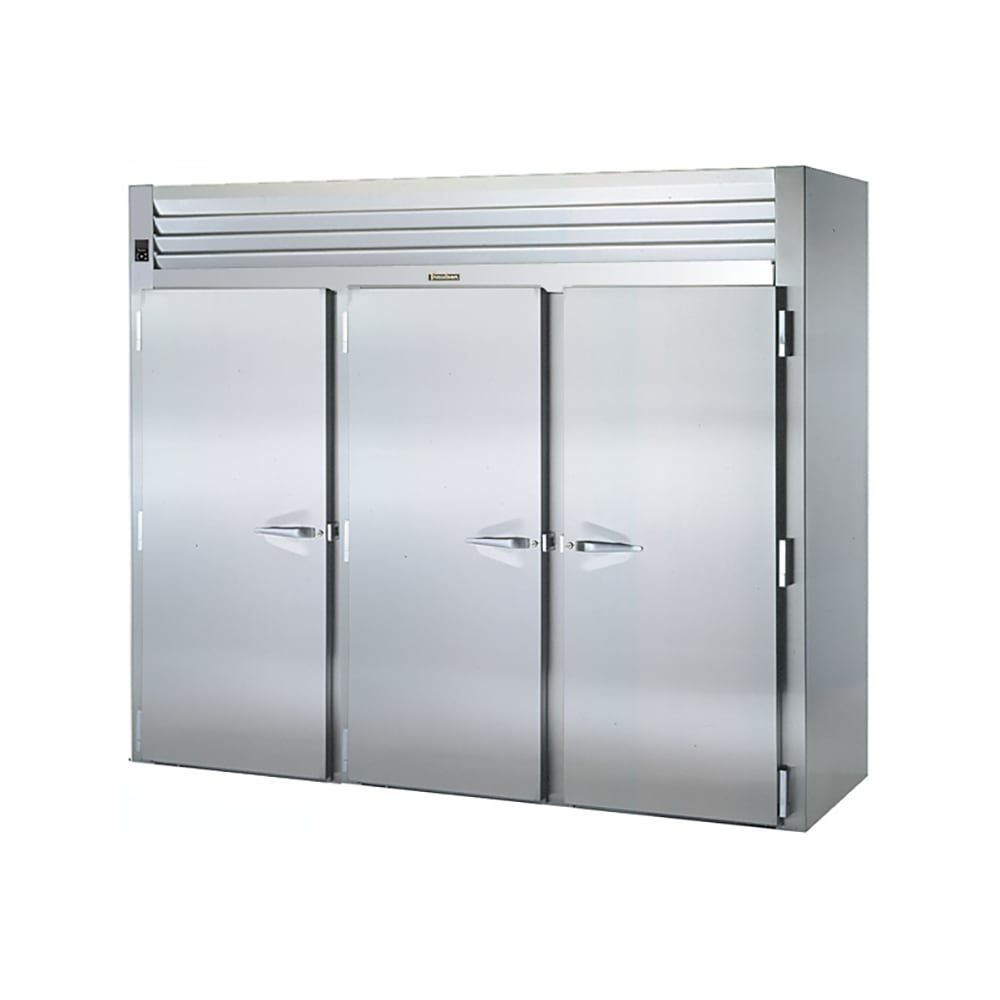

With its three 665⁄16-inch-high doors, the Traulsen AIH332L-FHS Spec-Line heated cabinet accommodates three 66-inch-tall pan racks in each of its three sections. Operators can roll racks up the included stainless steel ramps and into the unit, and stainless steel rack guides help secure the racks in position. The three full-height doors lock in an open position when pushed past 120 degrees, so users don't have to hold the doors open when loading the racks. Designed to withstand heavy use, its exterior is made of corrosion-resistant stainless steel, while the interior is anodized aluminum.

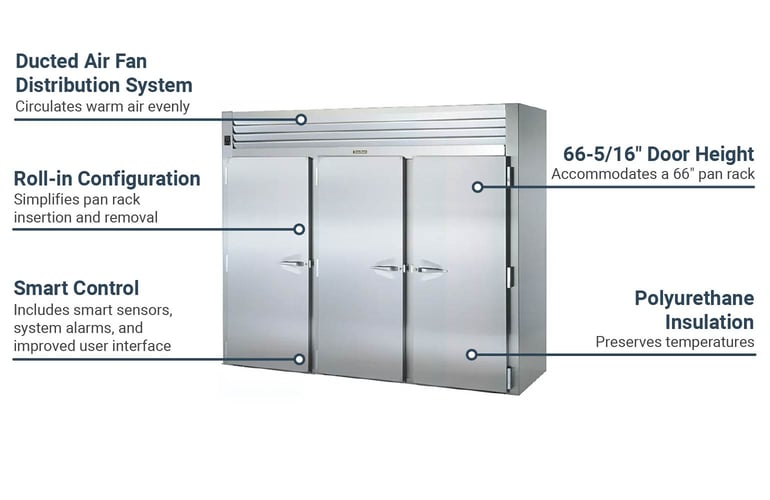

To eliminate cold spots, the Traulsen AIH332L-FHS roll-in heated cabinet uses a ducted fan air distribution system, which circulates warm air evenly throughout the cabinet. Its serpentine-style heater produces temperatures between 140 and 180 degrees Fahrenheit, and because the cabinet and doors are lined with 2-inch-thick, high-density polyurethane insulation, temperatures are preserved, even when some doors are opened and the unit is stored in cool or warm environments. Operators can adjust temperatures with the Smart Control system, which provides an easy-to-read digital LED display. This technology also alerts users if a critical event occurs, such as a power failure, by illuminating its visual alarms.
Product Details
- Part of the A line
- Roll-in layout with 3 sections
- Accommodates (3) 66-in.-tall pan racks (sold separately)
- 117.5-cu.-ft. capacity
- Anodized aluminum interior and stainless steel exterior
- 3 full-length stainless steel doors with locks (1 left-hinged and 2 right-hinged)
- Doors lock in open position when pushed past 120 degrees
- Stainless steel interior rack guides
- Temperature range: 140-180 degrees F
- Smart Control with smart sensors, LED display, and visual alarms
- Serpentine-style heater and ducted fan air distribution system
- 2-in.-thick, foamed-in-place, high-density polyurethane
- Top vent controls humidity
- Automatic incandescent interior lights
- Stainless steel ramps for rack insertion and removal
Dimensions & Utilities
- 1001⁄2 in. W x 359⁄16 in. D x 831⁄4 in. H
- 15.5 A, 3000 W
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Traulsen AIH332L-FHS within the 48 contiguous states.
From The Manufacturer
Spec-Line Heated Cabinet, Roll-in, three-section, stainless steel exterior, aluminum interior, standard depth cabinet, full-height doors, accepts 66" high racks (by others) with microprocessor controls, cETLus, ETL-Sanitation, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Traulsen AIH332L-FHS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Cubic Feet | 117.5 |
| Depth (in) | 35.56 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| kW | 3 |
| Load Type | Roll In |
| No. of Doors | 3 |
| Pan Capacity | 3 Racks |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 3 |
| Series | Spec-Line |
| Size | Full Height |
| Slide Type | None |
| Special Features | All Stainless Exterior |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 100.5 |
| Weight | 943.00 |
