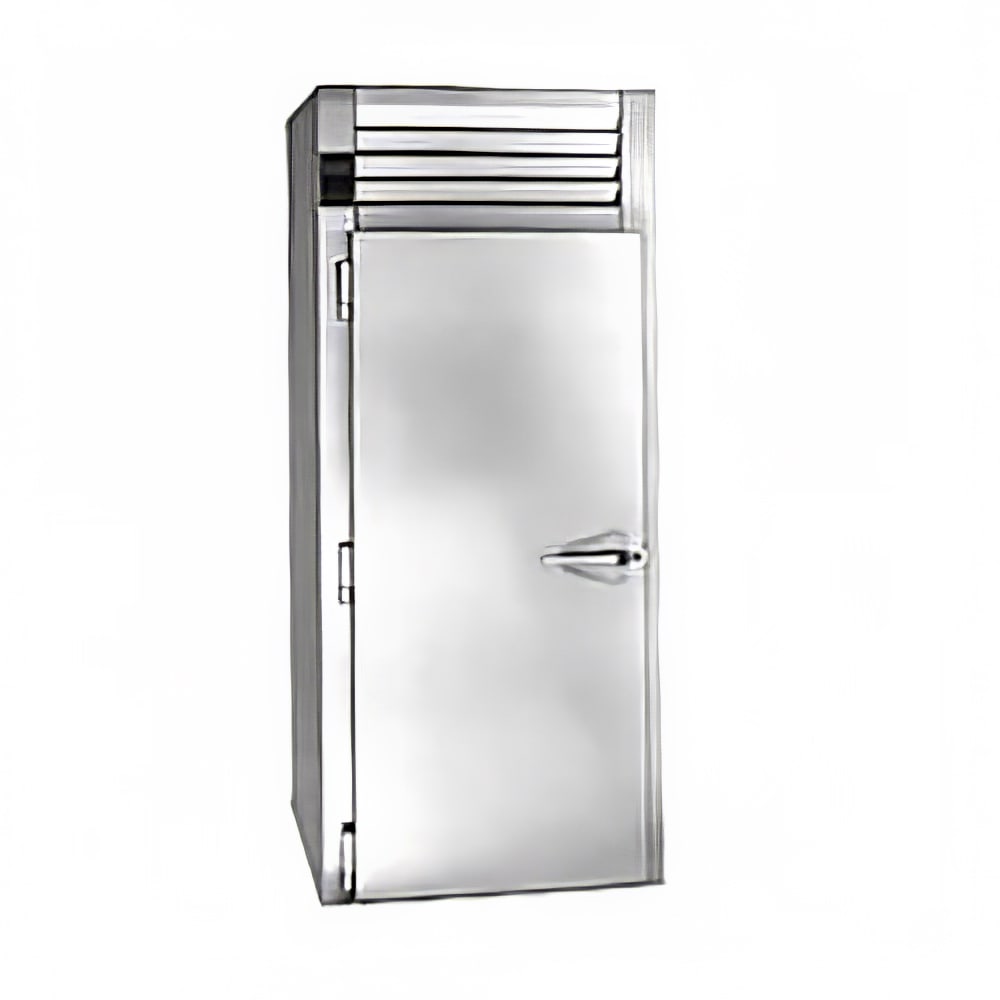

Traulsen AIH132LP-FHS Full Height Insulated Stationary Heated Cabinet w/ (1) Rack Capacity, 208v/1ph

With its 27¹⁄₈-inch door width and 66⁵⁄₁₆-inch door height, the Traulsen AIH132LP-FHS Spec-Line heated cabinet provides ample space for operators to load and remove a 66-inch-tall pan rack. The roll-thru design features a front and back door—both full length and made of solid stainless steel. To streamline insertion and removal, the doors lock in place when opened past 120 degrees, so users don't have to hold the door open. Stainless steel rack guides help secure the pan in place, and stainless steel ramps are included to simplify rolling the rack into the cabinet.

To ensure warm air circulates evenly, the Traulsen AIH132LP-FHS roll-thru heated cabinet uses a ducted fan air distribution system, and its serpentine-type heater produces temperatures from 140 to 180 degrees Fahrenheit to create a safe holding environment. The microprocessor system enables operators to manage and adjust temperatures while alerting users of potential issues, such as power failure, with its visual alarms. To preserve temperatures when the unit is stored in cool or warm environments, the doors and cabinet are lined with high-density polyurethane insulation.

Product Details

• Part of the A collection
• Roll-thru unit with 1 section
• Accommodates a 66-in.-tall pan rack (sold separately)
• 38.8-cu.-ft. capacity
• Temperature range: 140-180 degrees F
• 2-in.-thick, high-density, foamed-in-place polyurethane insulation
• Serpentine-type heater and ducted fan air distribution system
• Top vent controls humidity
• Smart Control for temperature adjustments, on/off options, and alarms
• Stainless steel exterior and anodized aluminum interior
• 2 full-length, right-hinged stainless steel doors with locks (1 front and 1 rear)
• Doors lock in place when opened past 120 degrees
• Rigid stainless steel ramps
• Removable stainless steel interior rack guides for pan rack
• Automatically activated incandescent interior lights

Dimensions & Utilities

• 35¹⁄₂ in. W x 39¹⁄₈ in. D x 83¹⁄₄ in. H
• 7.8 A, 1500 W
• 208 V/60 Hz/1 ph, 9-ft. cord with a NEMA L14-20P plug

*Free shipping on Traulsen AIH132LP-FHS within the 48 contiguous states.

From The Manufacturer

Spec-Line Heated Cabinet, Roll-thru, one-section, stainless steel exterior, aluminum interior, standard depth cabinet, full-height doors, accepts 66" high racks (by others) with microprocessor controls, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor
